Overview

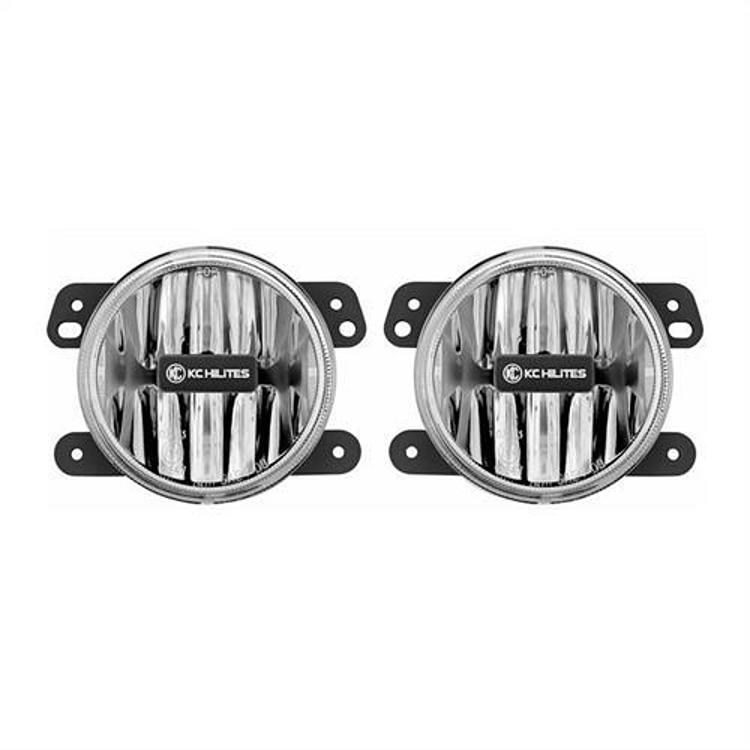

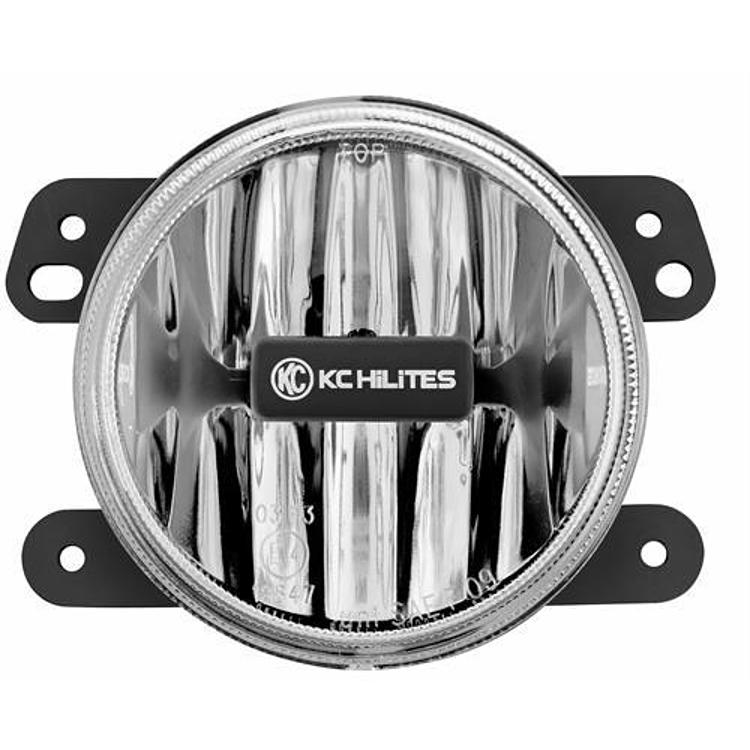

The KC HiLites JK LED Fog Lights Kit, part number 497, is a pair of 4-inch LED fog lights for the Jeep Wrangler JK. The kit is a street legal performance LED fog light system that meets SAE (US) and E-Mark/ECE (Europe) specifications.
Each light puts out 866 lumens from Cree LEDs, using KC’s reflective diode technology. The kit includes the lights and mounting hardware, and it can also be mounted on a truck or SUV.
Key features
- Cree LED, 866 lumens per light
- Reflective diode technology for a controlled fog beam
- IP68 rated
- Lightweight magnesium housing with glass lens
- Street legal under SAE and E-Mark specifications
- Complete install kit for the JK
Fog lights and everyday driving
LED fog lights are chosen for a wide, low beam that lights the road edge in poor weather. Their small heat output means less time spent warming up after cold starts, but road salt and mud still build up on the lens and cut output. Rinse the glass regularly and inspect the seal after washing.

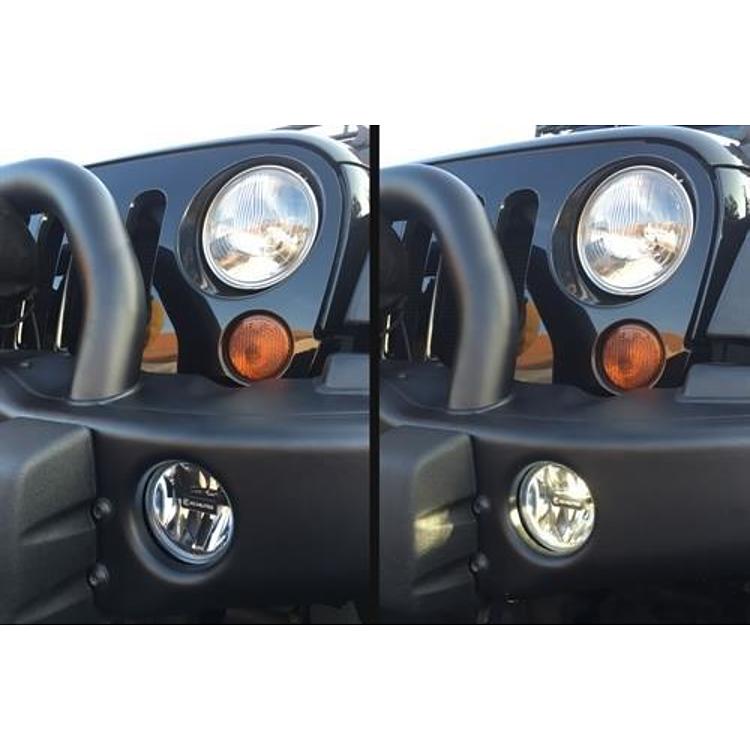

Mounting on a JK also affects the aim. Bumper movement, a new tire size or a lift can change the angle of the beam, so the lights should be checked after any of these changes. Keep the harness clear of moving suspension parts and use a fused relay for the 20W pair, which keeps the load off the switch.
- Inspect the lens seal after washing
- Check aim after any suspension change
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 497 |
| UPC | 84709004972 |
| Size | 4-inch |
| Light type | LED |
| Power | 20W total for the pair |
| Output | 866 lumens per light |
| Housing | Magnesium with glass lens |
| Rating | IP68 |
| Included | Pair of 4-inch LED fog lights and mounting hardware |
Vehicle fitment
This kit is made for the Jeep Wrangler JK.
Trucks and SUVs need their own mounting check, so confirm the mounting for your year, model and trim before ordering.
Installation notes
The kit includes everything needed to mount the lights on a JK. Use a fused relay for the 20W pair, and follow your state’s rules for fog lights on public roads.
What’s included
A pair of 4-inch LED fog lights and the mounting hardware, with everything needed for installation on a JK.
