Overview

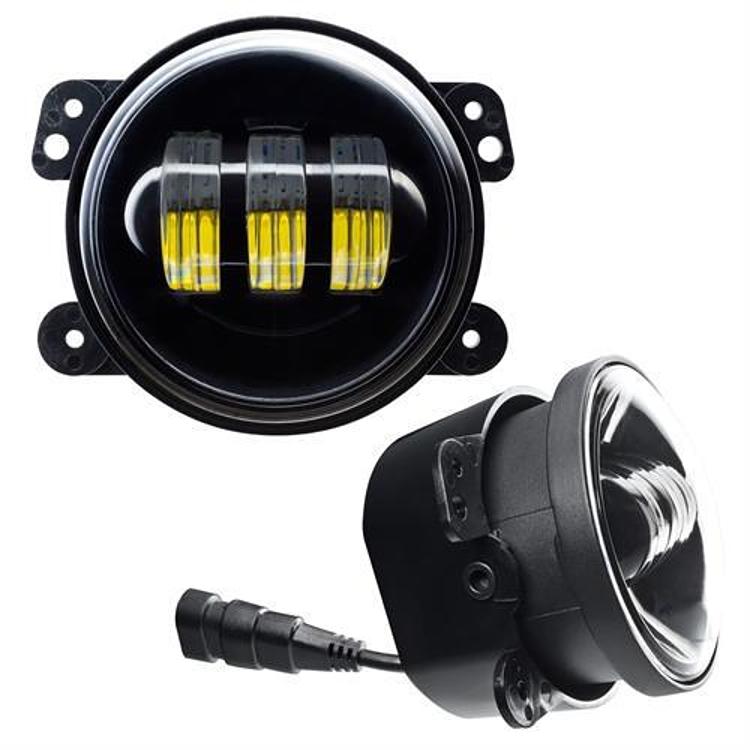

The Oracle Lighting High Powered LED Fog Lights, part number 5775-504, are a complete LED fog light replacement for the 2007-2018 Jeep Wrangler JK, in both 2-door and 4-door models. They are direct-fit units with plug and play wiring and a pre-installed ORACLE halo.
Each light is rated at 30W and approximately 3,000 raw lumens. The fog lights use a polycarbonate lamp housing and solid-state LED electronics, and the epoxy-sealed electronics help resist moisture and corrosion.
Each light uses a rugged polycarbonate lamp housing that withstands impact, plus a solid-state luminaire design for vibration resistance. The light runs on 9 to 36 volts DC, and the halo runs on 12 volts DC with a current draw of 2.0 amps at 12V DC. The housing is rated IP67 and the lens is hard-coated PMMA. The lights suit off-road drivers who want to light new ground on the trail.
Key features
- Replacement fog light housing for the JK
- Pre-installed ORACLE halo
- High-output CREE LEDs at 30W and 3,000 raw lumens
- Die-cast housing with corrosion-resistant coating
- Hard-coated PMMA lens
- Plug and play installation
- IP67 rated
Halo and plug and play wiring
Halo rings are often the first thing drivers notice on a late-model JK, and a halo wired to its own circuit can serve for daytime visibility or as an accent. With a plug and play harness, the main job is confirming that the halo wires and the fog connector match the factory plug before cutting or splicing anything. Keep connectors dry and use dielectric grease on the terminals to slow corrosion.
Choosing between a halo fog light and a plain one usually comes down to mounting and the type of driving. Off-road drivers who rely on the fog beam for low trail work should check the aim after mounting and after any tire or suspension change. Keep the lenses free of mud and salt, and inspect the housing seal each season for cracks or moisture.
- Confirm the connector matches before cutting anything
- Use dielectric grease on terminals
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 5775-504 |
| UPC | 577550420157 |
| Light type | LED |
| Wattage | 30W |
| Raw lumens | 3,000 lm |
| Input voltage (light) | 9-36V DC |
| Input voltage (halo) | 12V DC |
| Current draw | 2.0 amps at 12V DC |
| Dimensions | 120.65 mm wide, 120.65 mm high, 88.9 mm maximum depth |
| IP rating | IP67 |
| Lens | Hard-coated PMMA |
| Finish | Black |
| Bulb adapters | Fits H10, 9145 and 9005, universal adapters included |
Vehicle fitment
These fog lights fit the 2007-2018 Jeep Wrangler JK, in 2-door and 4-door models, because the late-model fog light housing is built for the JK.
They are not for other Wrangler generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The housing is a plug and play replacement, so the fog light wiring connects directly. Check the connector and the halo wiring before mounting the lights.
What’s included
The fog light housings with the pre-installed halo, plug and play wiring, and universal bulb adapters for the H10, 9145 and 9005.
