Overview
The Tuff Country 23010KN is a lift kit with SX8000 shocks for the 2014 Ford F-150. The kit is listed with a 3 inch front lift and a 2 inch rear lift, and Tuff Country lists its lift height range as 3 to 4.99 inches.
The rear uses lift blocks and U-bolts, and the SX8000 shocks are included. It fits the FX4, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT trims of the 2014 F-150.
Tuff Country says its lift kits are engineered for quality and simple installation, and they are backed by a limited lifetime warranty.
Key features
- 3 inch front lift
- 2 inch rear lift
- SX8000 shocks included
- Lift blocks and U-bolts at the rear
- Lift height range of 3 to 4.99 inches
Front and rear lift balance
Different front and rear lift heights are used so a truck can sit level with the load it carries, rather than just being raised evenly. The lift blocks at the rear change the axle position, so the driveline angles should be measured once the truck is set. Front and rear ride heights should be checked against each other after the first drive.
Shock length and bump stop clearance should be checked as the front and rear heights change. Look for uneven tire wear, which often points to a level or alignment problem. Worn ball joints and tie rod ends should be replaced before the front alignment is set.
- Measure ride height at each corner
- Check driveline angles at the rear
- Inspect bump stops for clearance
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 23010KN |
| UPC | 698815028526 |
| Front lift | 3 inch |
| Rear lift | 2 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Spacer |
| Rear lift method | Lift blocks and U-bolts |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 2014 Ford F-150 in the FX4, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT trims.
Other F-150 model years are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 3 inch front and 2 inch rear lift changes the front and rear ride height by different amounts, so check the level of the truck and the alignment after installation. The rear lift blocks change the rear axle position, so check the driveline angles.
What’s included

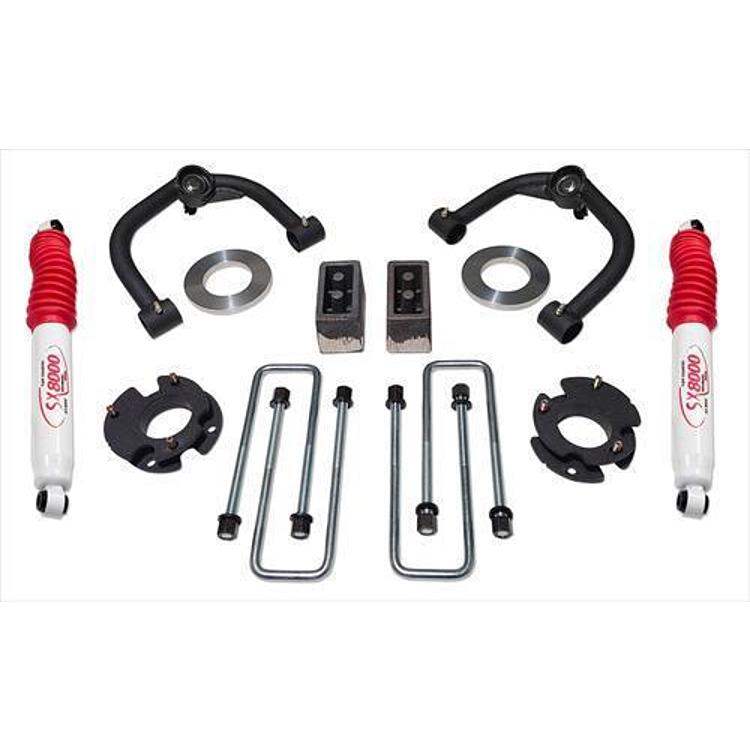

The kit includes SX8000 shocks, rear lift blocks, U-bolts and the parts for the front and rear lift.
