Overview
The Tuff Country 16993KN is a lift kit with SX8000 shocks for the 2001–2010 Chevrolet Silverado 2500 HD and the 2001–2010 GMC Sierra 2500 HD. The kit is listed with a 6 inch front lift and a 4 inch rear lift, and Tuff Country lists its lift height range as 5 to 6.99 inches.
The front of the kit uses an X member, a skid plate, compression arms, a differential relocation bracket, a carrier bearing relocation bracket and a torsion bar relocation bracket. The rear uses lift blocks and U-bolts, and an axle spacer is included.
The kit is designed for quality and simple installation and carries a limited lifetime warranty. It also covers the 2007 Silverado 2500 HD Classic (LS, LT and WT) and the 2007 Sierra 2500 HD Classic (SL, SLE, SLT and WT).
Key features
- SX8000 shocks included
- 6 inch front lift
- 4 inch rear lift
- X member and skid plate
- Compression arms
- Differential, carrier bearing and torsion bar relocation brackets
- Axle spacer and lift blocks
Front axle and driveline work
A front lift on a heavy-duty truck moves the axle relative to the transfer case and the pinion, so the driveshaft angles change in a way that is easy to miss by eye. The carrier bearing and torsion bar brackets set the new mounting points, and they should be installed as supplied so the driveline stays in its intended position.
Vibration at highway speed after a lift usually points to driveline angles, a worn U-joint or an out-of-balance driveshaft. Check the track bar, steering components and the front axle breather line once the kit is in place. Recheck the angles after the first trip with a load.
- Measure pinion and driveshaft angles
- Check U-joints for play
- Inspect the track bar and its bushings
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 16993KN |
| UPC | 698815019685 |
| Front lift | 6 inch |
| Rear lift | 4 inch |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift method | Lift block |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 2001–2010 Chevrolet Silverado 2500 HD (Base, LS, LT, LTZ and WT), the 2007 Silverado 2500 HD Classic (LS, LT and WT), the 2001–2010 GMC Sierra 2500 HD (Base, SL, SLE, SLT and WT) and the 2007 Sierra 2500 HD Classic (SL, SLE, SLT and WT).
Other model years, and the 1500 and 3500 trucks, are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 6 inch front lift changes the steering and driveline geometry, so have the alignment and the pinion and driveshaft angles checked after installation. The relocation brackets move the stock mounting points and should be fitted exactly as supplied.
What’s included

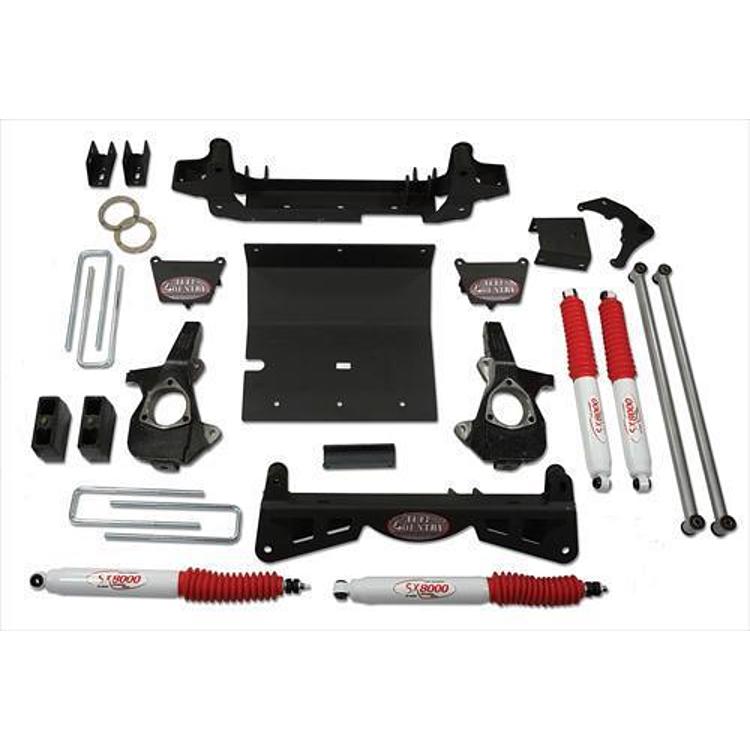

The kit includes SX8000 shocks, an X member, a skid plate, compression arms, a differential relocation bracket, a carrier bearing relocation bracket, a torsion bar relocation bracket, lift blocks, U-bolts and an axle spacer.
