Overview
The Tuff Country 24832K is a 4 inch lift kit for the 1986–1997 Ford F-350 and the 1997 Ford F-250 HD. The kit details give a 4 inch lift and a 3 inch rear lift, and Tuff Country lists its lift height range as 3 to 4.99 inches.
The kit includes front springs, a pitman arm and a track bar bracket, along with a sway bar end link. At the rear it uses blocks, an add-a-leaf and U-bolts, and a brake line extension is included. Shocks are not included.
The brand has engineered its lift kits for quality and simple installation, and it backs them with a limited lifetime warranty. The fitment covers the Base, Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat F-350 trims and the XL and XLT F-250 HD trims.
Key features
- 4 inch lift
- 3 inch rear lift
- Front springs
- Pitman arm and track bar bracket
- Sway bar end link
- Blocks, add-a-leaf and U-bolts
- Brake line extension included
Steering and brake checks
The pitman arm and track bar bracket change steering geometry, so the steering box, drag link and tie rods see a different angle than stock. Look for play in the steering wheel, uneven tire wear and wandering on the highway after installation, since these often point to a geometry or alignment issue rather than a worn part.
Brake lines usually need attention after a lift. A brake line extension should be routed without tight bends or contact with the frame or suspension, and the flex hoses should have room to move through the full suspension travel. Inspect the lines at each oil change and replace any that show cracks, chafing or leaks.
- Drag link and tie rod ends for play
- Track bar bushings for wear
- Brake line routing and clearance
- Alignment after the first week of driving
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 24832K |
| UPC | 698815033803 |
| Lift | 4 inch, with a 3 inch rear lift |
| Lift height range | 3 to 4.99 inches |
| Rear lift method | Blocks, add-a-leaf and U-bolts |
| Shocks | Not included |
Vehicle fitment
It fits the 1997 Ford F-250 HD (XL and XLT) and the 1986–1997 Ford F-350 (Base, Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat).
Ford trucks outside those years and models, including the F-250 Super Duty, are not covered. Match your truck’s year, model and trim to this kit before ordering.
Installation notes
The pitman arm and track bar bracket change the steering and track bar geometry, so the alignment and steering should be checked after installation. Check the brake line length after the brake line extension is fitted.
What’s included

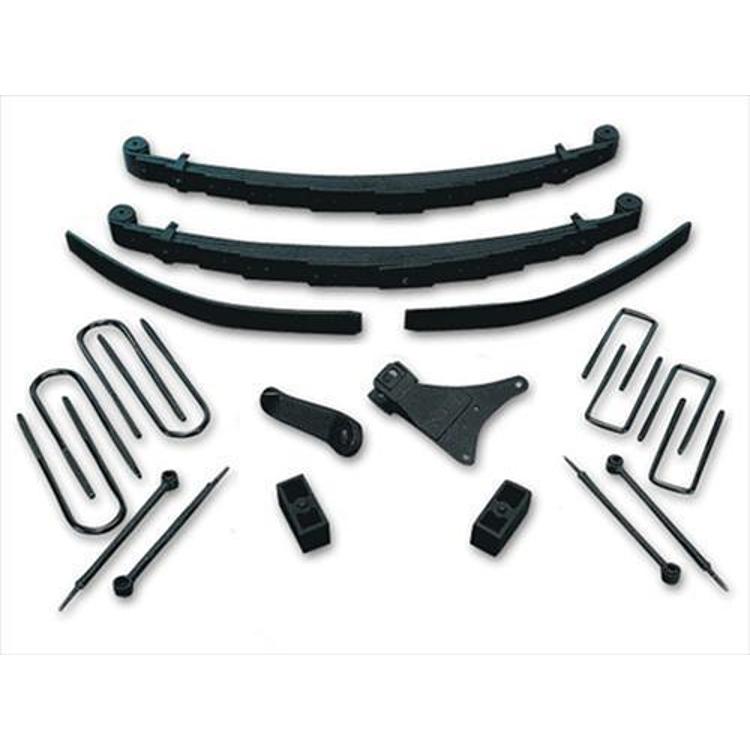

The kit includes front springs, a pitman arm, a track bar bracket, a sway bar end link, blocks, an add-a-leaf, U-bolts and a brake line extension.
Not included: Shocks.
