Overview

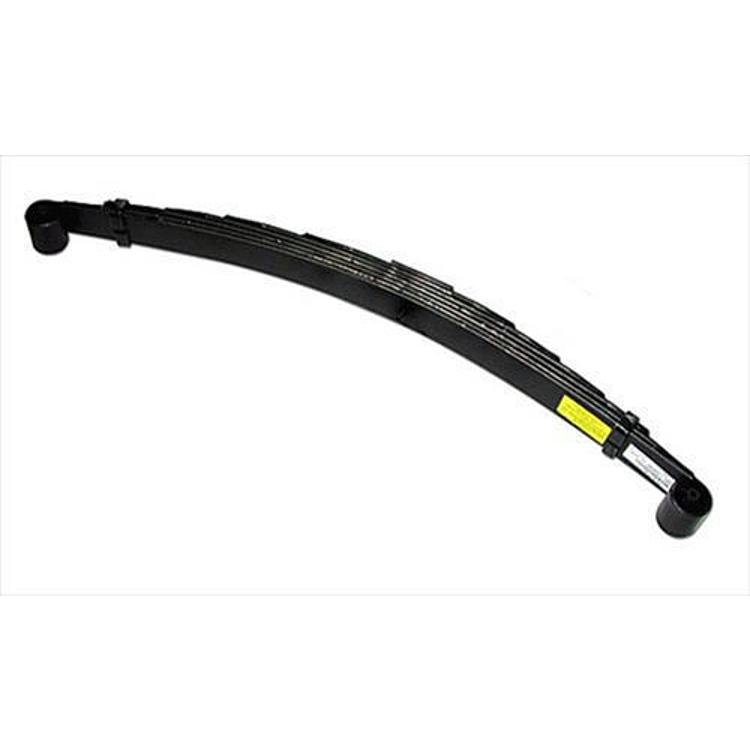

The Tuff Country 28484 is a front leaf spring for a 4 inch lift, with bushings included. It fits the 1997 Ford F-250 HD in XL and XLT trims and 1986-1997 Ford F-350 trucks in Base, Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat trims.
Each spring is sold individually, and the application needs two. The lift height range is 0 to 4.99 inches.
Key features
- 4 inch lift front leaf spring
- Polyurethane bushings included
- Lift height range: 0 to 4.99 inches
- It is a direct fit for the vehicles named above.
Choosing a lift height
Spring lift is only part of the front end setup. A taller front spring changes the angle of the driveshaft and steering components, so the rest of the suspension has to be matched to the new ride height. Shock length, brake hose length and steering geometry are the parts most often checked after a front lift.
Many owners replace the front shocks at the same time so damping stays matched to the new height. After installation, drive a short distance and re-check the U-bolts and hanger bolts, since fasteners can settle during the first few trips. A professional alignment helps the truck track straight once the new springs are seated.
- Match shock length to the new ride height
- Check brake hose length after the lift
- Re-check alignment once the truck is settled
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 28484 |
| UPC | 700000498966 |
| Position | Front |
| Spring quantity | Single spring, sold individually (2 required) |
| Lift | 4 inch |
| Lift height range | 0 to 4.99 inches |
| Bushings | Polyurethane, included |
Vehicle fitment
The manufacturer list covers the 1997 Ford F-250 HD with XL and XLT trims, and 1986-1997 Ford F-350 models with Base, Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat trims.
Other F-250 model years are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
One front leaf spring with bushings included per unit. Two are required.
