Overview

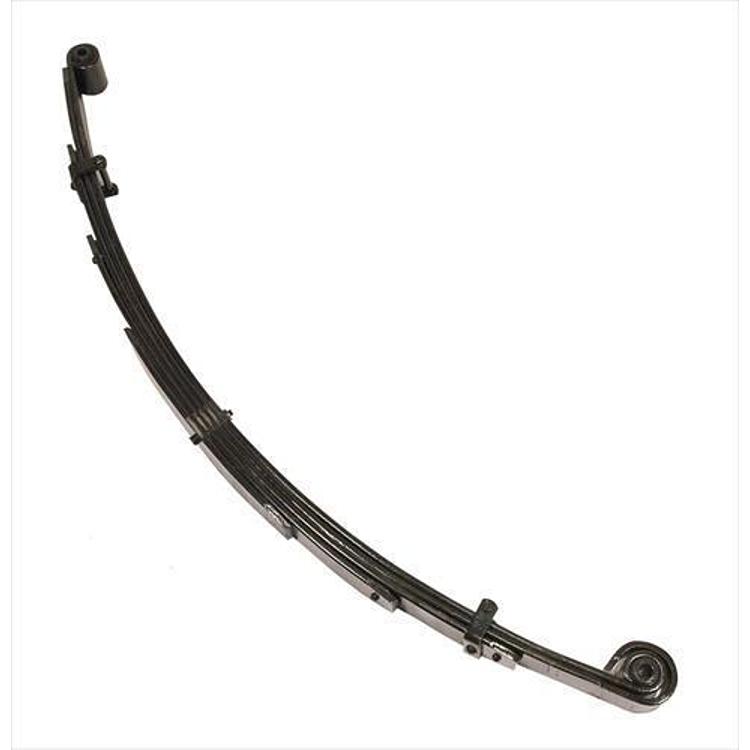

The Tuff Country 28690 is a front leaf spring for a 5 inch lift, with bushings included. It fits 2000-2004 Ford F-250 Super Duty and F-350 Super Duty trucks in Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.
The lift height range is 5 to 6.99 inches. Two springs are required, and they are sold individually.
Key features
- 5 inch lift front leaf spring
- Polyurethane bushings included
- Lift height range: 5 to 6.99 inches
- It is a direct fit for the Super Duty trucks named above.
Working safely on Super Duty springs
Front springs on a Super Duty truck carry a large share of the front axle weight, so the work area needs care. Use a floor jack under the axle and set stands under the frame before any bolt is loosened. Keep hands clear of the spring while the shackle or hanger is being separated, since the spring can shift suddenly.
Clean the threads and mating surfaces before reassembly, and use fresh hardware where the old bolts show corrosion. Polyurethane bushings are firm and seat well into the mounts, so tap them in squarely rather than forcing the spring into place. Check that the brake lines and wheel speed sensor wiring have room to move through full suspension travel.
- Support the axle on stands before removal
- Replace corroded hardware
- Check brake lines and sensor wiring for clearance
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 28690 |
| UPC | 70000400837 |
| Position | Front |
| Spring quantity | Single spring, sold individually (2 required) |
| Lift | 5 inch |
| Lift height range | 5 to 6.99 inches |
| Bushings | Polyurethane, included |
Vehicle fitment
The manufacturer list covers 2000-2004 Ford F-250 Super Duty and 2000-2004 Ford F-350 Super Duty models, each with Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.
Non-Super Duty F-250 and F-350 models and later model years are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Support the front axle on stands before removing either spring from a Super Duty truck.
What’s included
One front leaf spring with polyurethane bushings per unit. Two are required.
