Overview
The Tuff Country 24977 is a 4-inch front lift kit. It includes replacement radius arms and coil springs, with rear blocks and U-bolts for the rear.
Compare your truck’s year, model and trim against the kit before buying.
Key features
- 4-inch front lift
- Performance replacement radius arms

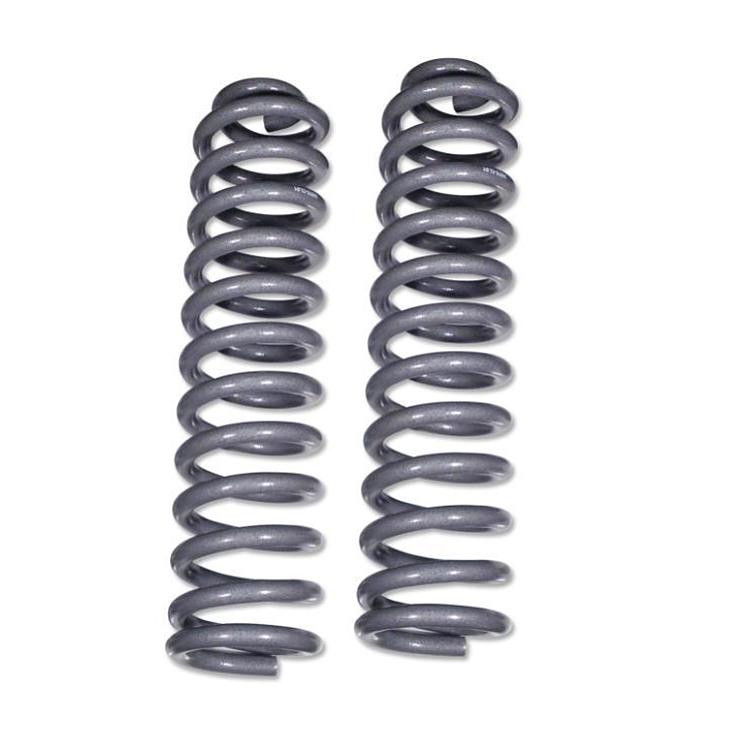

- Coil springs included
- Rear blocks and U-bolts included
Front axle geometry after a lift
A front lift that uses replacement radius arms and coil springs changes the axle position and the angle of the drive components. The radius arms control how the axle moves under braking and acceleration, so their mounting angle matters for both ride and driveline health. After installation, the front driveshaft angle, the brake lines and the steering components should be checked for stretch or binding.
Rear blocks and U-bolts set the rear height to match the front, which keeps the vehicle level and the wheel positions consistent. Uneven rear height can change how the front and rear share load, so measure both ends once everything is torqued. Re-check fasteners after the first few trips, especially on rough roads.
- Check driveshaft angles after installation
- Re-torque radius arm and U-bolt fasteners after the first trips
- Recheck brake lines and steering components for stretch
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 24977 |
| UPC | 698815249778 |
| Lift height | 4 inches |
| Lift location | Front |
| Front lift method | Coil springs with replacement radius arms |
| Rear lift method | Rear blocks and U-bolts |
Vehicle fitment
Check the 4-inch lift against your truck’s year and model before ordering.
What’s included
The kit includes replacement radius arms, coil springs, rear blocks and U-bolts.
