Overview
The Belltech 3925 is a torsion bar key lift that adjusts the front height from 1 to 3 inches on torsion bar independent front suspension trucks and SUVs. It is for the 1999–2006 Chevrolet Silverado 1500, GMC Sierra 1500, Chevrolet Tahoe and GMC Yukon. The kit also covers the Cadillac Escalade and Escalade ESV, the Escalade EXT, the Chevrolet Avalanche and Suburban, and the GMC Yukon XL.
The keys offer a direct way to level the front end and allow larger wheel and tire combinations. The installation takes 2 to 3 hours plus alignment, and extended length shocks are recommended.
Key features
- 1 to 3-inch adjustable front height
- Direct bolt-in with no additional modifications listed
- Maximum tire size of 33 inches
- Maximum wheel backspacing of 5.5 inches
- Installation instructions included
Choosing a key lift
Torsion bar keys change the height of the front suspension by repositioning the torsion bars, so the lift is set by the key position rather than by new springs. A key lift does not change the rest of the suspension, which means the shocks, tires and steering geometry still need attention. Choose tires within the stated maximum and check wheel backspacing before mounting new wheels.
Because the front height changes, the alignment, steering angles and front-end wear items should be checked after installation. Extended length shocks help match shock travel to the new height. Owners who run larger tires often check the steering stops, since these can be affected by a change in ride height. Inspect the torsion bar keys, bolts and mounting hardware at regular intervals.
- Shock length for the new ride height
- Tire size against the maximum
- Wheel backspacing before mounting
- Front alignment after the lift
Specifications
| Brand | Belltech |
|---|---|
| Part number | 3925 |
| Type | Torsion bar key lift |
| Adjustable lift | 1 to 3 inches |
| Maximum tire size | 33 inches |
| Maximum wheel backspacing | 5.5 inches |
| Installation time | 2 to 3 hours, plus alignment |
| Fitment type | Direct fit |
Vehicle fitment
The kit fits the 2002–2006 Cadillac Escalade, the 2003–2006 Cadillac Escalade ESV and the 2002–2006 Cadillac Escalade EXT, all in the Base trim; the 2002–2006 Chevrolet Avalanche 1500; the 1999–2006 Chevrolet Silverado 1500; the 2000–2006 Chevrolet Suburban 1500; the 1999–2006 Chevrolet Tahoe; the 1999–2006 GMC Sierra 1500; the 1999–2006 GMC Yukon; and the 2000–2006 GMC Yukon XL 1500.
The list does not cover the 2007 and later models or the 1998 and earlier trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Belltech gives an installation time of 2 to 3 hours plus alignment. Extended length shocks are recommended, and the alignment should be checked afterward.
What’s included

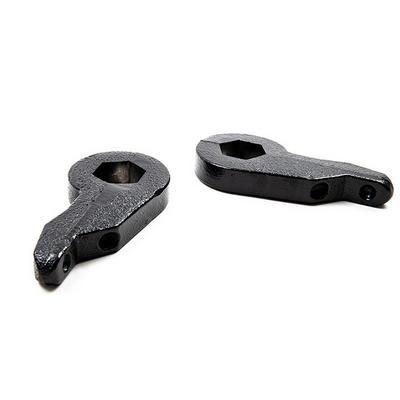

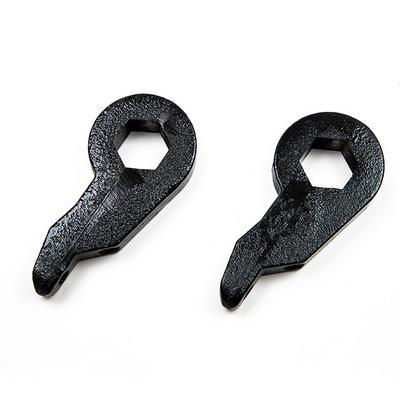

Torsion bar keys and installation instructions.
