Trail Gear Hydro Assist Brackets – 130054-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear hydraulic steering ram mounting brackets, part 130054-1-KIT
  • Brackets have a 5/8-inch bolt hole and are formed from 3/16-inch steel
  • Designed for a 1.25-inch tie rod on a Toyota solid front axle
  • Welding required for installation

Description

Overview

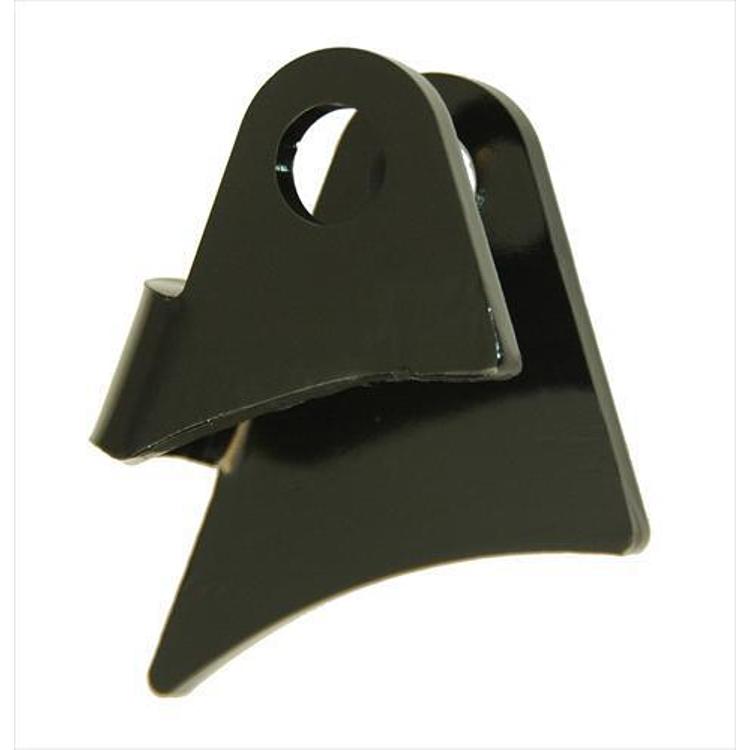

The Trail Gear 130054-1-KIT is a set of hydraulic steering ram mounting brackets for Toyota solid front axles. It fits the 1984–1995 Toyota 4Runner (DLX, SR5) and the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo).

The brackets have a 5/8-inch bolt hole and are formed from 3/16-inch steel. Trail Gear designed them to fit a factory Toyota solid axle front housing or a Trail Gear Rock Assault axle housing, along with a 1.25-inch tie rod.

Key features

  • 5/8-inch bolt hole for the ram mount
  • Formed from 3/16-inch steel
  • Designed for a factory Toyota solid axle front housing
  • Designed for a Trail Gear Rock Assault axle housing
  • Fits a 1.25-inch tie rod

Welding and axle preparation

Welded mounts put the ram’s load straight into the axle housing, so the surface needs to be clean and sound before welding. Remove paint, rust and grease from the contact area, and confirm the housing is in good condition. Welding an axle housing is best left to someone experienced with the material and joint design.

Check tie rod clearance and steering geometry after the brackets are fitted. The 1.25-inch tie rod must sit clear of the brackets and the ram through full steering travel. Once the ram is mounted, cycle the steering slowly and confirm nothing rubs or binds before driving.

  • Clean the housing and bracket surfaces before welding
  • Check the weld beads for cracks after the first drives
  • Confirm tie rod and ram clearance through full steering travel

Specifications

Brand Trail Gear
Part number 130054-1-KIT
UPC 70000621471
Bolt hole 5/8-inch
Bracket steel 3/16-inch
Tie rod size 1.25-inch
Compatible housings Factory Toyota solid axle front housing; Trail Gear Rock Assault axle housing
Installation Welding required

Vehicle fitment

The manufacturer fitment list names the 1984–1995 Toyota 4Runner (DLX, SR5) and the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo).

Years outside 1979 through 1995 fall outside this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires welding, so these brackets are not a simple bolt-on part. Plan for that step before the ram is fitted.

What’s included

Hydraulic steering ram mounting brackets with 5/8-inch bolt holes, formed from 3/16-inch steel.

Not included: The steering ram and hydraulic pump are not included.

SKU: TGI130054-1-KIT Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 7.50 × 7.50 × 3.50 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1995DLX, SR5
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do these brackets need welding?

Yes. Installation requires welding, so the brackets are not a simple bolt-on part. Plan for that step before the ram is fitted.

What tie rod size do the brackets fit?

The brackets are designed for a 1.25-inch tie rod. Trail Gear designed them to fit a factory Toyota solid axle front housing or a Trail Gear Rock Assault axle housing.

Which vehicles fit part 130054-1-KIT?

The manufacturer fitment list names the 1984–1995 Toyota 4Runner (DLX, SR5) and the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo). Confirm your vehicle's year, model and trim before ordering.

How should welded ram mounts be inspected over time?

Check the weld beads for cracks, rust lines or lifting at the edges after the first few drives and periodically afterward. Look for bending in the brackets and looseness at the ram bolts. Any movement at a weld means the joint needs repair before the ram is used again.
