Overview

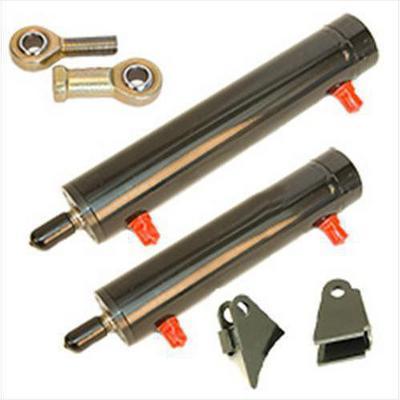

The Trail Gear 130276-1-KIT is a set of hydro assist axle housing brackets that mount a hydraulic steering ram to the axle housing. They fit the 1979-1995 Toyota Pickup and 1985-1995 Toyota 4Runner and are made for a 2 inch ram.
Trail Gear forms the brackets from 3/16in. steel with a 5/8in. bolt hole. The brackets are designed to fit a factory Toyota solid axle front housing or a Trail Gear Rock Assault axle housing together with a 1.25in. tie rod.
Key features
- Mounts a hydraulic steering ram to the axle housing
- Formed from 3/16in. steel
- 5/8in. bolt hole
- Fits a factory Toyota solid axle front housing or a Trail Gear Rock Assault housing
- Designed for a 1.25in. tie rod
Hydraulic steering assist basics
A hydro assist adds a hydraulic ram that works alongside the steering linkage to reduce the force needed to turn the wheels on rough ground. The ram takes load off the tie rod and steering arms, which helps when tires are large or the trail is uneven. Mounting points matter most, since the bracket has to hold the ram steady against the axle housing and keep the ram in line with the tie rod through full travel.
The ram, its fittings, the hydraulic pump and the hoses are separate from these brackets and need to be matched to the system. Check for leaks at every fitting after installation, and look over the brackets for cracks or loose bolts after rough trail use. A sound front end usually comes first, because assist can only do its job when the linkage underneath is in good shape.
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 130276-1-KIT |
| Ram size | 2 inch |
| Bracket material | 3/16in. steel |
| Bolt hole | 5/8in. |
| Tie rod size | 1.25in. |
| Fit type | Direct fit |
Vehicle fitment
Trail Gear lists these brackets for the 1985-1995 Toyota 4Runner and the 1979-1995 Toyota Pickup, on a factory Toyota solid front axle or Trail Gear Rock Assault housing.
Independent front suspension trucks do not have the solid axle housing these brackets mount to. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Hydro assist axle housing brackets
Not included: the hydraulic ram.
