Overview
The Trail Gear 130052-1-KIT Fully Loaded Six Shooter Knuckle Kit includes two knuckles, two steering arms and shims. It is built for 1984–1995 Toyota 4Runner (DLX, SR5) and 1979–1995 Toyota Pickup models.

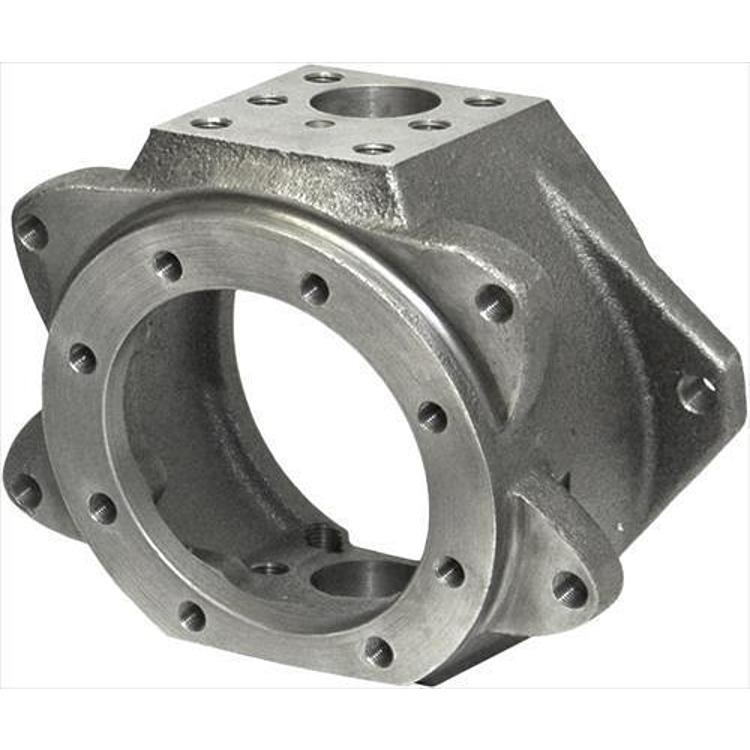

The kit targets the usual failure points of a stock knuckle. Each arm carries two studs, the knuckle housing is thicker than stock, and larger gussets are added around the outside of each knuckle. The knuckles are precision machined for a direct bolt-on installation and are built as heavy duty replacements.
Key features
- Two studs in each steering arm
- Thicker knuckle housing than stock
- Larger gussets around the outside of the knuckle
- Precision machined knuckles
- Direct bolt on design
- High steer and cross over steering compatible
Steering geometry and wear
Steering knuckles carry the load of the front wheels at the point where the steering arm pivots, so they see constant stress on rough trails. Wear usually shows first as play in the steering arm, uneven tire wear, or a wheel that wanders on the highway. Inspect the knuckle housing, studs and arm mounts whenever the front end is apart.
When a knuckle and arm are replaced together, the front geometry changes. Caster, toe and steering angle can all shift, so an alignment after installation is part of the job. Check that the wheels turn fully left and right without the tires contacting the frame or linkage.
- Check stud threads and nut torque after the first trail runs
- Look for cracks around the knuckle gussets
- Grease the kingpin or ball joints as your service procedure directs
- Replace worn tie rod ends at the same time
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 130052-1-KIT |
| UPC | 70000621506 |
| Included | Two knuckles, two steering arms, shims |
| Studs per steering arm | 2 |
| Replacement type | Modified replacement |
| High steer compatible | Yes |
| Cross over steering compatible | Yes |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 1984–1995 Toyota 4Runner (DLX, SR5) and 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo) models.
Other Toyota years and models fall outside this fit, and the Pickup trims covered run from Base through SR5 Turbo. Verify your truck’s year, model and trim before ordering.
Installation notes
Shims are included, so expect to check their placement during assembly. Replacing knuckles and steering arms changes steering geometry, so have the alignment checked afterward.
What’s included

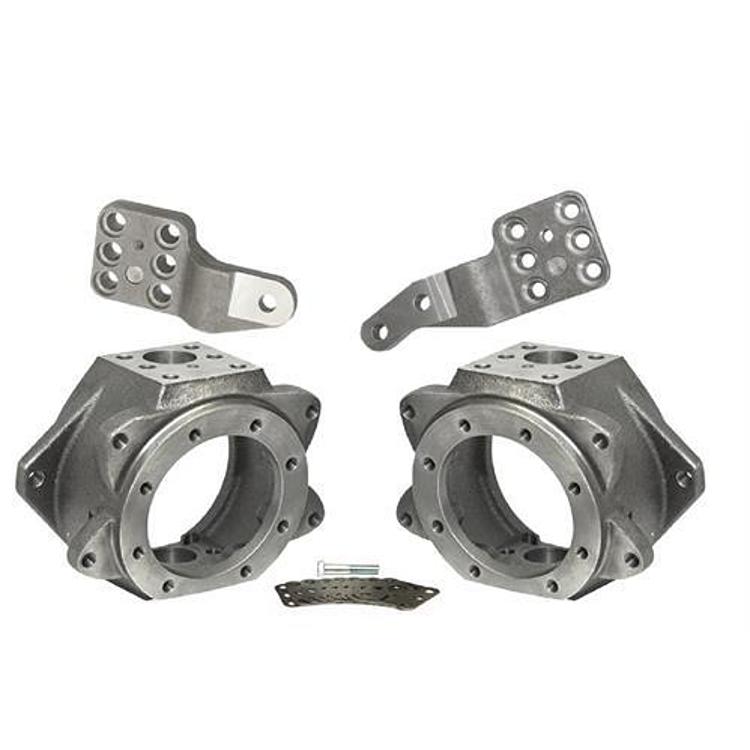

Two knuckles, two steering arms and shims are included.
