Overview

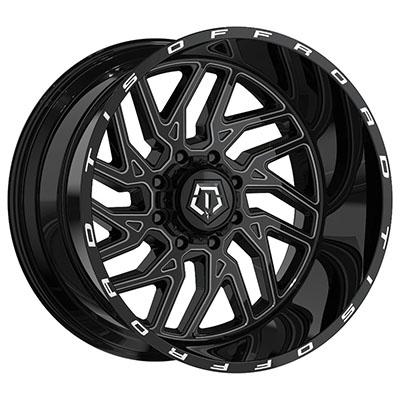

The TIS Offroad 544BM Series 20×10 wheel, part number TIS544BM-2108125, is an aluminum directional wheel with an 8 on 6.5 bolt pattern and a Black/Milled finish. It is made for off-road vehicles that need a styled wheel with a 20-inch diameter.
An offset of -25 and backspacing of 4.52 determine how far the wheel face sits relative to the hub and how much clearance it needs behind the mounting surface. Measure your hub before mounting this wheel.
Key features
- 20-inch diameter and 10-inch width
- 8 on 6.5 bolt pattern
- Directional style
- Black/Milled finish
- Aluminum construction
- Part of the 544 Series
Mounting a directional wheel
A directional wheel is built to rotate one way, and the tread pattern on the tire has to match that direction. Mount the tire so its rotation arrow matches the wheel’s direction on each side of the vehicle. Mismatched tires on a directional wheel can cause noise and weaker wet grip, so confirm the arrow before the bead is seated.
Have the assembly balanced after mounting, since an unbalanced wheel can cause vibration at speed and uneven wear. Re-check lug nut torque after the first few drives, and inspect the wheel after hard impacts. Milled finishes can show scuffs from tire tools, so ask the tire shop to protect the lip during mounting.
- Confirm the rotation arrow before mounting
- Balance the wheel and tire assembly
- Protect the milled finish during mounting
Specifications
| Brand | TIS Offroad |
|---|---|
| Part number | TIS544BM-2108125 |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Offset | -25 |
| Center bore | 125.2 |
| Backspacing | 4.52 |
| Style | Directional |
| Finish | Black/Milled |
| Construction | Aluminum |
| Series | 544 |
Vehicle fitment
No vehicle is named for this wheel. The manufacturer data carries only a Universal Fit label, which does not confirm a match to a particular truck or SUV, so check the 8 on 6.5 bolt pattern, offset -25, center bore 125.2 and backspacing 4.52 against your vehicle’s specifications.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Tires, lug nuts and center caps are not included with the wheel. Plan to buy them separately if your setup needs them.
