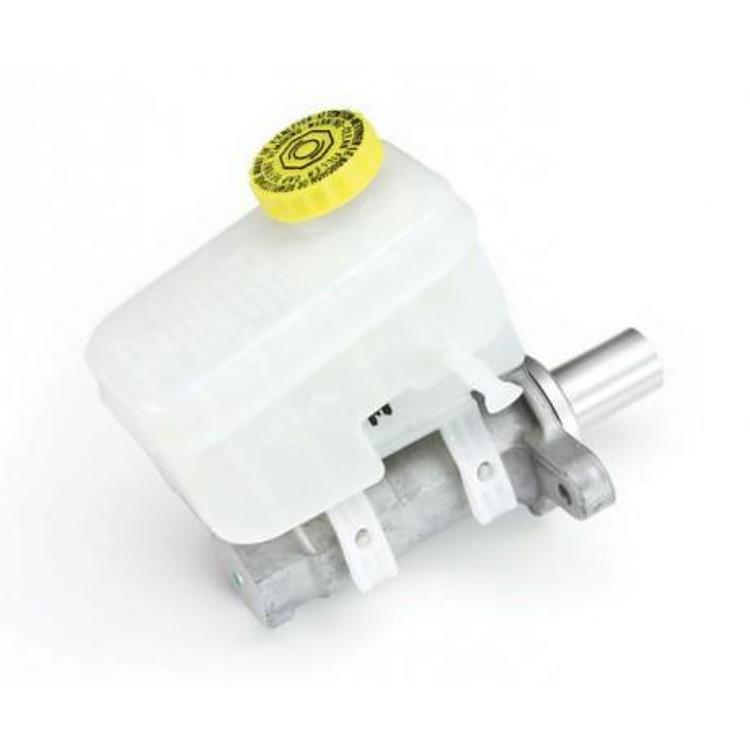

TeraFlex Brake Master Cylinder with Oversized Bore – 4303450

TeraFlex

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Oversized-bore master cylinder for the 2007–2015 Jeep Wrangler (JK)
  • 14% more flow than stock
  • Eliminates a soft pedal
  • Works with the TeraFlex Big Brake Kit TER4303400

Description

Overview

The TeraFlex 4303450 is a brake master cylinder with an oversized bore for the 2007-2015 Jeep Wrangler JK. The larger bore provides 14% more flow, which firms up the pedal. It replaces the stock master cylinder on two-door and four-door models.

It pairs with the TeraFlex Big Brake kit (TER4303400) and is a recommended upgrade on all JKs. It may be needed on Jeeps with an overly soft pedal.

Key features

  • Oversized bore with 14% more flow
  • Eliminates a soft pedal
  • Replaces the stock master cylinder
  • Matched to the TeraFlex Big Brake Kit TER4303400
  • For 2 and 4-door models

Pedal feel and brake system

The master cylinder is the hydraulic heart of the brake system. Its job is to turn pedal force into fluid pressure for all four wheels, so a weak or leaking cylinder shows up as a soft pedal, longer stopping distances or fluid loss. Before replacing it, check the fluid level, the brake lines and the booster, since a problem elsewhere can feel like a bad cylinder.

When the cylinder is replaced, the system must be bled to remove air, and the new unit should be mounted square to the booster to avoid stress on the fittings. Use the fluid type called for on the reservoir cap and avoid mixing fluid types. After the first few drives, check the pedal feel, look for seepage at each fitting and recheck the mounting bolts.

  • Look for fluid staining on the firewall
  • Check the reservoir level after bedding brakes
  • Keep the brake lines clear of heat and moving parts

Specifications

Brand TeraFlex
Part number 4303450
UPC 843885003076
Part type Brake master cylinder
Flow 14% more than stock
Type Upgrade
Fit style Direct fit
Brake configuration Disc/disc
Body styles 2 and 4-door models

Vehicle fitment

It fits the 2007-2015 Jeep Wrangler (JK) in two-door and Unlimited four-door versions.

The 2016-2018 JK years are not covered, and TJ and JL Wranglers are different vehicles. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

TeraFlex pairs this master cylinder with its Big Brake Kit, since a softer pedal may appear after the larger brakes are fitted.

SKU: TER4303450 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 11.00 × 7.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201570th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Why would a Wrangler JK need a TeraFlex 4303450 master cylinder?

The oversized bore gives 14% more flow and helps firm up a soft pedal. It is recommended with the Big Brake kit and may be needed on Jeeps with an overly soft pedal.

Does the 4303450 work with the TeraFlex Big Brake Kit?

Yes. It works with the TeraFlex Big Brake Kit, part number TER4303400, and is recommended to firm the pedal after that kit is installed.

Which Wranglers does the 4303450 fit?

It fits the 2007-2015 Jeep Wrangler (JK) in two-door and four-door models. Other Wrangler generations, including the TJ and JL, are not covered.

How can I tell if the master cylinder is failing?

Common signs include a pedal that sinks slowly under steady pressure, a soft or spongy feel, and fluid leaks at the reservoir or fittings. Check the fluid level often and inspect the cylinder body for seepage.
