  • Smittybilt zinc plated receiver D-ring mount, part number 29312
  • Fits any 2 inch receiver
  • Rated up to 10,000 lbs pulling capacity on straight pulls

Description

Overview

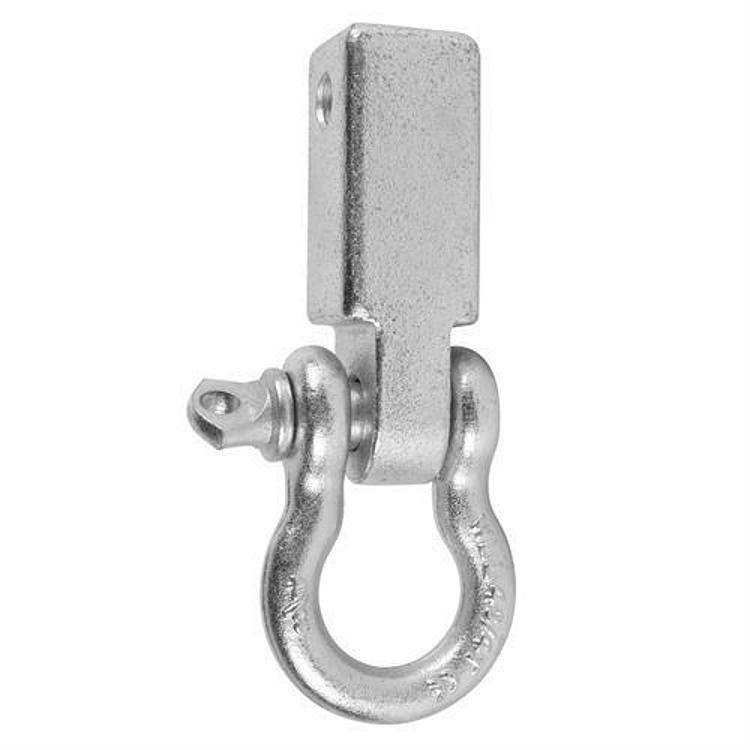

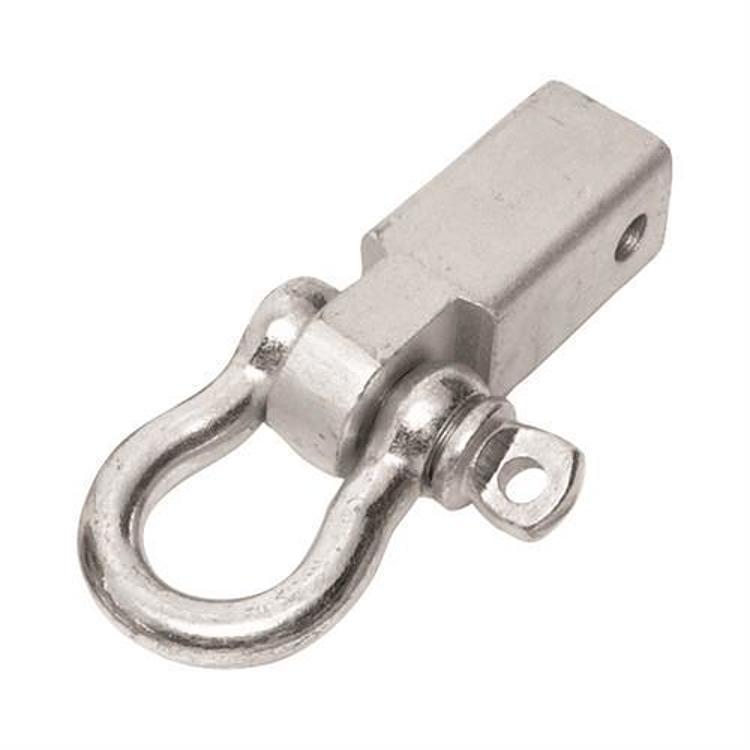

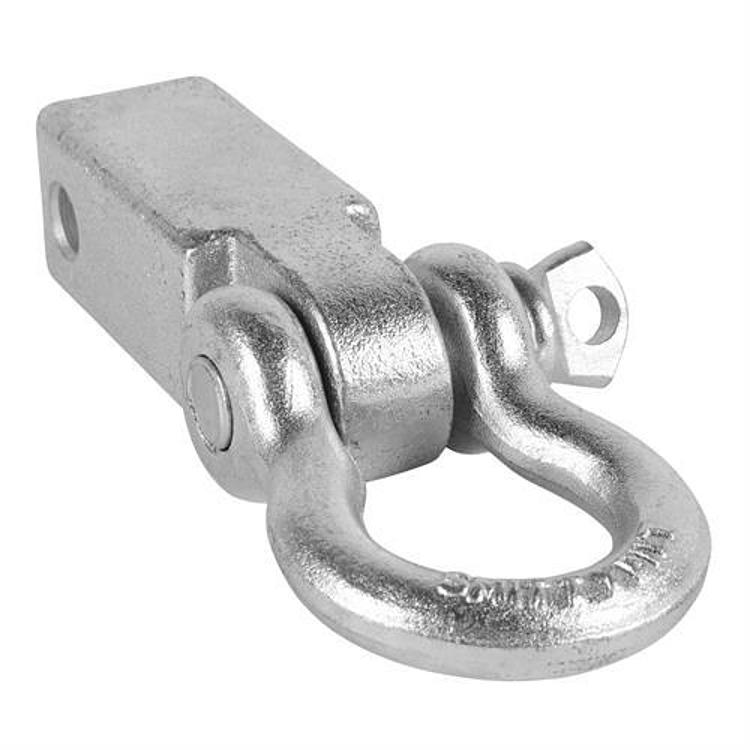

The Smittybilt receiver D-ring mount, part number 29312, is a heavy-duty D-ring that fits into any 2 inch receiver. It gives a rigging point for recovery and towing, and it is rated up to 10,000 lbs of pulling capacity on straight pulls.

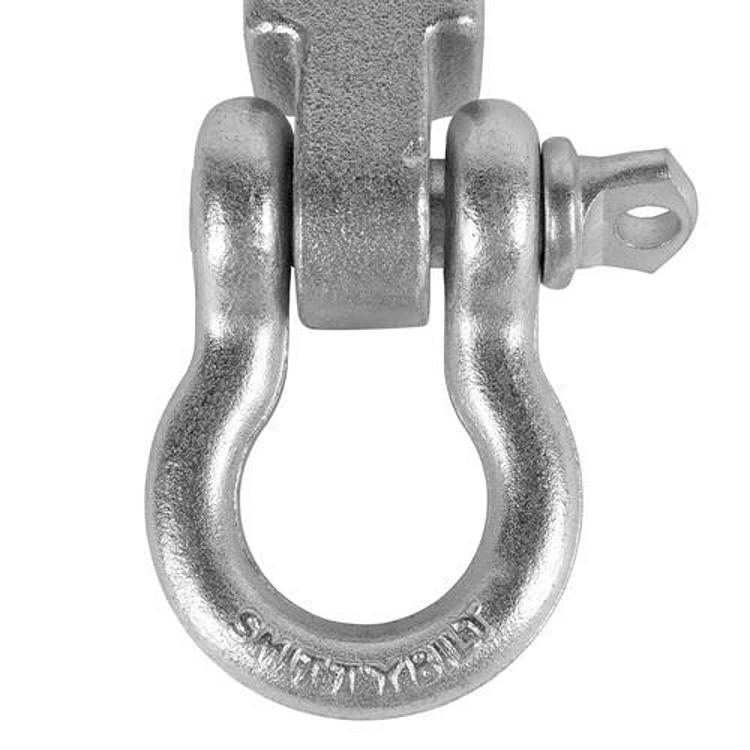

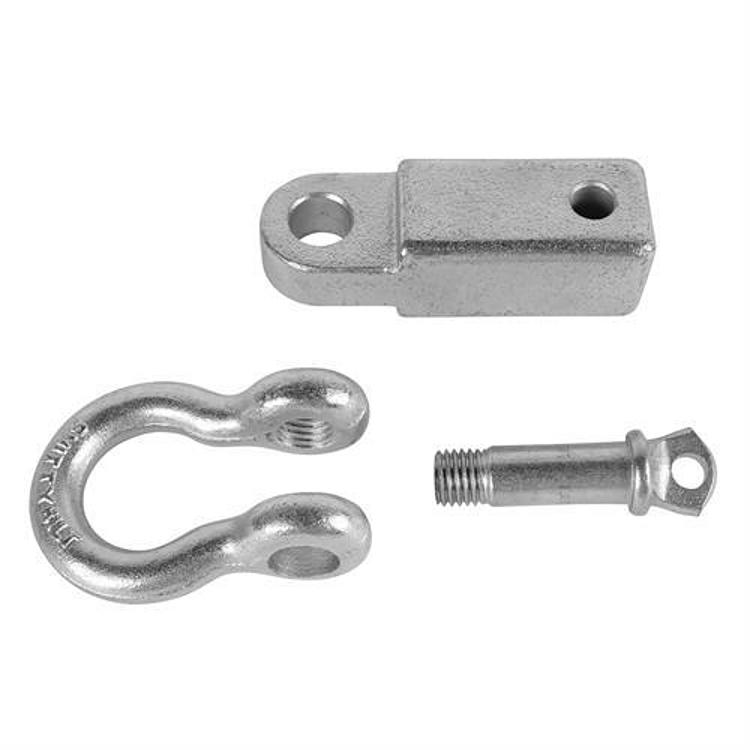

The D-ring is zinc coated cast steel and has a 3/4 inch pin. It is a receiver mounted rigging point.

Key features

  • Fits any 2 inch receiver
  • Rated up to 10,000 lbs on straight pulls
  • Zinc coated cast steel
  • 3/4 inch pin

Rigging a receiver D-ring

A receiver-mounted D-ring gives a recovery strap or shackle a fixed point at the rear of the vehicle. The hitch and receiver carry the load, so the connection is only as strong as the receiver tube, the pin, and the way the D-ring is seated. Pull straight when possible, since side loads and angled pulls put stress on the mount in ways the straight rating does not cover.

Before a recovery, check that the pin is fully inserted and secured with its clip, and that the D-ring rotates freely without binding. Use a rated shackle or strap with a capacity suited to the load, and avoid stacking hardware in ways that add shock. A slow, steady pull reduces the chance of a sudden load on the mount.

  • Seat the pin fully before each pull
  • Look for bending or cracks in the cast steel
  • Avoid jerking loads
  • Store the D-ring clean and dry between uses

Specifications

Brand Smittybilt
Part number 29312
UPC 631410082296
Product type Receiver mounted D-ring
Receiver size 2 inch
Pulling capacity Up to 10,000 lbs on straight pulls
Material Zinc coated cast steel
Pin 3/4 inch

Vehicle fitment

This mount is not tied to a specific vehicle. It fits any 2 inch receiver, so confirm your vehicle has a 2 inch receiver before buying.

Confirm the receiver size and pulling rating against your recovery setup before ordering.

SKU: S/B29312 Category:

Specification

Shipping weight 8.10 lbs
Package dimensions 9.30 × 4.50 × 2.40 in
brands

Questions & Answers

What pulling capacity is it rated for?

It is rated up to 10,000 lbs of pulling capacity on straight pulls. The rating does not apply to angled pulls, so plan the recovery with that in mind.

Which receiver does it fit?

It fits any 2 inch receiver, the standard receiver size for this D-ring mount. Measure your receiver before ordering to confirm the match.

What is the D-ring made of?

It is zinc coated cast steel with a 3/4 inch pin. The zinc coating helps protect it from rust in an outdoor receiver.

Should the D-ring be inspected after recovery use?

Yes. Check the pin, the eye, and the receiver connection for bending, cracks, or wear after each recovery. Replace any part that shows damage before using it again.
