Overview

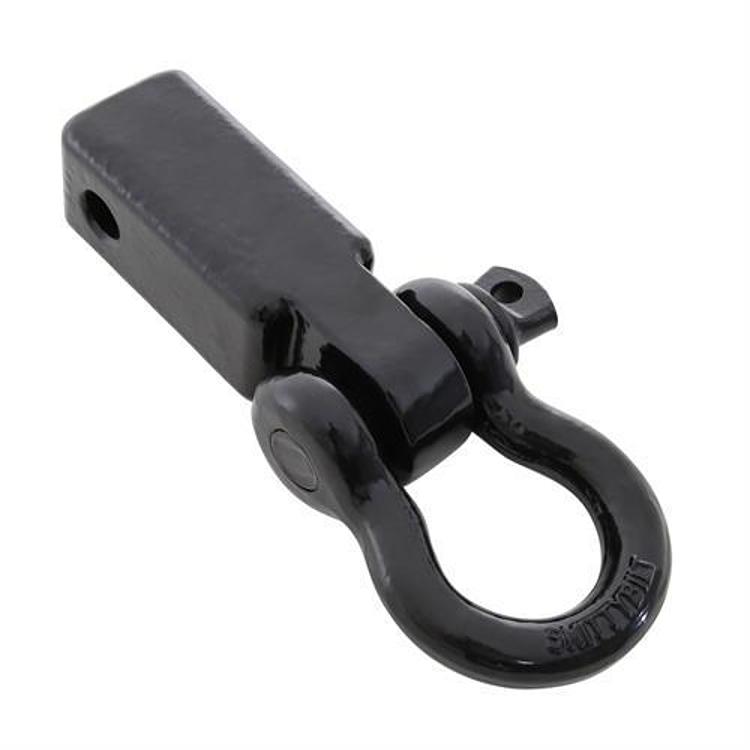

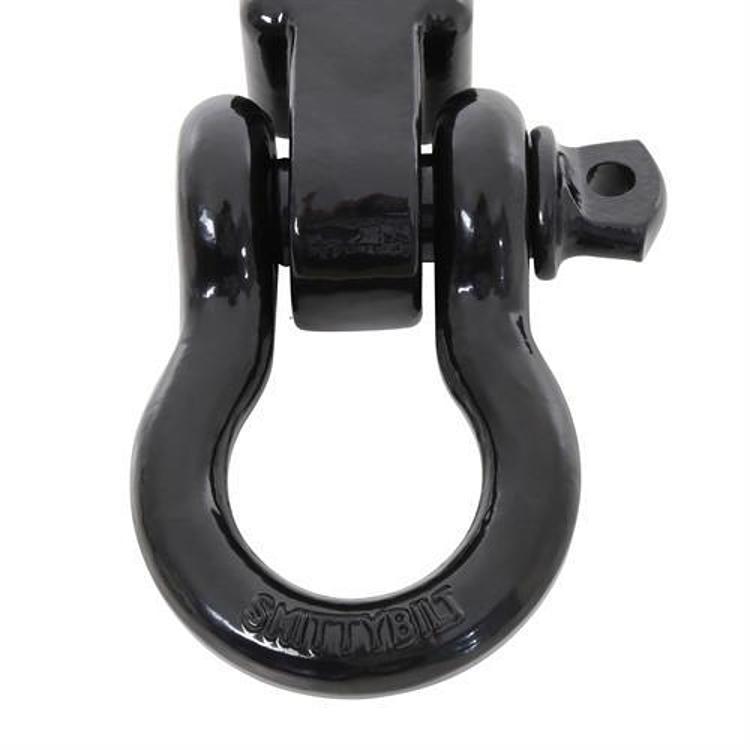

The Smittybilt black powder coated 2 inch receiver mounted D-ring shackle, part number 29312B, is a heavy-duty D-ring that fits all 2 inch receivers. It is zinc coated cast steel with a 3/4 inch pin, and the black powder coat finishes the body.
The D-ring is rated up to 10,000 lbs pulling capacity on straight pulls. It is not intended for towing, so use it as a recovery rigging point rather than as a tow connection.
Key features
- Fits all 2 inch receivers
- Black powder coat finish
- 3/4 inch D-ring pin
- Rated up to 10,000 lbs on straight pulls
- Not recommended for towing
Powder coat and upkeep
A powder coat finish adds a durable layer over metal, which helps shrug off scrapes from gear and everyday handling. Still, a coat can chip when hardware is dropped or dragged, and exposed cast steel begins to rust faster than the coated surface. Keeping the finish intact is the simplest way to protect the D-ring over time.
Clean the D-ring after muddy or salty trips to remove grit that could wear the coating. Check the pin and clip at the same time, since a worn pin or clip matters more than the finish for safe use. Small chips can be touched up with a matching paint, which slows corrosion on the metal beneath.
- Rinse off mud and road salt
- Touch up chips early
- Inspect the pin for wear
- Store the D-ring where it will not be struck
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 29312B |
| UPC | 631410084726 |
| Product type | Receiver mounted D-ring shackle |
| Receiver size | 2 inch |
| Finish | Black powder coat |
| Pin | 3/4 inch |
| Material | Zinc coated cast steel |
| Pulling capacity | Up to 10,000 lbs on straight pulls |
Vehicle fitment
No vehicle is named for this shackle. It fits all 2 inch receivers, so measure your receiver before buying.
Confirm the receiver size and pulling rating against your recovery setup before ordering.
Installation notes
The hitch pin and clip are sold separately, so buy a pin and clip that fits your receiver before you install the D-ring.
What’s included
The D-ring shackle. Not included: the hitch pin and clip.
