Smittybilt XRC Swing AwayTire Carrier – 76654

Smittybilt

Shop Smittybilt Tire Carriers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • XRC swing away tire carrier for a 31 to 40-inch tire
  • Billet handle with cam lock system
  • Safety catch holds the swing away open
  • Mounting hardware included; bumper sold separately

Description

Overview

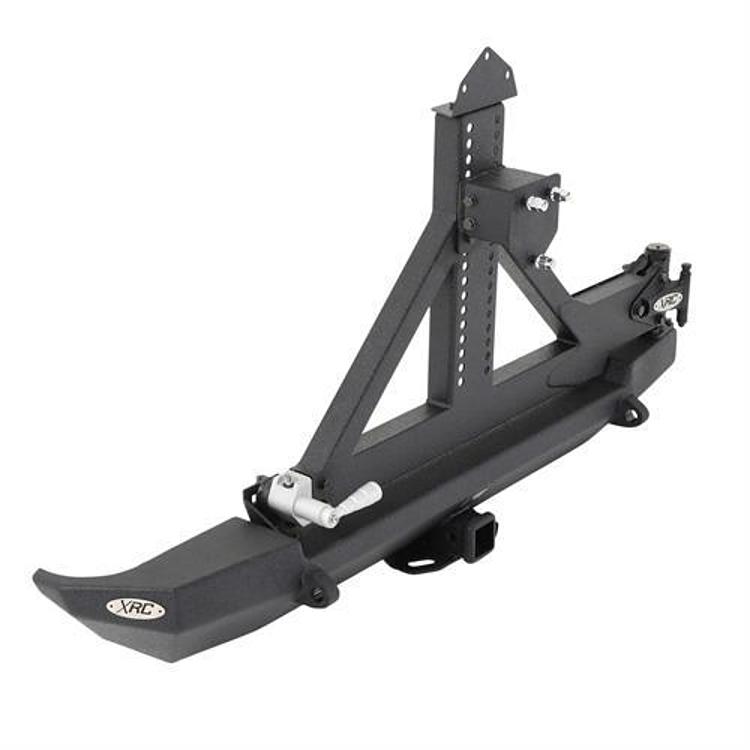

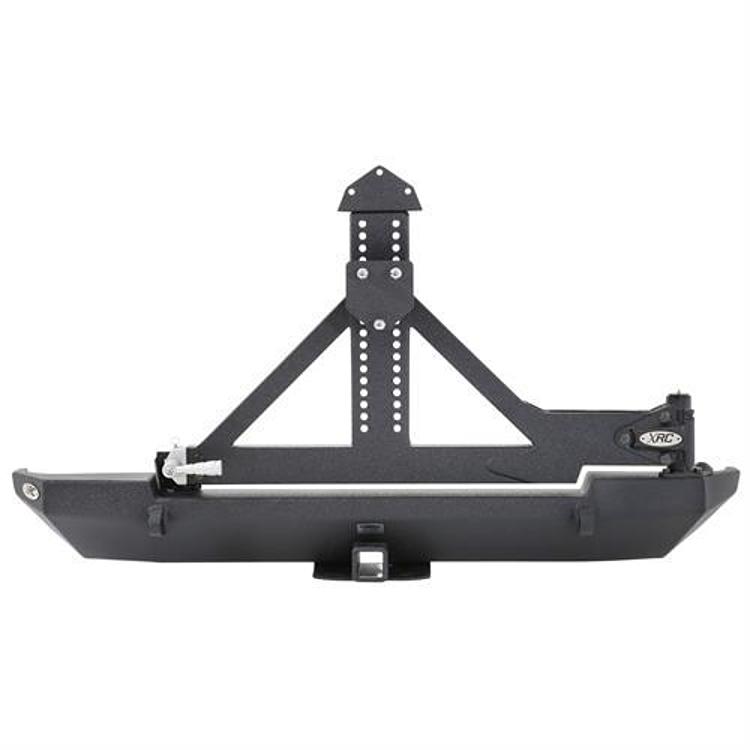

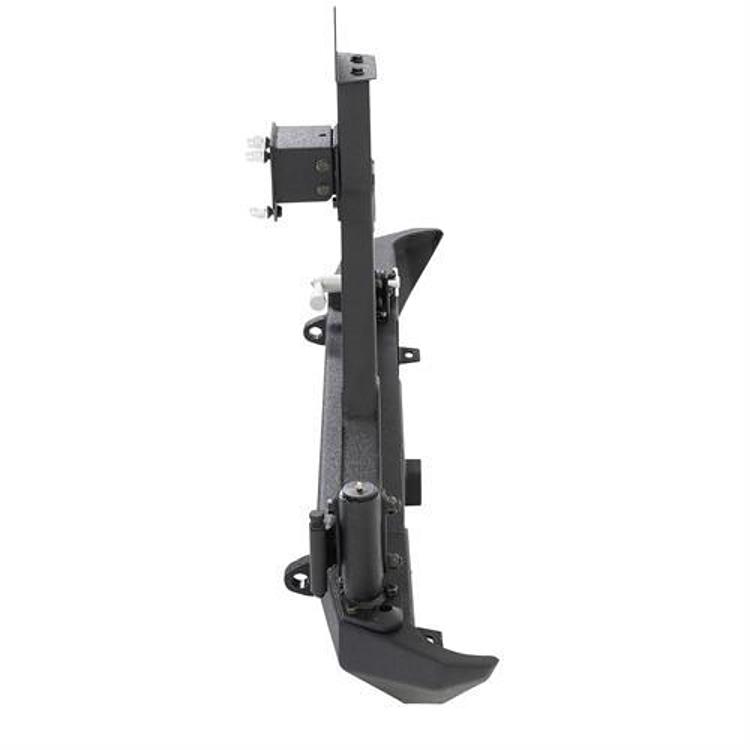

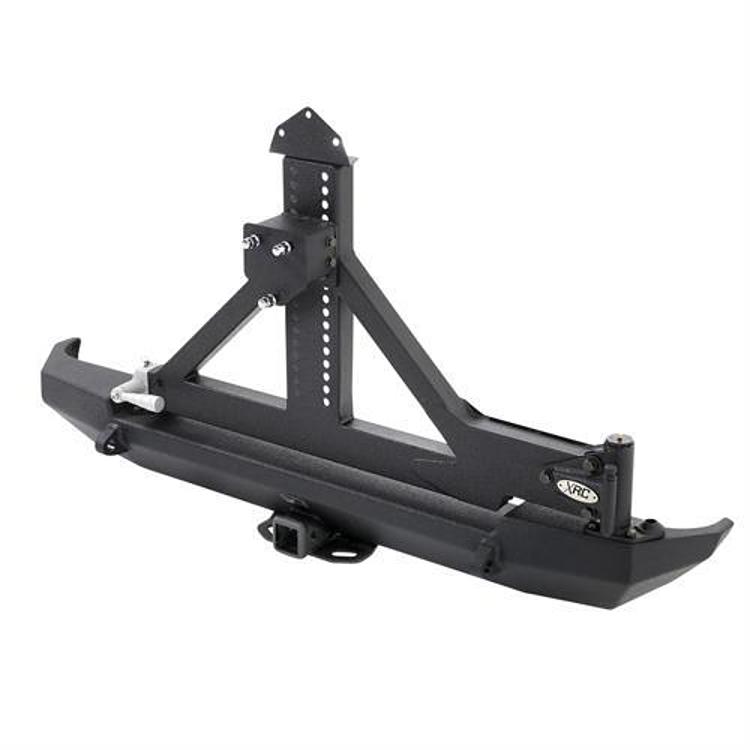

The Smittybilt XRC Swing Away Tire Carrier, part 76654 in black, holds a 31 to 40-inch tire on a swing away arm. The carrier is the optional tire piece for a Smittybilt XRC bumper and can be added to the bumper at any time.

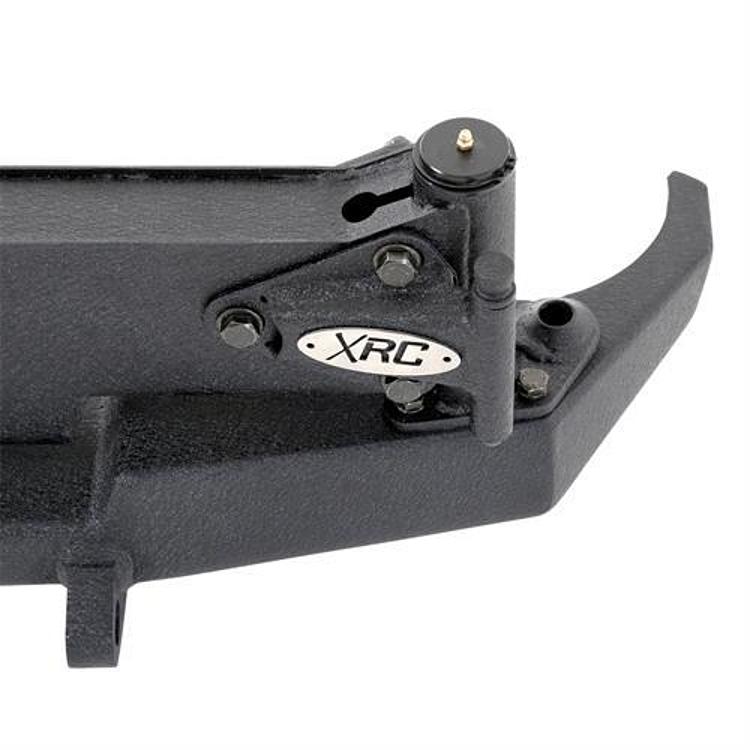

The swing away carrier has a billet handle with a cam lock system, an adjustable tire mount and a safety catch. The catch holds the swing away open while parked or positioned at an angle.

Key features

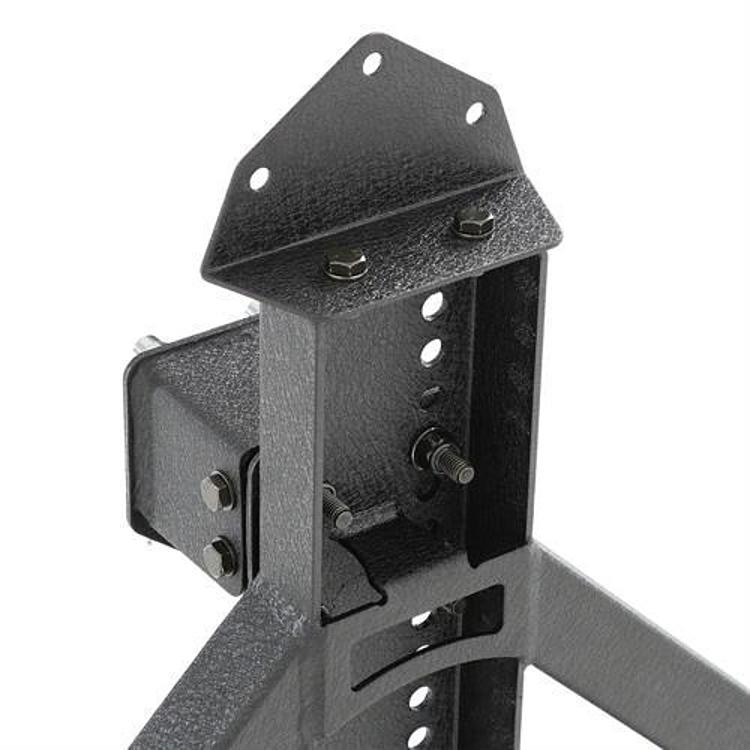

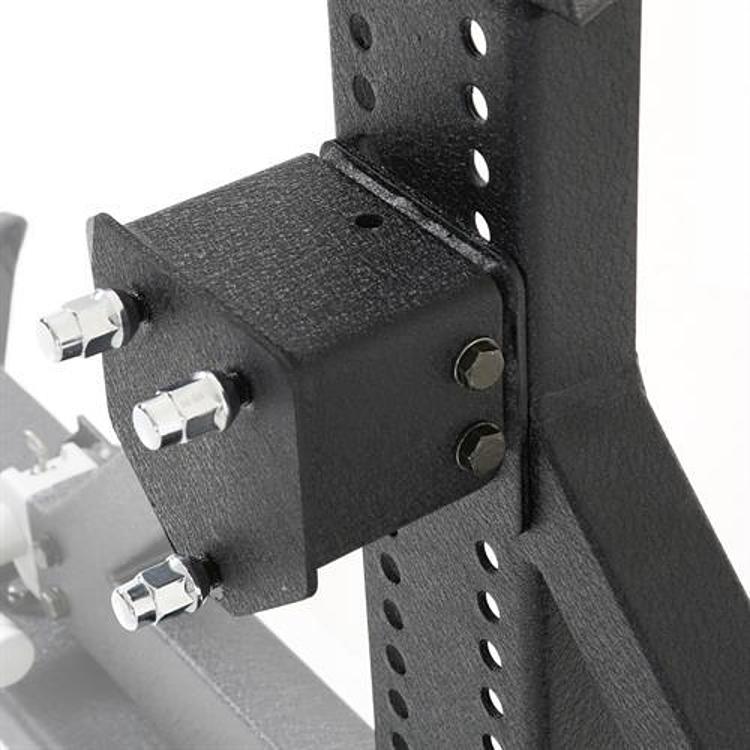

  • Adjustable tire mount for a 31 to 40-inch tire
  • Billet handle with cam lock system
  • Safety catch holds the swing away open
  • Mounting hardware included
  • Black finish

Swing away use and care

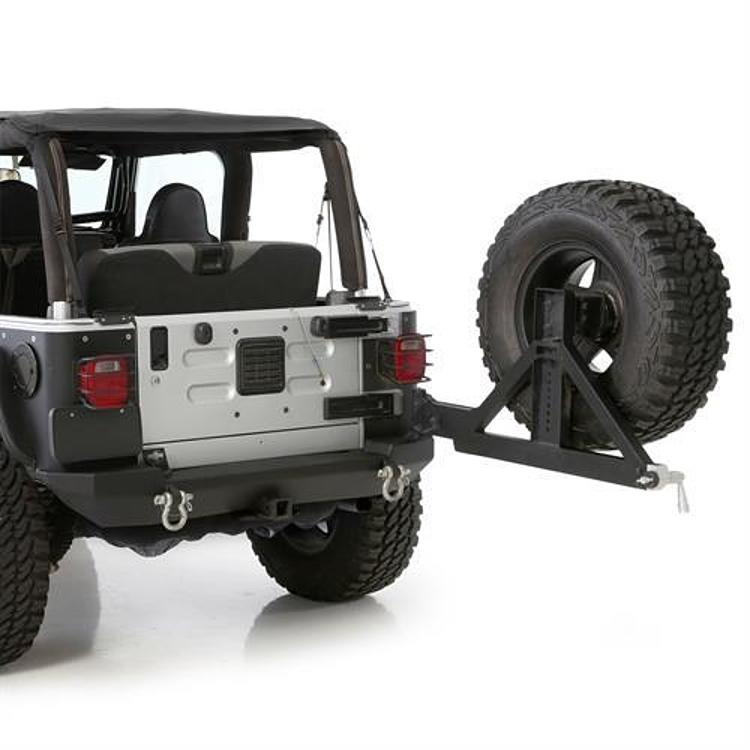

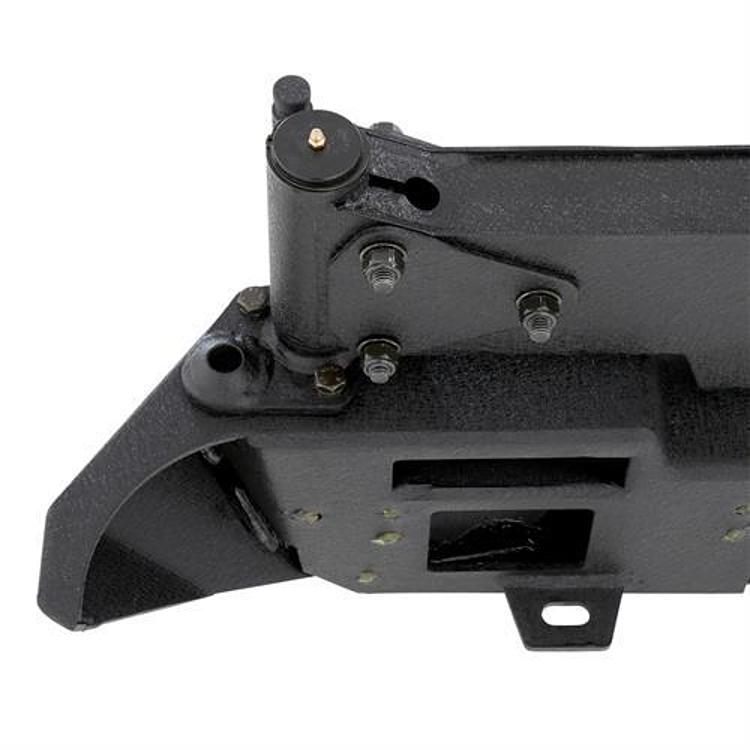

A swing away carrier moves the tire out of the way of the rear opening, but it also adds leverage on the bumper mounts. Check the bolts and the pivot area regularly for looseness and corrosion, since vibration on rough trails can work fasteners loose over time.

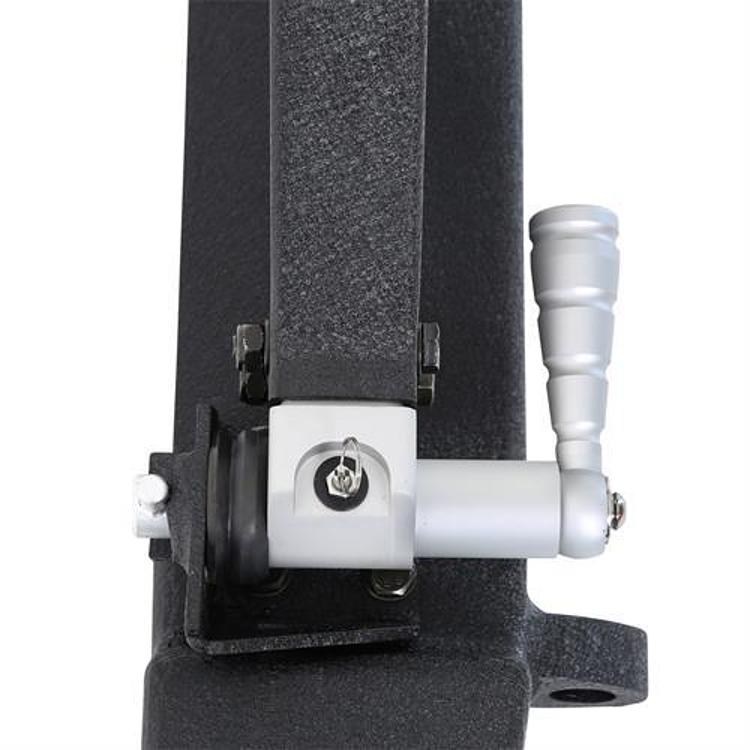

The cam lock handle should close firmly without forcing. If it feels loose or rattles, inspect the lock and the handle hardware before driving. Keep the safety catch engaged when the arm is swung open so it does not drop under load, and clean grit from the pivot to keep movement smooth.

When choosing tires, check that the tire’s width and diameter fall within the 31 to 40-inch range and that the tire clears the bumper at full lock. A heavier tire can change how the vehicle handles on pavement, so keep pressures correct and secure the spare before driving.

  • Inspect bumper mount bolts after rough trails
  • Keep the safety catch engaged when swung open
  • Clear the pivot of grit regularly

Specifications

Brand Smittybilt
Part number 76654
UPC 631410089776
Type Swing away tire carrier
Tire range 31 to 40 inches
Handle Billet with cam lock
Mount location Bumper mount
Color Black

Vehicle fitment

The carrier is a bumper-mounted part and no vehicle year or model is stated. Confirm your vehicle’s year, model and trim, and the bumper it fits, before ordering.

What’s included

The carrier includes mounting hardware. The bumper is sold separately as bumper #76653 and must be purchased on its own.

SKU: S/B76654 Category:

Specification

Shipping weight 70.00 lbs
Package dimensions 44.00 × 26.00 × 7.00 in
brands

Questions & Answers

Does the swing away carrier come with a bumper?

No. The bumper must be purchased separately, and the carrier is sold for use with bumper part number 76653 as a separate item.

What tire size does the carrier hold?

It has an adjustable tire mount for a tire from 31 to 40 inches, and the billet handle with cam lock system operates the swing away arm.

Can the swing away be added later?

Yes. It can be added to the XRC bumper at any time, since the mounting hardware is included with the carrier for a straightforward install.

How do I tell the cam lock needs attention?

Look for handle play, a lock that does not hold closed, or rattling at the bumper mount. Tighten or inspect the hardware, and clean and lubricate the pivot if movement feels stiff. Replace worn parts before the carrier moves under a loaded tire.
