Overview

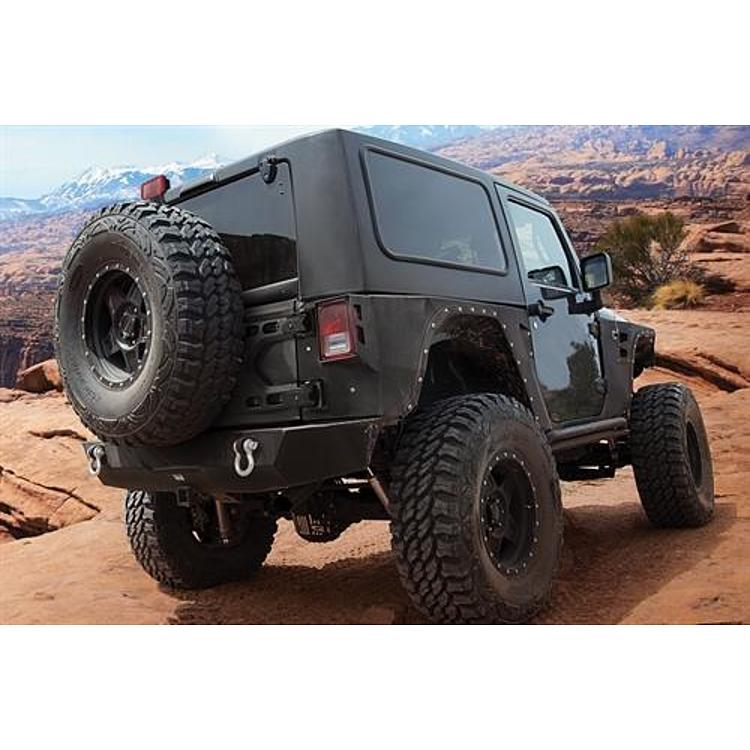

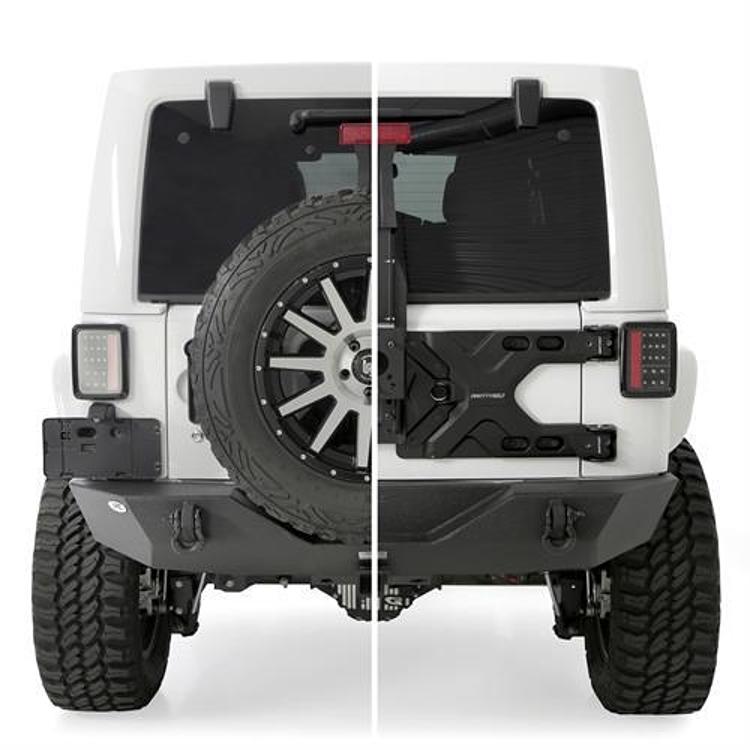

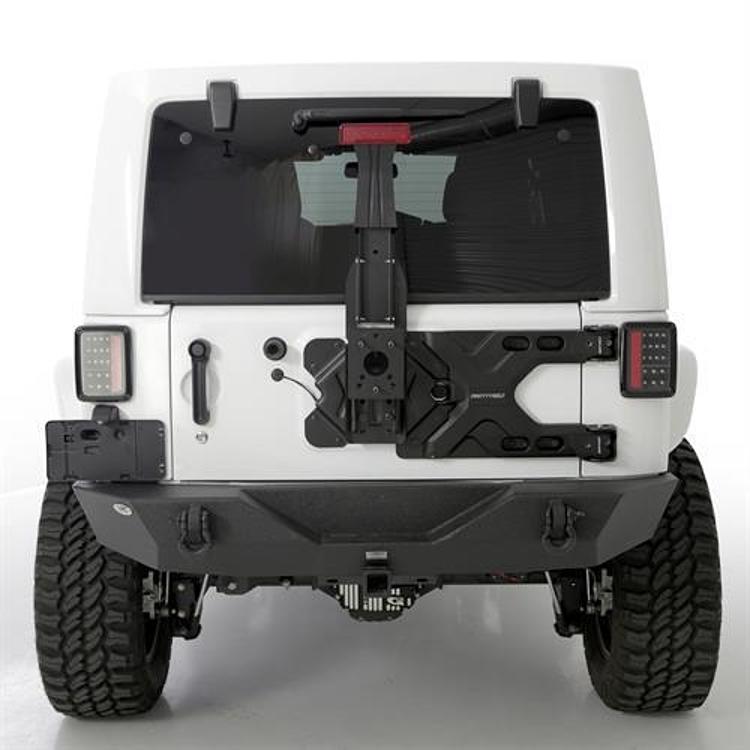

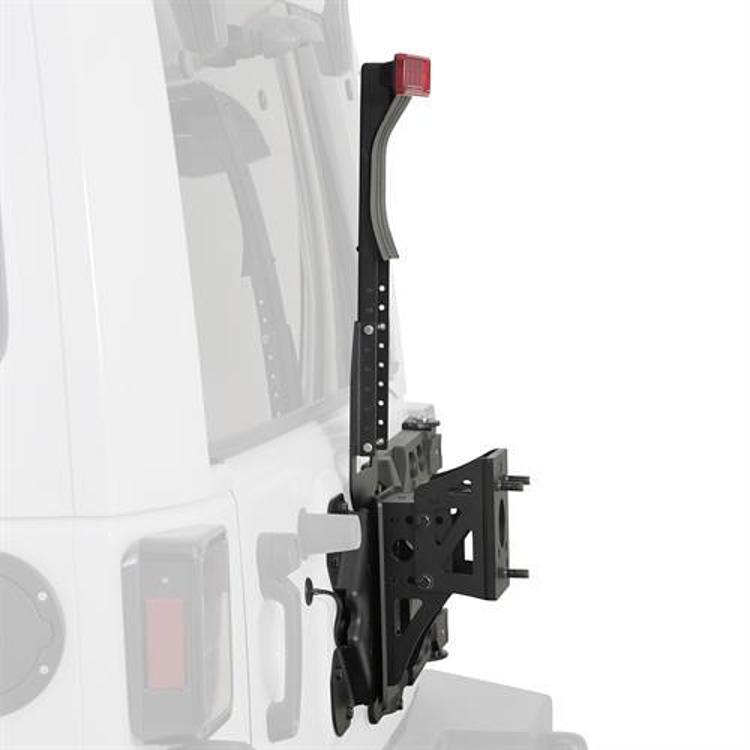

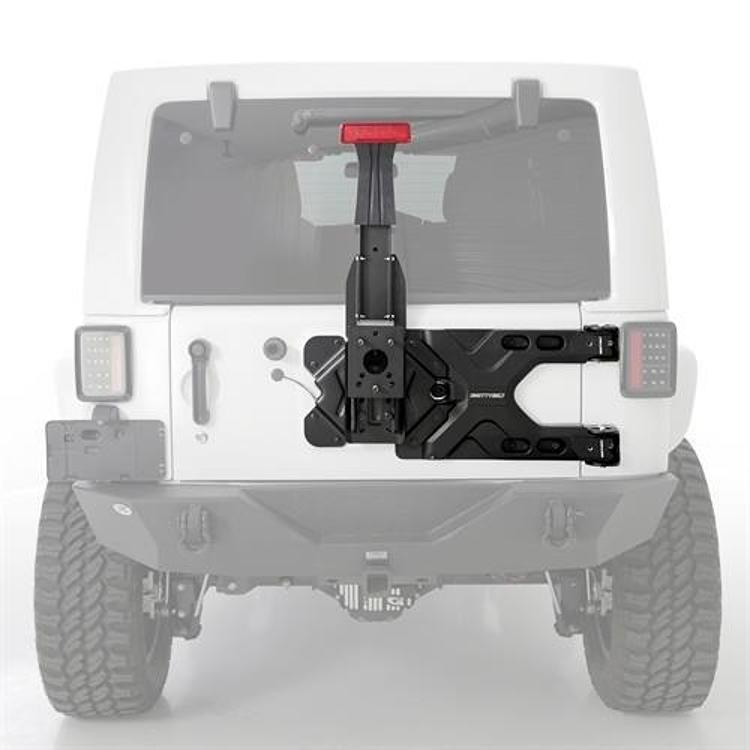

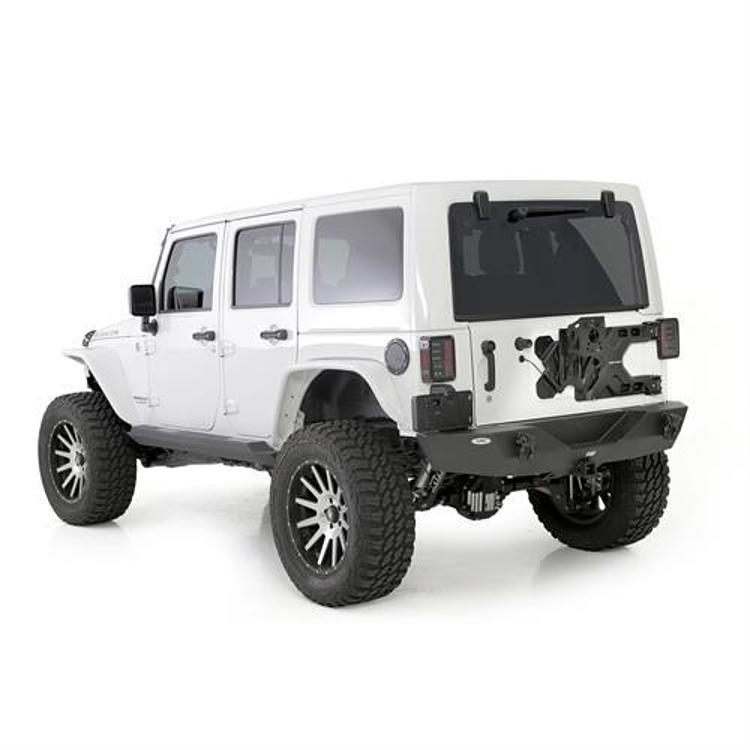

The Smittybilt Pivot Heavy-Duty Oversize Tire Carrier, part 2843, mounts an oversized spare to the Jeep Wrangler JK. It carries the oversized spare on the tailgate.

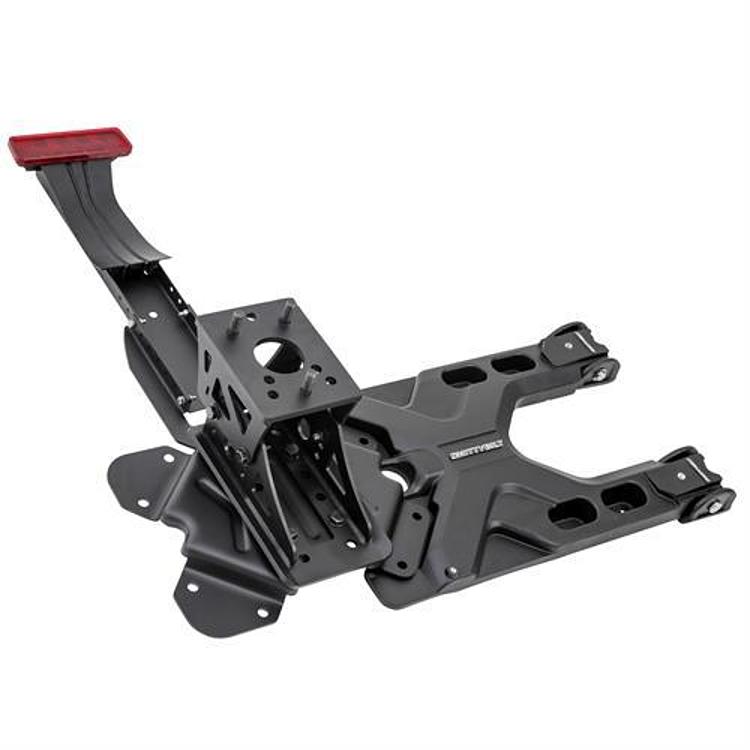

The carrier is built from monocoque aluminum to eliminate tailgate sag and keeps the tailgate’s single-action opening. It is made for two- and four-door models and needs no drilling, so the factory bumper can stay on the vehicle.
Key features
- Strong monocoque aluminum construction eliminates tailgate sag

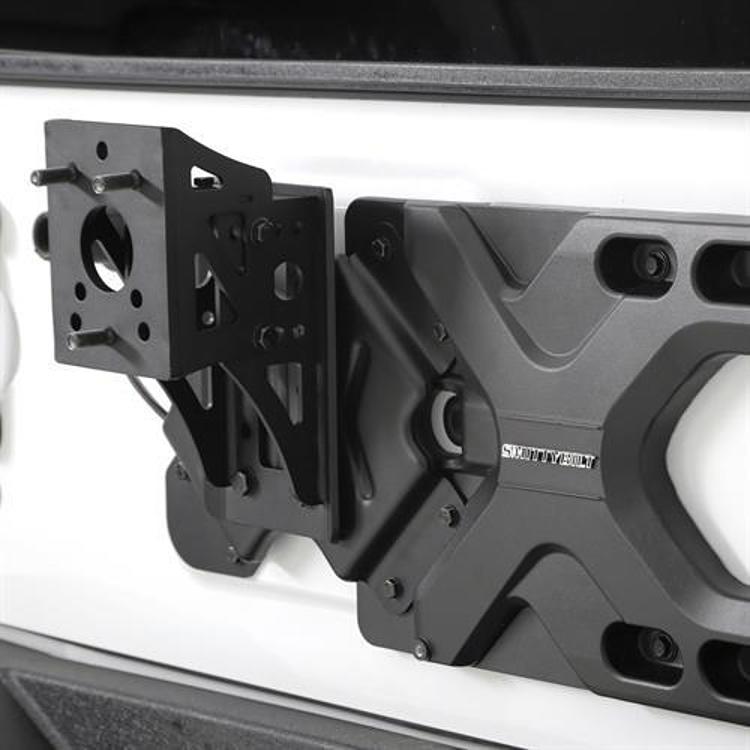

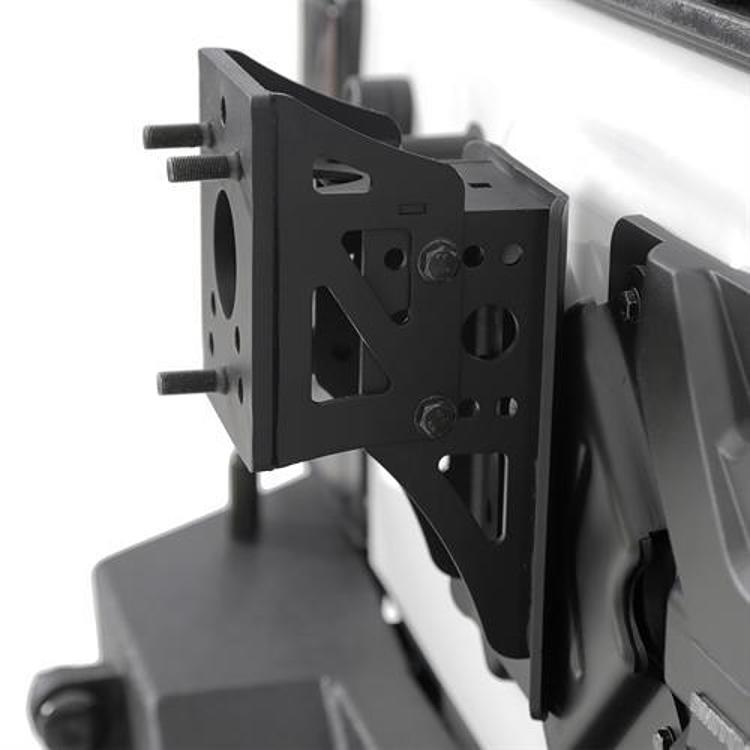

- Adjustable tire mount with a 37-inch maximum tire size

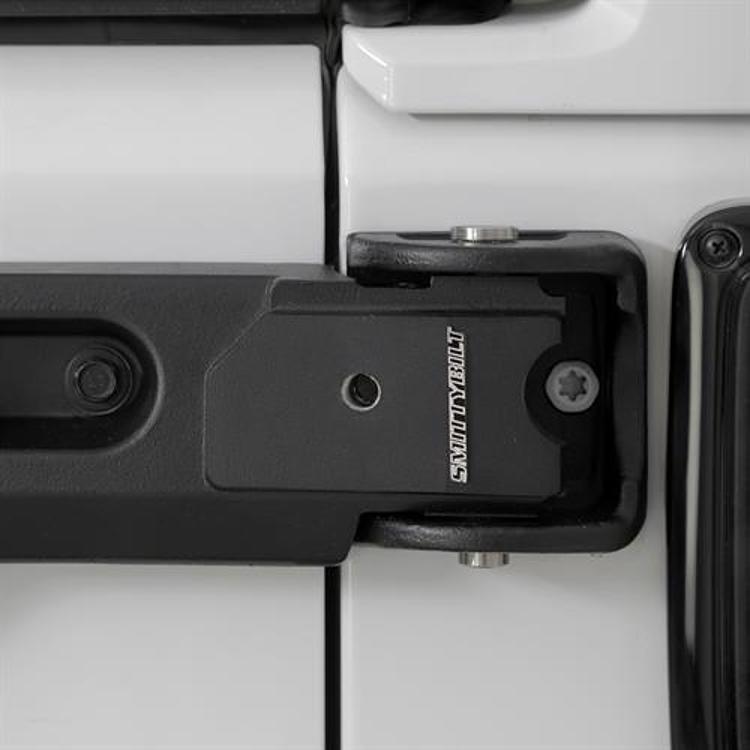

- Forged chrome mounting brackets, 30% stronger than steel.

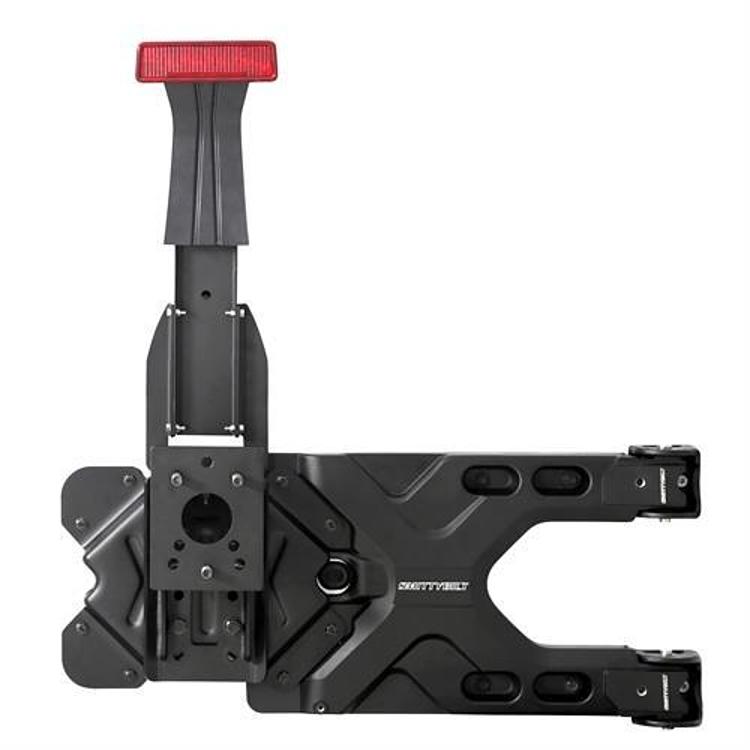

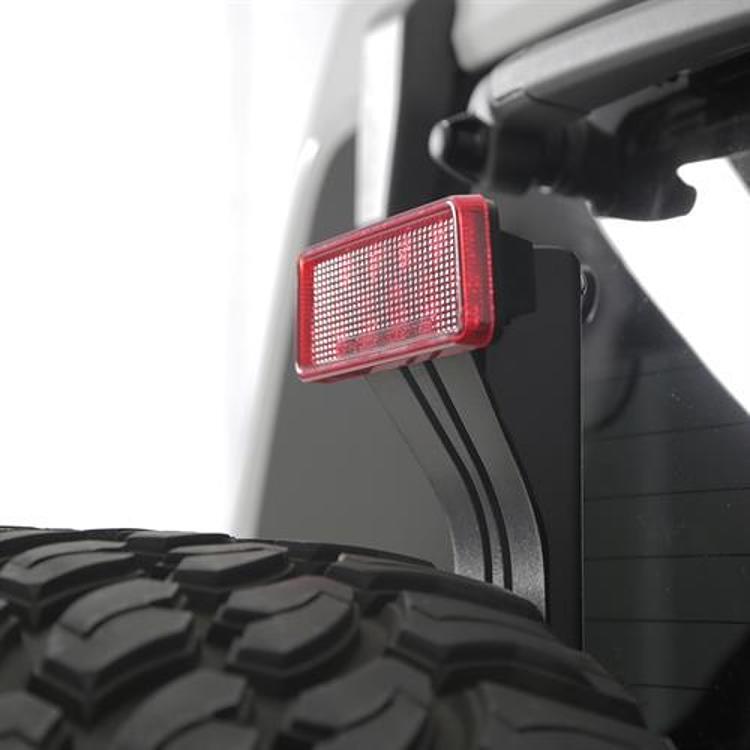

- Third brake light mount included
- EPDM gaskets protect the factory finish

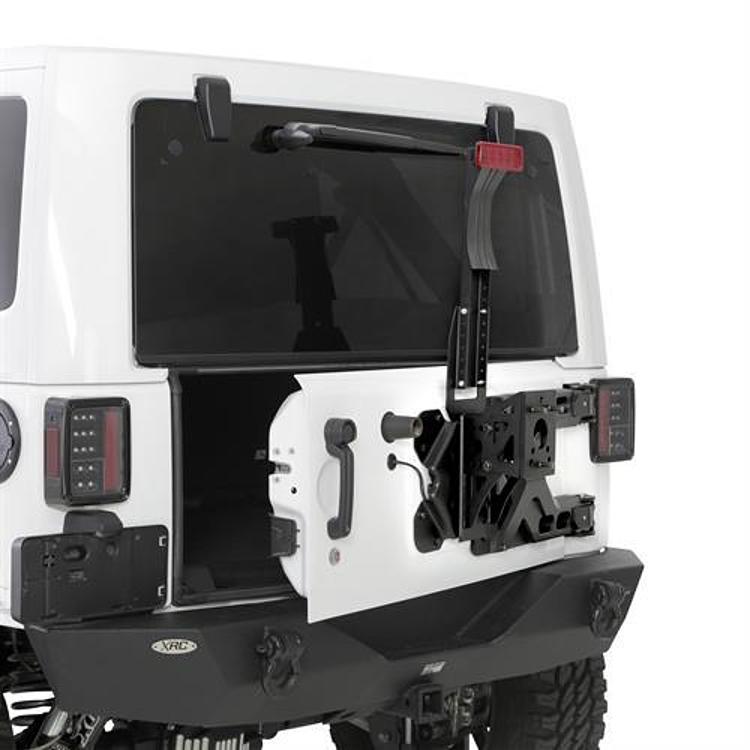

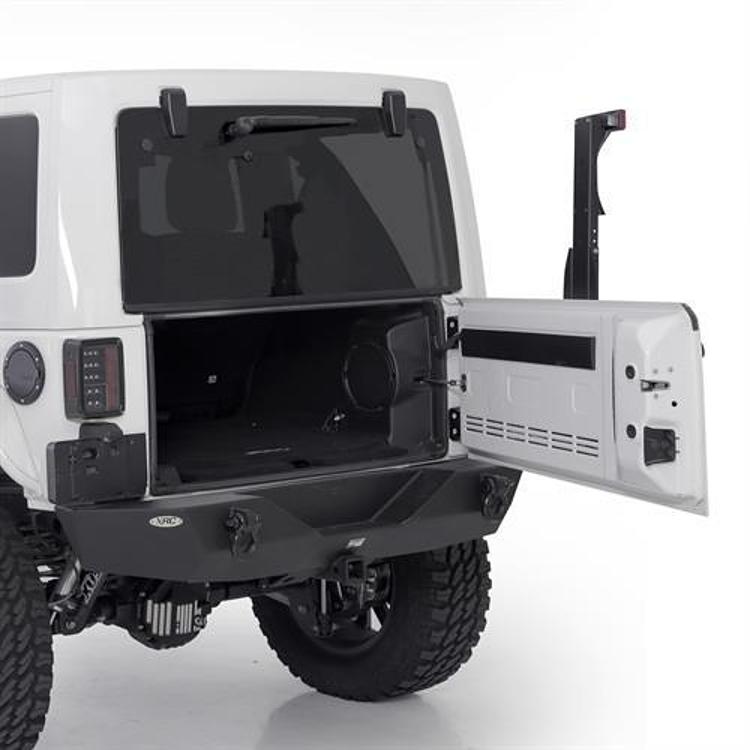

- Easy single-action opening and closing of the tailgate
Heavy-duty carriers and trail jacks
Oversize tire carriers add weight and leverage at the rear of the vehicle, so the load should be kept centered and within the carrier’s capacity. Lighter carrier bodies help limit the extra load on the tailgate hinges and latch, but the load limit still applies to the tire and any accessories added.
If you plan to mount a trail jack on the optional brackets, consider how the jack’s weight changes the rear balance and the way it is secured. Tighten all fasteners after the first few trips and recheck after rough trails. Keep the tire and jack in place with straps so they cannot shift on a steep grade.

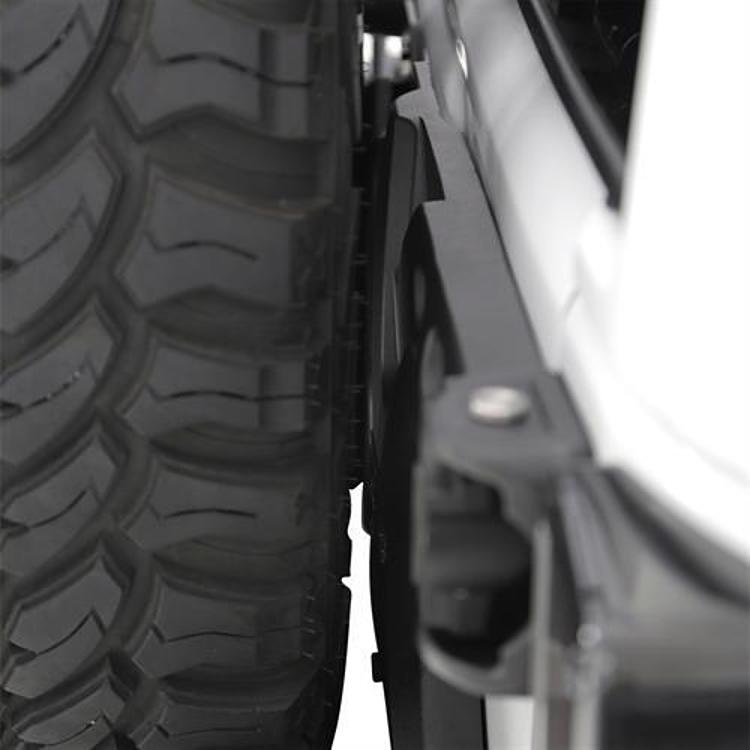

A larger tire changes the approach and departure angles and can rub on the bumper or body in tight turns, so check the clearance at full lock. Inspect the tailgate weld points and the carrier arm for cracks, and replace worn gaskets so the finish stays protected.
- Check tire clearance at full steering lock
- Recheck fasteners after rough trails
- Replace worn EPDM gaskets when they harden
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 2843 |
| UPC | 631410125696 |
| Type | Heavy-duty oversize tire carrier |
| Body material | Monocoque aluminum |
| Maximum tire size | 37 inches |
| Load capacity | 135 lbs |
| Brackets | Forged chrome, 30% stronger than steel |
| Body style | Two- and four-door models |
Vehicle fitment
Make sure your vehicle’s year, model and trim fit before ordering.
It fits the JK generation, and it does not fit the Wrangler JL or the earlier TJ and LJ models.
Installation notes
No drilling is required. Optional S/B2740-03 brackets are available for mounting a trail jack, and the factory bumper can stay on the vehicle.
What’s included
The package includes the third brake light mount and EPDM gaskets for the factory finish. Optional S/B2740-03 brackets for a trail jack are listed separately.
