Overview

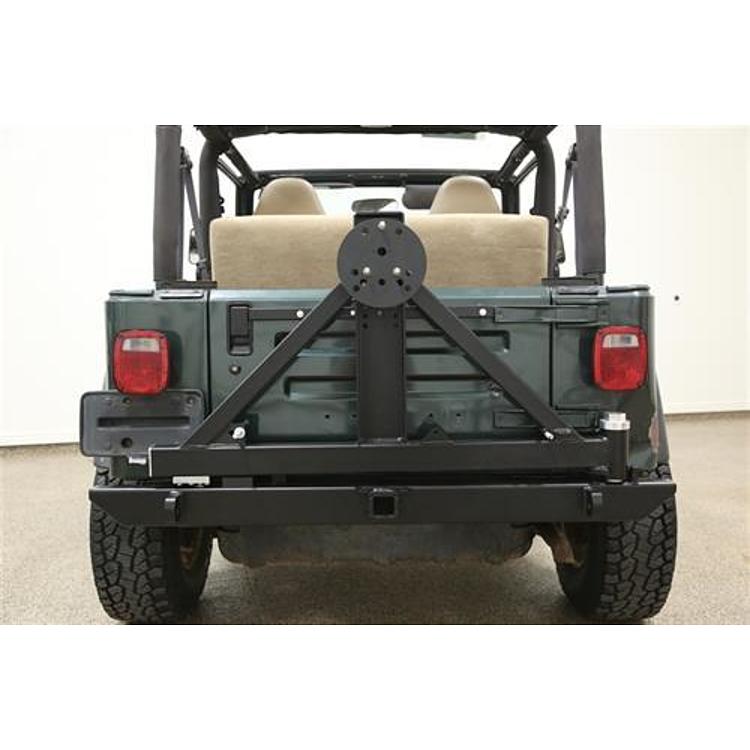

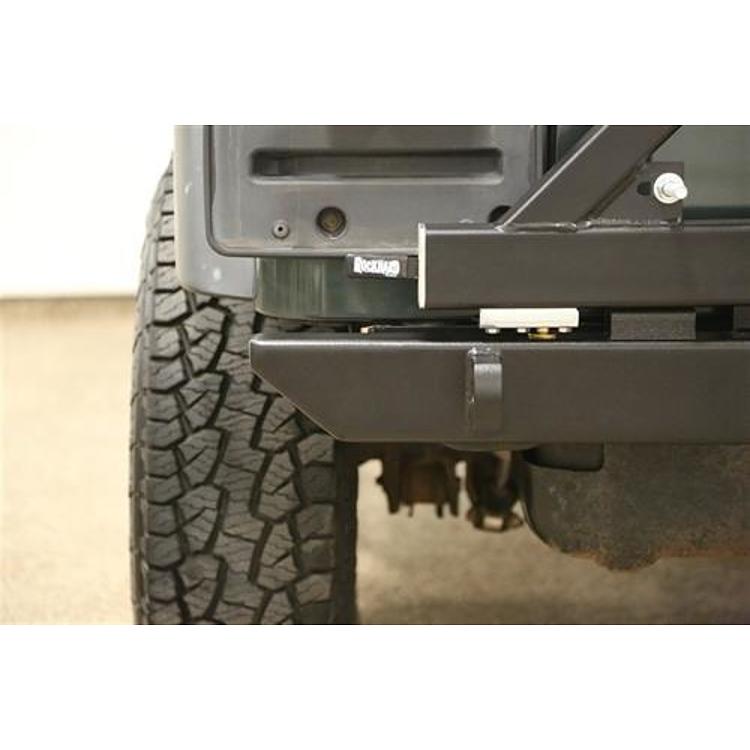

The Rock Hard 4×4 Parts RH-2001-C is a rear bumper with tire carrier for Jeep CJ, Wrangler YJ, Wrangler TJ and Wrangler LJ models. It is a bumper-mounted unit that holds a spare tire up to 38 inch on a swing-out carrier and adds a 2 inch receiver for towing, a horizontal Hi-Lift Jack mount with padlock provision, a CB antenna mount and two D-ring shackle mounts.
The bumper is made from 3/16 x 2 x 4 thick tubing with the ends boxed in and finished in gloss black powder coat. It is made in the U.S.A. and suits owners running tires larger than factory who want the carrier mounted on the bumper rather than the tailgate. Two sets of frame holes allow a standard position or a raised position, which increases departure angle and compensates for a body lift.
Key features
- Two sets of frame mounting holes for a standard position or a raised position, to increase departure angle and compensate for a body lift.

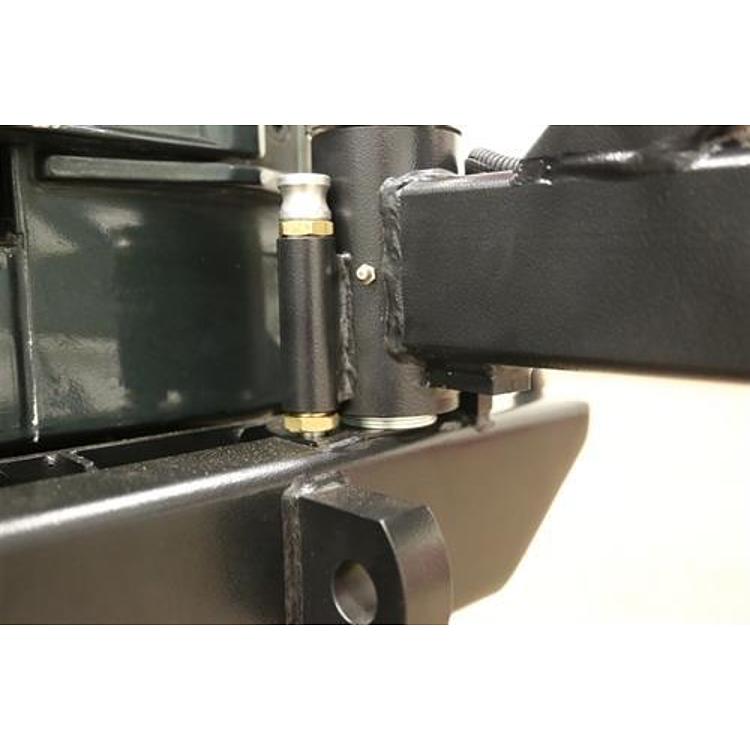

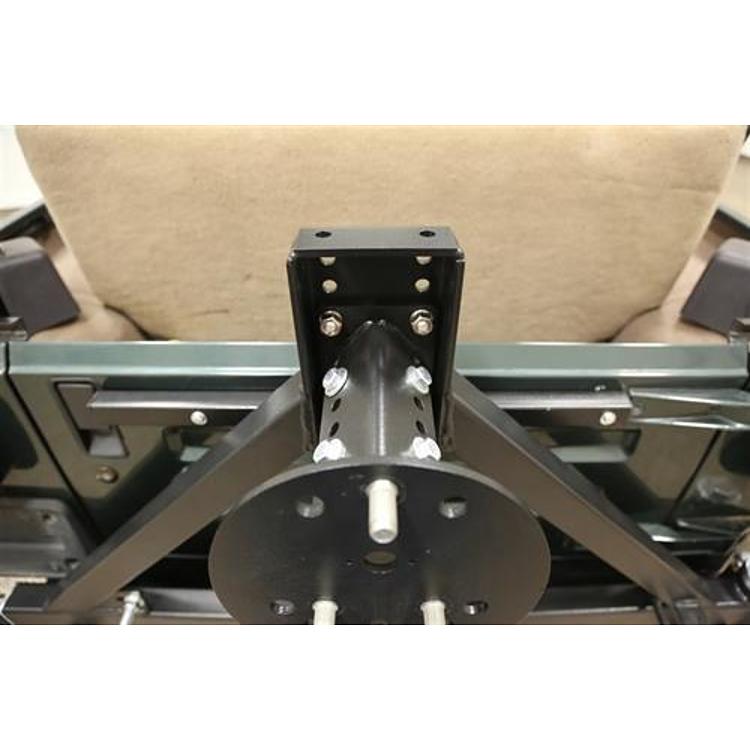

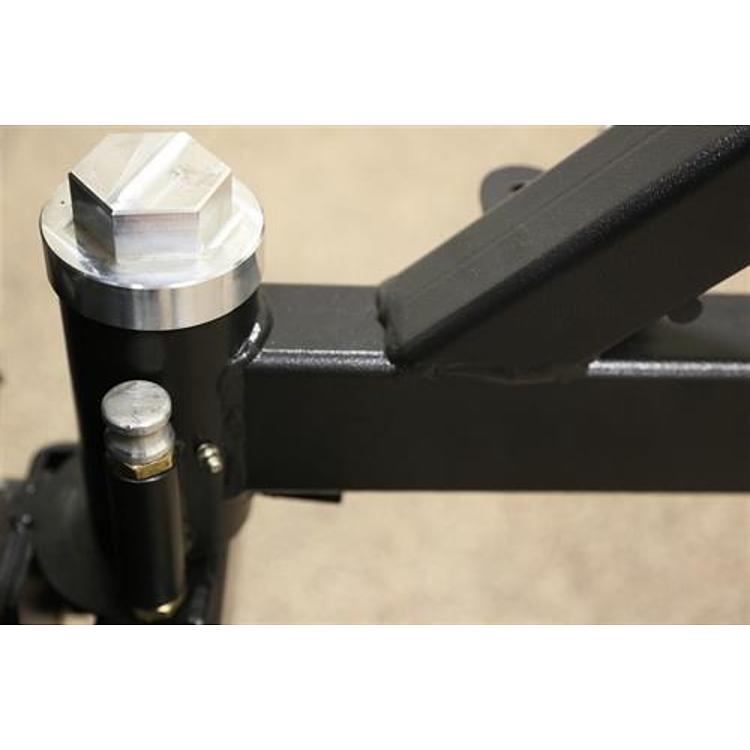

- Swing-out tire carrier that holds a tire up to 38 inch.

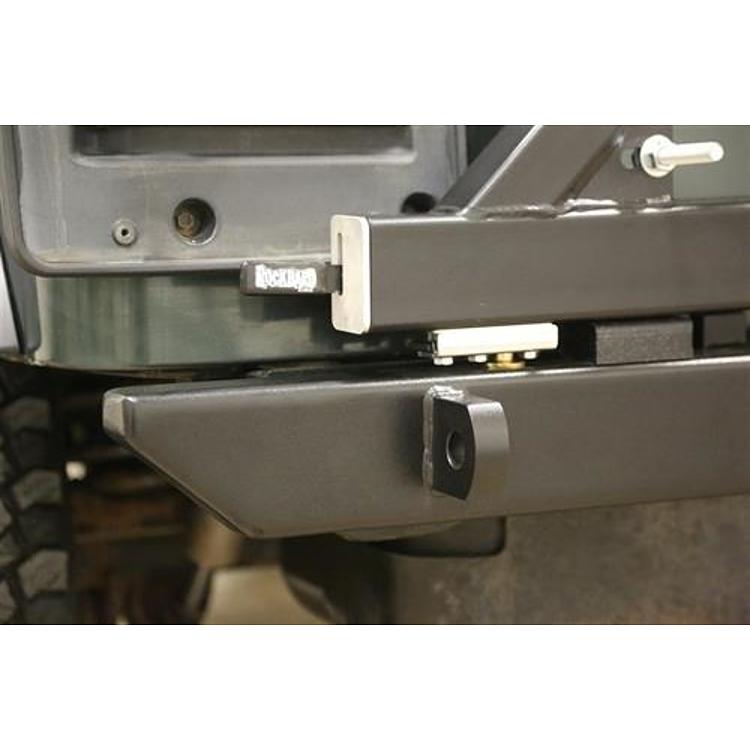

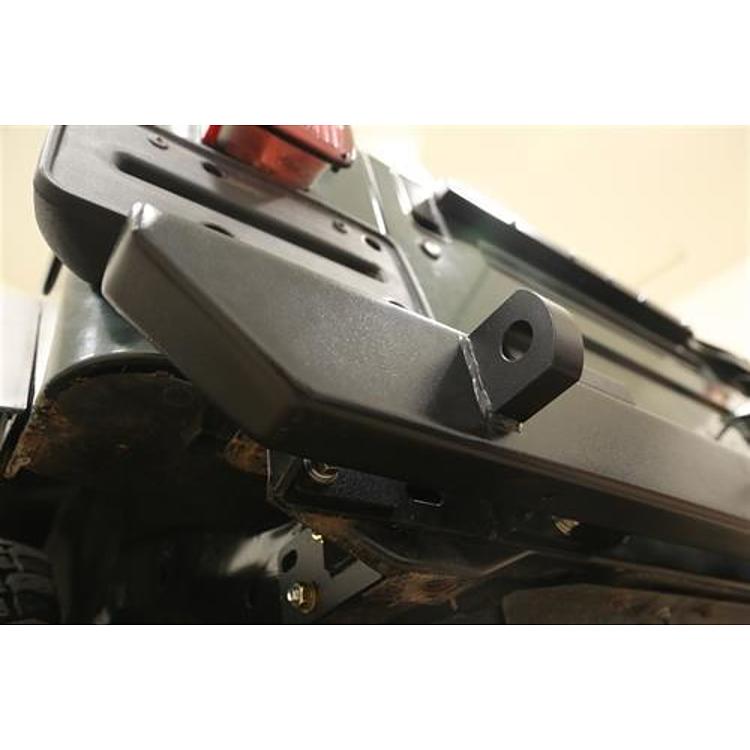

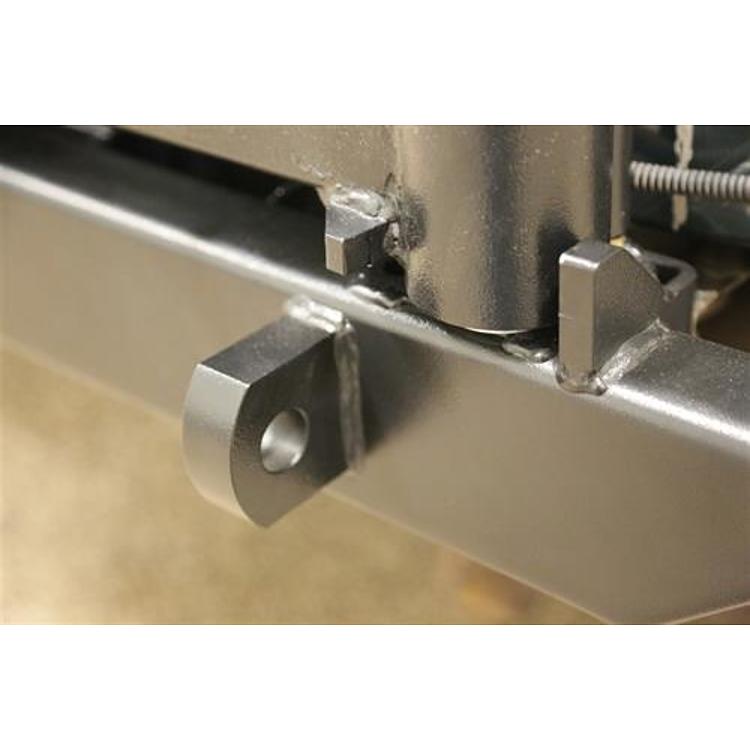

- Two CNC D-ring shackle mounts, 5/8 x 2-1/2, with tabs welded on the front, through the bumper and welded on the back.

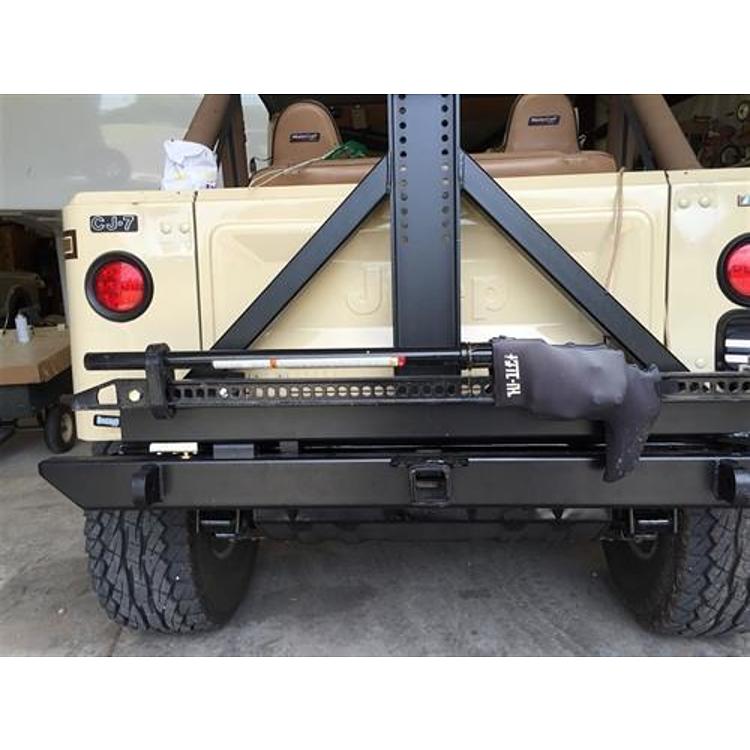

- Horizontal Hi-Lift Jack mount with padlock provision, included as standard.
- CB antenna mount, included as standard.

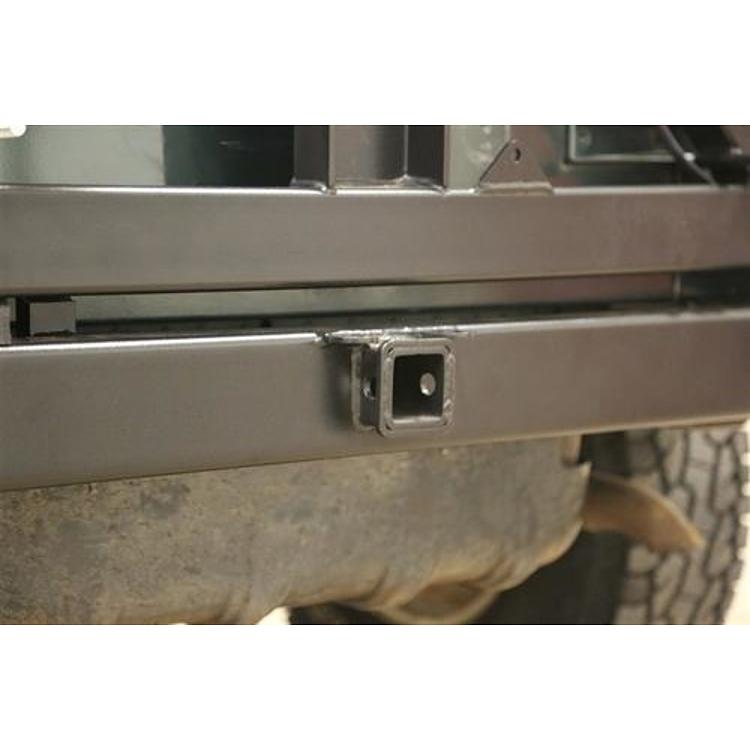

- 2 inch receiver for towing.
- Ends boxed in on 3/16 x 2 x 4 thick tubing, finished in gloss black powder coat.
- Made in the U.S.A.
Choosing a mounting position
A bumper-mounted carrier moves the spare’s weight to the rear bumper and frame rather than the tailgate. That leverage is why frame support matters, and why the frame kit is a related part to plan for when setting up a CJ. Tire size changes both the load and the swing, so match the bumper to the tires you expect to run.
Ride height is the other factor. Raising the bumper on its frame holes changes departure angle and clearance, which matters on steep trail obstacles. If the vehicle has a body lift, the raised position helps the bumper sit correctly relative to the body.
- Check frame condition before mounting
- Plan space for the Hi-Lift jack in its mount
- Recheck bumper bolts after the first drives
Specifications
| Brand | Rock Hard 4×4 Parts |
|---|---|
| Part number | RH-2001-C |
| UPC | 70000430463 |
| Product type | Rear bumper with tire carrier, bumper mount |
| Tubing | 3/16 x 2 x 4 thick tubing, ends boxed in |
| Finish | Gloss black powder coat |
| Tire capacity | Up to 38 inch tire |
| Receiver | 2 inch receiver for towing |
| D-ring shackle mounts | Two, 5/8 x 2-1/2 CNC, with welded tabs |
| Jack mount | Horizontal Hi-Lift with padlock provision |
| Frame kit | Required on CJ models, part number RFPRH2001-CJ |
| Made in | U.S.A. |
Vehicle fitment
It fits 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade) and 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade) models. It also fits 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR), 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon, 1997–2006 Jeep Wrangler TJ in 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and 1987–1995 Jeep Wrangler YJ in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Wrangler JK, JL, Grand Cherokee and Gladiator models are outside this fitment.
The list does not include the Wrangler JK or JL generations, the Grand Cherokee or the Gladiator. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The frame kit (RFPRH2001-CJ) is required for CJ installation and recommended for tires larger than 33 inch or when Rock Rack or Can Mounts are fitted. Choose the standard or raised frame mounting position before installing the bumper. All necessary hardware for the installation is included. Because a loaded tire carrier adds weight and leverage at the rear of the vehicle, check every mounting bolt after the first few drives.
What’s included
The bumper comes with the horizontal Hi-Lift Jack mount with padlock provision, the CB antenna mount, the two D-ring shackle mounts and all necessary hardware for installation.
Not included: the Rock Hard Frame Kit (RFPRH2001-CJ), a separate part required for CJ installation; the Hi-Lift jack itself; and the spare tire and wheel.
