Overview

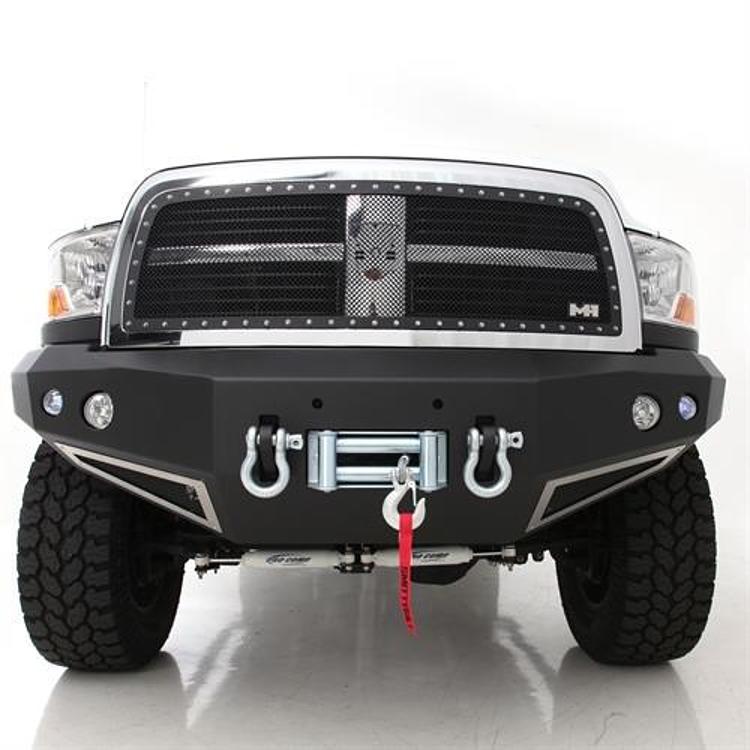

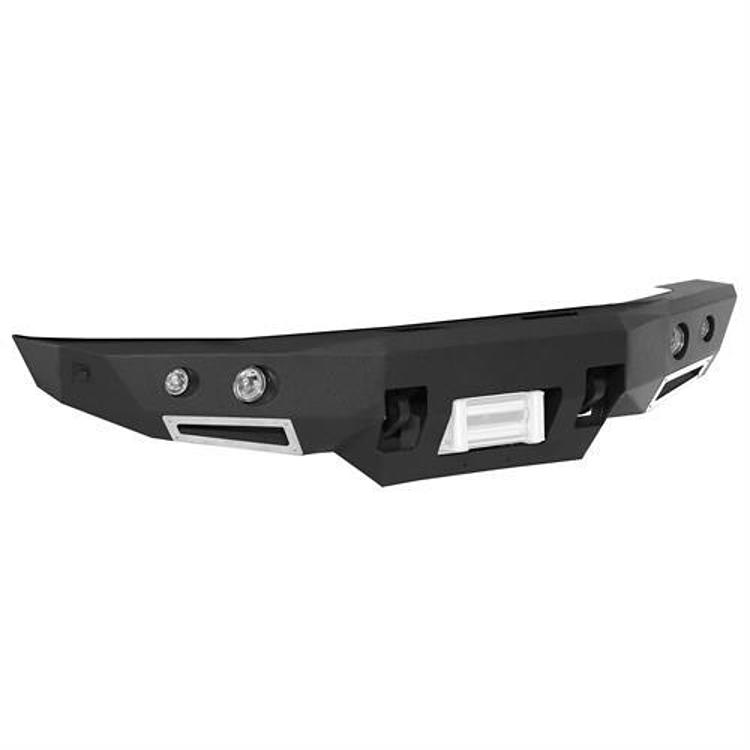

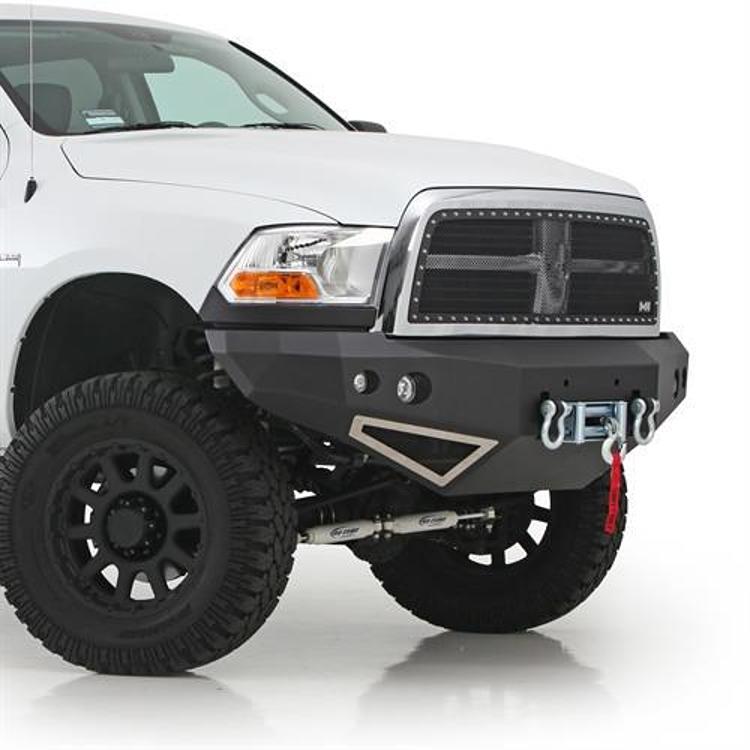

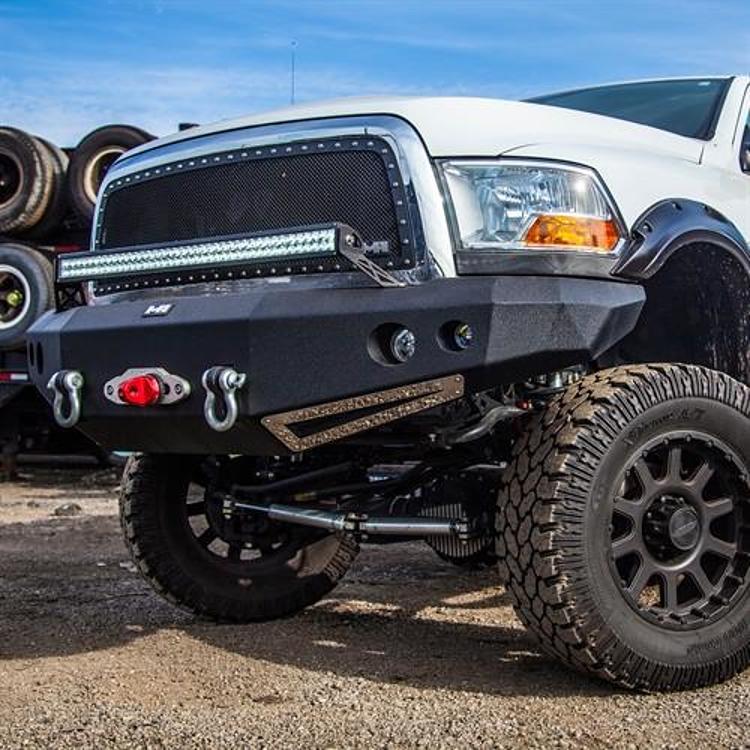

The Smittybilt M1 Truck Bumper, part number 612808, is a front bumper for the 2013–2017 Ram 1500. It is made from 3/16 and 1/4 inch cold rolled steel and is designed to bolt on without drilling.

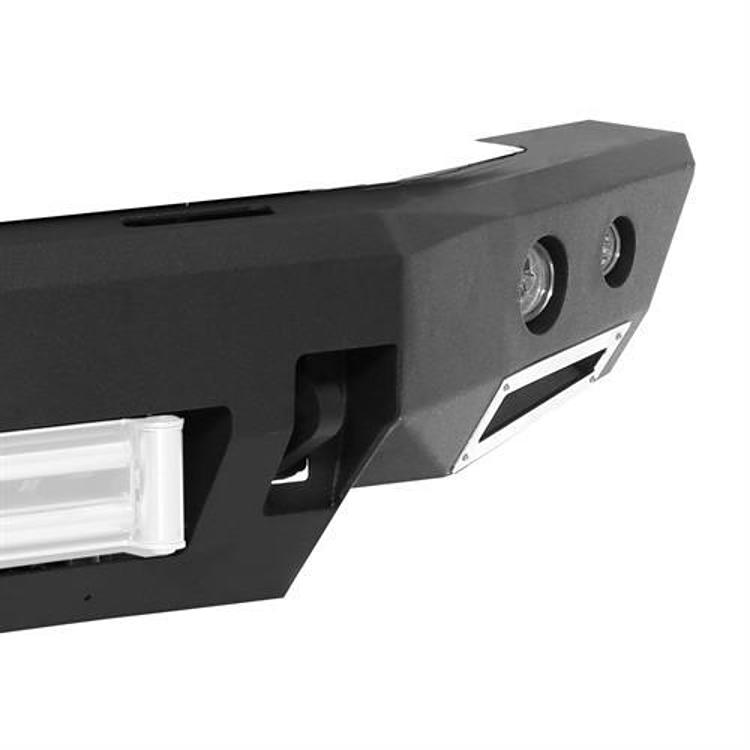

The M1 is built with a solid plate center section that wraps the frame horns and lower cross member, and the D-ring mounts are welded on the inside and outside.
Key features
- 3/16 and 1/4 inch cold rolled steel construction
- Solid plate center section wrapping the frame horns and lower cross member
- 7/8 inch solid D-ring mounts, welded inside and out

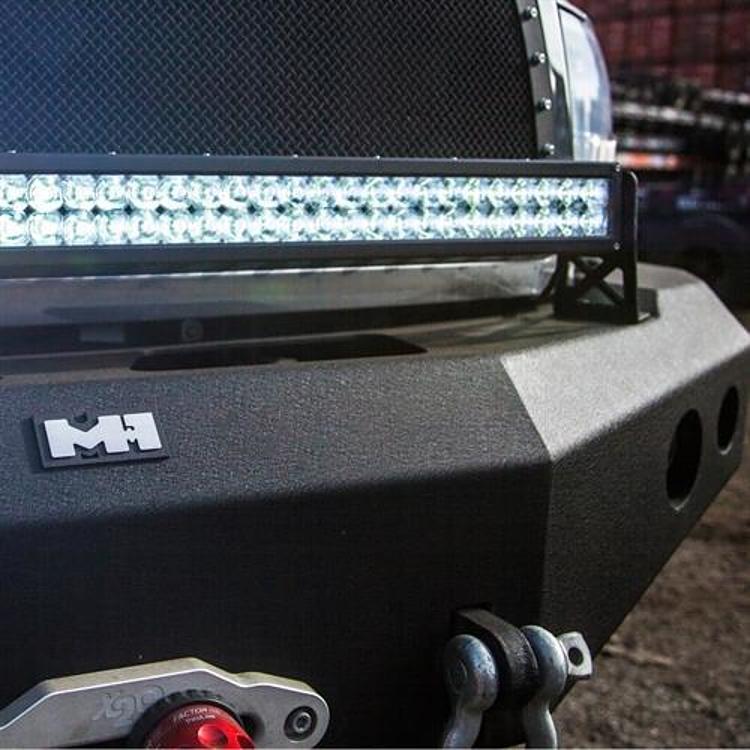

- Ultra bright driving and fog lights included
- Winch mount system rated for a winch up to 16,500 lb
- Two-stage powder coat finish
Choosing a winch setup
A winch is only as strong as the mount holding it. The center plate and welded D-ring mounts carry the pull into the frame, so the rating of the mount matters as much as the winch size. Choose a winch that stays within the rated limit, and make sure the fairlead, cable and hook are sized to match the winch you pick.
Fog lights and driving lights should be wired through a relay and fuse, not run straight from the battery. Route the harness away from the winch cable and moving suspension parts. Before a recovery, check the mounting bolts and the cable for fraying, since small problems at the front end are easier to fix at home.
- Stay within the mount’s rated winch capacity
- Route light wiring away from the winch cable
- Inspect the cable and fairlead before each recovery
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | 612808 |
| Part type | Front truck bumper |
| Material | 3/16 and 1/4 inch cold rolled steel |
| Mounting plates | 1/4 inch |
| D-ring mounts | 7/8 inch solid |
| Winch capacity | Up to 16,500 lb |
| Finish | Two-stage powder coat |
Vehicle fitment
It fits the 2013–2017 Ram 1500 and is a direct fit that bolts on without drilling. Check fit against your vehicle’s year, model and trim before ordering.
Ram 1500 years outside 2013–2017 and Ram 2500 or 3500 models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bumper bolts on without drilling, so the work is in matching the mounts to the frame of your 2013–2017 Ram 1500. The winch mount system is rated for a winch up to 16,500 lb.
What’s included
The bumper with its D-ring mounts, winch mount system, and ultra bright driving and fog lights.
Not included: The winch itself, which is not part of the bumper.
