Smittybilt XRC 15.5K GEN2 15500lb Winch – 97415

Smittybilt

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 15500 lb XRC GEN2 winch with a roller fairlead and cable line
  • Series-wound 6.6 hp motor and three-stage planetary gears
  • Solenoid box mountable in three positions
  • Part number 97415

Description

Overview

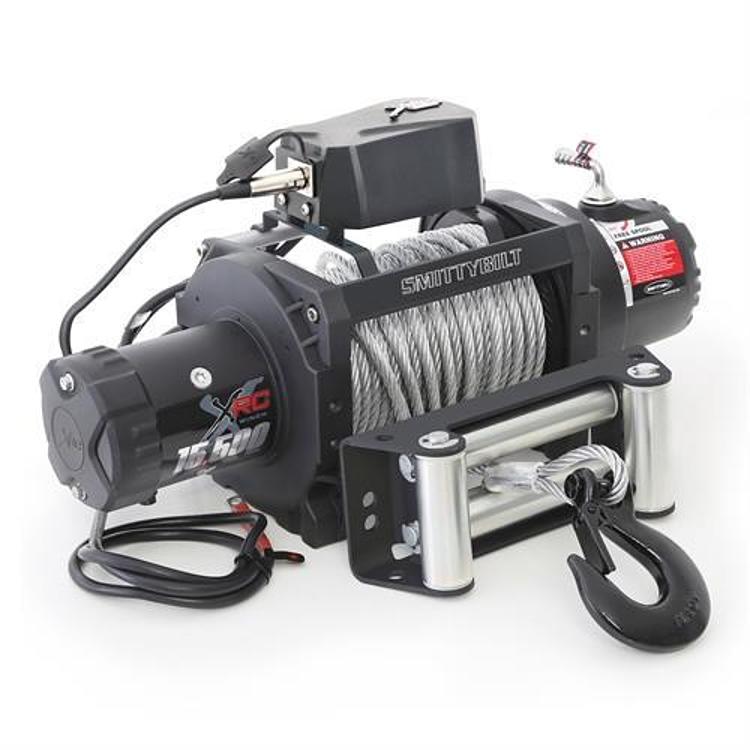

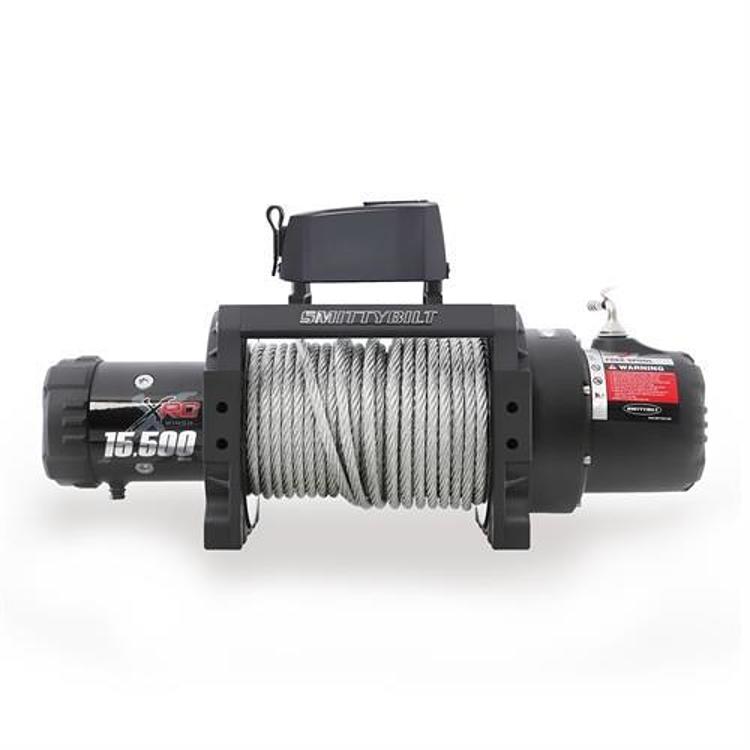

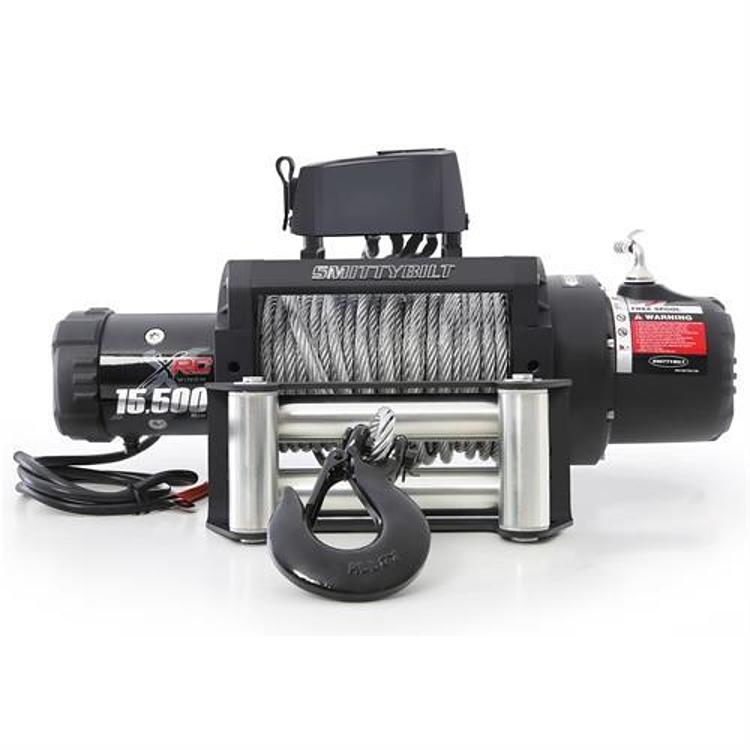

The Smittybilt 97415 is the XRC 15.5K GEN2 winch, rated for 15500 lb line pull and fitted with cable and a roller fairlead. It is one of the higher-capacity models in Smittybilt’s XRC series, which runs from 9,500 lb up to 17,500 lb.

Smittybilt equips the GEN2 with a series-wound 6.6 hp motor and a three-stage planetary gear system with revised gear ratios. The winch is intended for heavier recovery loads, where the extra capacity over the 12K model matters. Smittybilt’s solenoid box can be mounted in three positions, which helps fit the electrical system around the rest of the vehicle’s equipment. Choose the position before the cable is run so the leads reach without strain.

The package carries a Lifetime Mechanical Warranty and a 3 Year Electrical Warranty. Buyers who want synthetic rope rather than cable should look at the XRC Comp Series.

Key features

  • 15500 lb line pull rating
  • Series-wound 6.6 hp motor
  • Three-stage planetary gear system with revised ratios

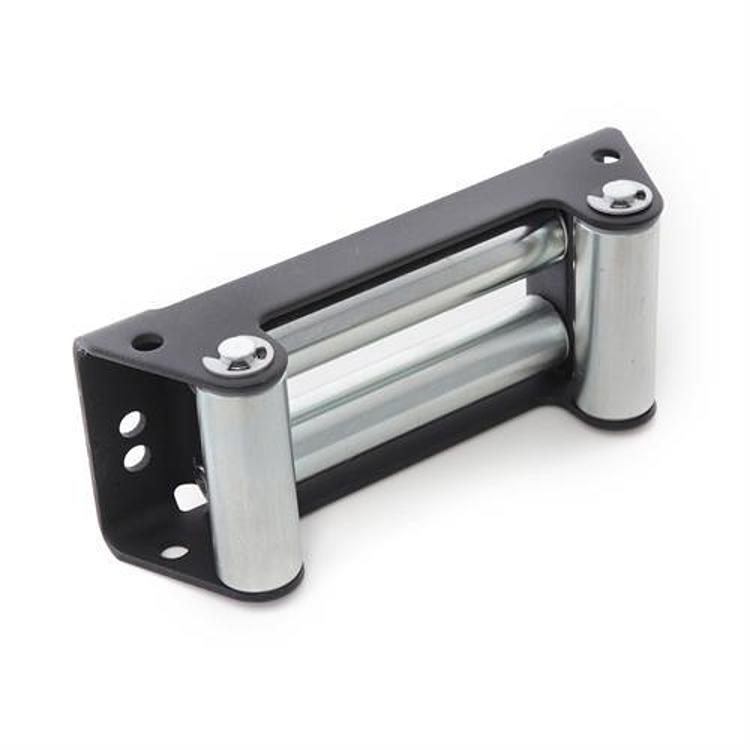

  • Four-way roller fairlead on cable
  • Forged steel tow hook
  • Solenoid box mountable in three positions
  • UV-resistant matte black finish with stainless hardware

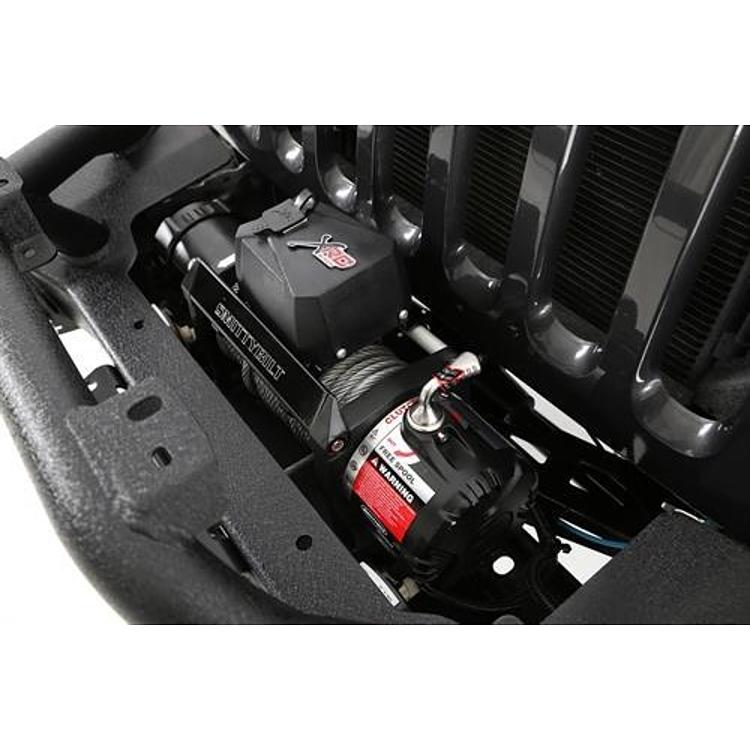

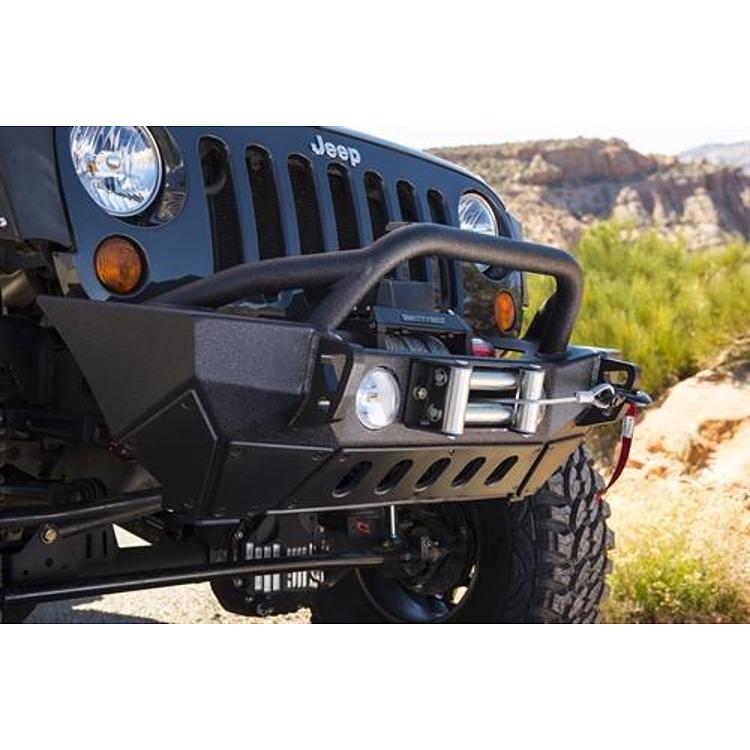

Mounting a heavy-capacity winch

A winch with this much capacity puts large forces through the mounting plate, bumper and frame. Before mounting, check that the bumper is rated for the winch’s weight and that the plate bolts into solid structure. A mount that flexes under load can crack welds and loosen fasteners over time.

Plan the solenoid box location before the cable is run, so the leads reach without strain and stay out of the path of the rope. Keep the box clear of heat and water where it can, and check the wiring after each season of hard use.

Use recovery gear rated above the winch’s pull. Shackles, straps and D-rings should be inspected for deformation before each recovery, and any gear that has been overloaded should be retired.

  • Confirm the bumper and frame can carry the load
  • Plan the solenoid box location before running cable
  • Retire any recovery gear that has been overloaded

Specifications

Brand Smittybilt
Part number 97415
Rated line pull 15500 lb
Motor 6.6 hp, series wound
Gear system Three-stage planetary
Fairlead Four-way roller

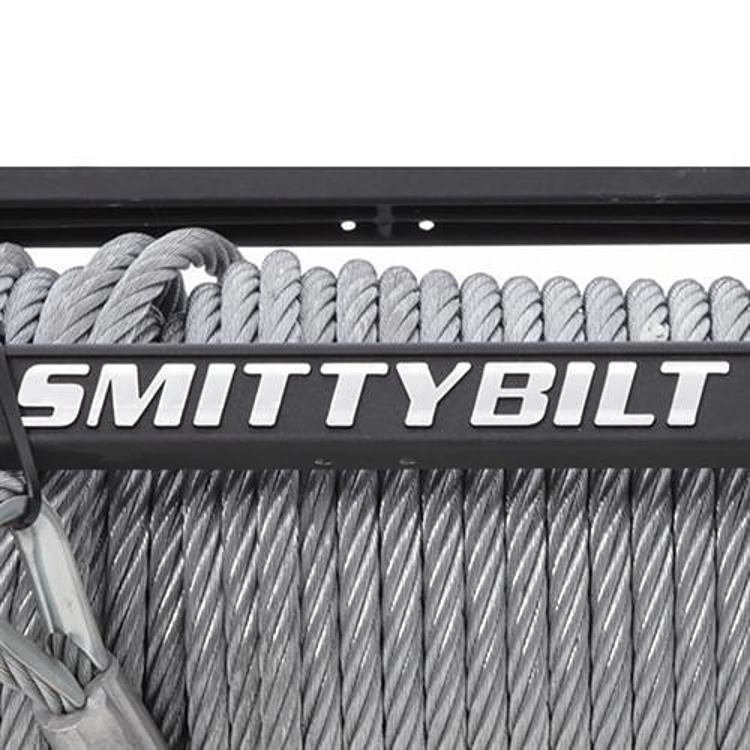

Line type Cable
Tow hook Forged steel
Solenoid box Mountable in three positions
Finish UV-resistant matte black, stainless steel hardware, aluminum crossbars
Warranty Lifetime mechanical, 3 year electrical

Vehicle fitment

The winch is a universal-fit model. Check the mounting plate and bumper on your vehicle before ordering, since a 15500 lb winch needs a solid mount.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mount the solenoid box in one of its three positions and keep the cable clear of the solenoid and the tow hook’s path. Keep people out of the line when the winch is loaded.

What’s included

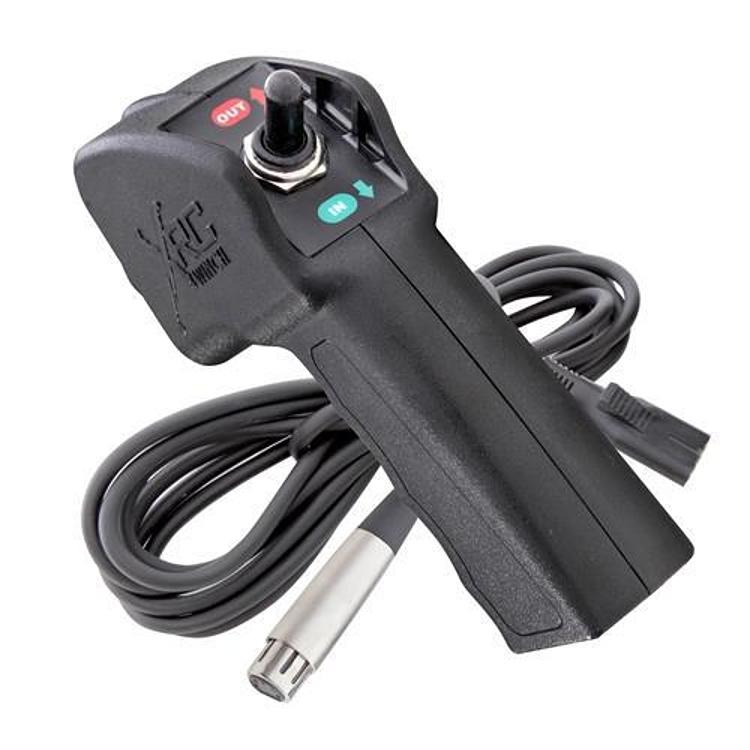

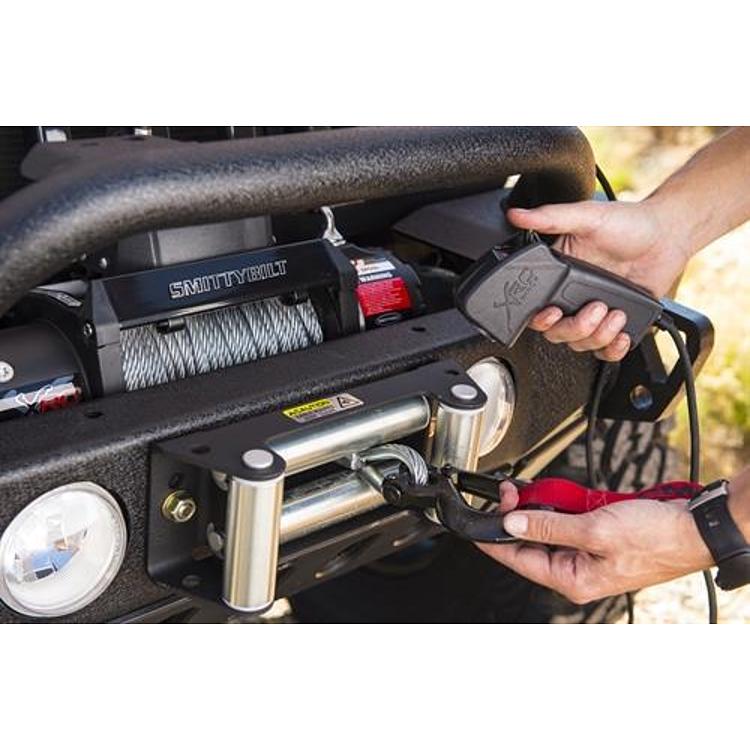

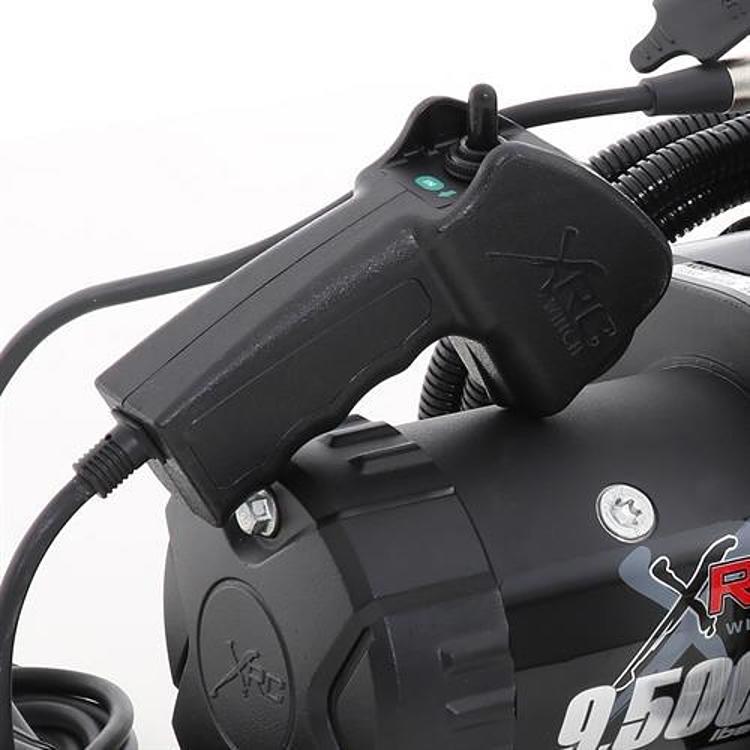

The heavy-duty winch controller and forged steel tow hook are part of the XRC winch. Confirm the mounting hardware and other contents before ordering.

SKU: S/B97415 Category:

Specification

Shipping weight 124.00 lbs
Package dimensions 23.50 × 10.70 × 8.40 in
brands

Questions & Answers

What is the line pull of the Smittybilt 97415?

The XRC 15.5K GEN2 97415 is rated for 15500 lb line pull. It uses cable with a four-way roller fairlead and a forged steel tow hook.

How does the 97415 differ from the 97412?

The 97415 has a 15500 lb line pull rating, the higher capacity of the two. Both are XRC GEN2 winches with cable and a roller fairlead.

Does the 97415 use synthetic rope?

No. The 97415 uses cable. Smittybilt's XRC Comp Series is the synthetic rope option for buyers who want that line type.

Does a higher-capacity winch need a stronger tow strap?

Yes. A strap, chain or shackle should be rated above the winch's line pull, and the rating should match the heaviest pull you expect. Inspect rigging for wear and deformation before each recovery.
