Overview

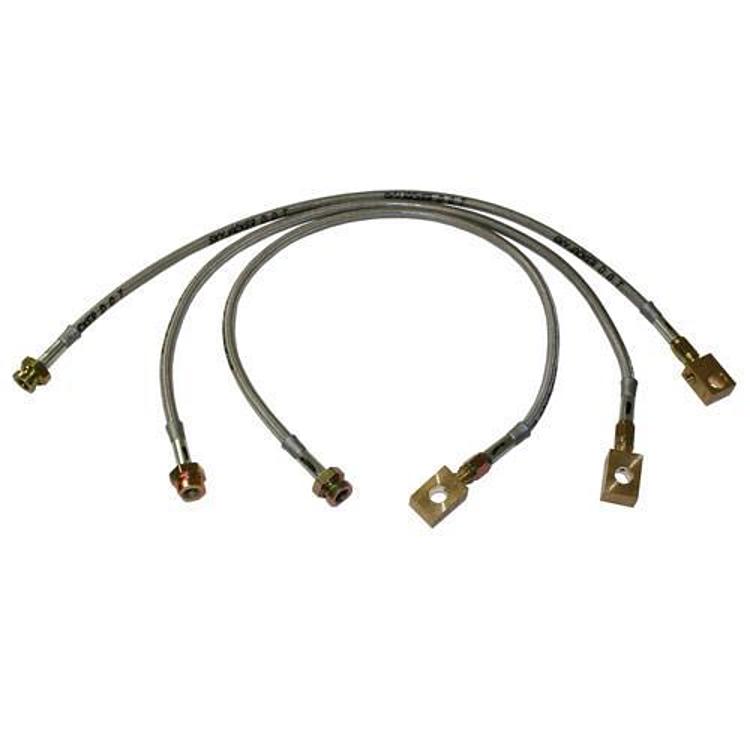

The Skyjacker FBL88 is a pair of front stainless steel brake lines for late-1980s to 1990s Chevrolet and GMC four-wheel-drive trucks, made for 4 to 6 inches of lift.
Skyjacker builds the pair from braided stainless steel with heavy-duty off-road brass fittings and an extruded polyurethane outer coating, and states they are DOT certified and European T.U.V. approved.
Key features
- Front lines, one pair per box
- For 4 inch to 6 inch lifts
- Braided stainless steel with polyurethane coating
- Heavy-duty brass fittings
- DOT certified and T.U.V. approved
- Limited lifetime warranty
Choosing a lift height
Lift height changes the geometry of the front brake line, because the axle moves down and the hose has to reach a different length. A line sized for a moderate lift may be too short or too tight at a higher setting, so matching the line to the lift you actually run is important. Where the lift is in the middle of a range, look closely at how the hose sits at full droop and full compression.
Many K-series trucks have a lot of suspension travel built in, and that travel is where a brake line can get pinched or stretched. Route the line with plenty of slack and keep it clear of the control arms, tie rod and steering box. A well-chosen line makes the front end easier to maintain over time.
- Check hose length at full droop and compression
- Keep the line clear of control arms and tie rods
- Match the line to the lift you run
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | FBL88 |
| UPC | 803696131467 |
| Type | Braided stainless steel brake lines |
| Position | Front |
| Quantity | Pair |
| Lift height | 4 inches to 6 inches |
| Fittings | Heavy-duty off-road brass |
| Outer coating | Extruded polyurethane |
| Approvals | DOT certified, European T.U.V. approved |
| Fitment type | Direct fit |
| Warranty | Limited lifetime |
Vehicle fitment
The FBL88 fits the 1988–1998 Chevrolet K1500 and K2500, the 1992–1998 Chevrolet K1500 and K2500 Suburbans, the 1992–1994 Blazer and the 1995–1999 Tahoe. It also fits the 1988–1998 GMC K1500, the 1988–2000 GMC K2500, the 1992–1998 Suburbans and Yukon, and the 1998 C3500.
Chevrolet and GMC trucks built before 1988 are not on this list, apart from the model years shown above. Confirm your vehicle’s year, model and trim before ordering.
