Overview

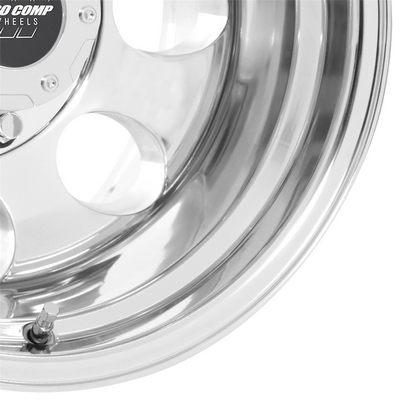

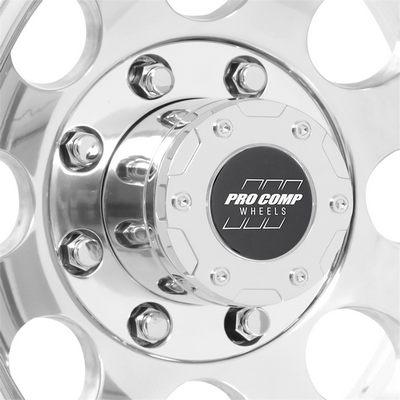

The Pro Comp PXA1069-8970 is an 18×9 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and an 8 on 170 bolt pattern. It is sold as one wheel with a center bore of 125 and an offset of -6.
Low-pressure cast aluminum construction combines a styled face with light weight. This polished 9-inch-wide rim has a backspacing of 4.75, and its high offset design is aimed at brake clearance on performance trucks and sport utility vehicles.
Key features
- Low-pressure cast aluminum construction
- Holes style face
- 18-inch diameter, 9-inch width
- 8 on 170 bolt pattern
- Center bore of 125
- Offset -6 with 4.75 backspacing
Before you buy
Wheel fit starts at the hub. Count the lug holes, measure their spacing across the bolt holes, and check the center bore against the pilot on your hub. A wheel with the right bolt pattern can still rub if the offset is wrong, so the -6 figure should be compared with the fender lip and caliper body before the tire goes on.
Tire choice matters on an 18-inch rim. A taller tire needs more clearance at the fender and suspension at full compression, and a wider tire changes how far the sidewall sits outboard. Mount the tire on the rim, then check steering lock and suspension travel with the vehicle loaded. Lug nut seat style is worth checking before the first installation, since a mismatched seat can loosen under road vibration.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA1069-8970 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Polished |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | -6 |
| Backspacing | 4.75 |
Vehicle fitment
Fitment depends on the hub. It requires an 8 on 170 hub with a 125 center bore, and the -6 offset needs a check against the fender and caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight lug holes at 170 must line up with the hub. Confirm the 125 center bore matches the pilot, and test-fit the 18-inch rim with the tire before the vehicle goes off road.
What’s included
One 18×9 polished aluminum wheel.
