Overview
The Rugged Ridge 11540.08 is the XHD front bumper base, a center section with a winch mount, for the 2007-2018 Jeep Wrangler JK in 2 and 4-door models. It is the core piece of Rugged Ridge’s modular XHD bumper system.
The modular system lets you add other XHD pieces to build your preferred bumper look. This base is powder-coated steel in a mid width. Light mounts and D-ring mounts are not part of it.
Key features
- Center base section of the XHD bumper system
- Winch mount included
- Modular design for customizing the bumper
- Powder-coated steel
- Direct fit for 2 and 4-door models
Planning a modular bumper
A modular bumper is built one section at a time, so it helps to plan the final look before buying the first piece. The center base carries the winch mount and sets the width of the front, while the remaining pieces add the outer sections and finish. Mixing parts from the same system keeps the joints, finish and hardware consistent across the bumper.
Fit the base to a sound frame and check the bumper’s bolt pattern before stacking other pieces onto it. Heavy winches and accessories add load, so confirm that the bumper and the mounts you plan to use are rated for that work. Keep a record of which pieces you have fitted so future replacements match the finish.
- Choose the finish before buying additional pieces
- Check frame and bolt condition before fitting
- Confirm winch and accessory loads against the mounts
- Keep a record of fitted parts
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11540.08 |
| UPC | 804314269043 |
| Product type | XHD front bumper base, center section |
| Position | Front |
| Finish | Powder coat |
| Material | Steel |
| Width | Mid |
| Winch mount | Included |
| Light mounts | Not included |
| D-ring mount | Not included |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2007-2018 Jeep Wrangler JK in 2 and 4-door models.
Other Wrangler generations are not in the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included

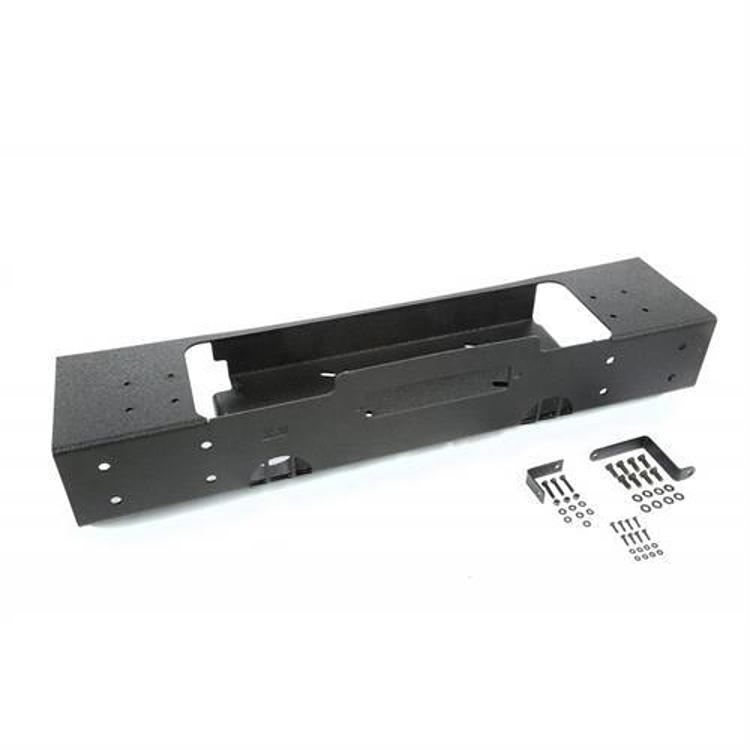

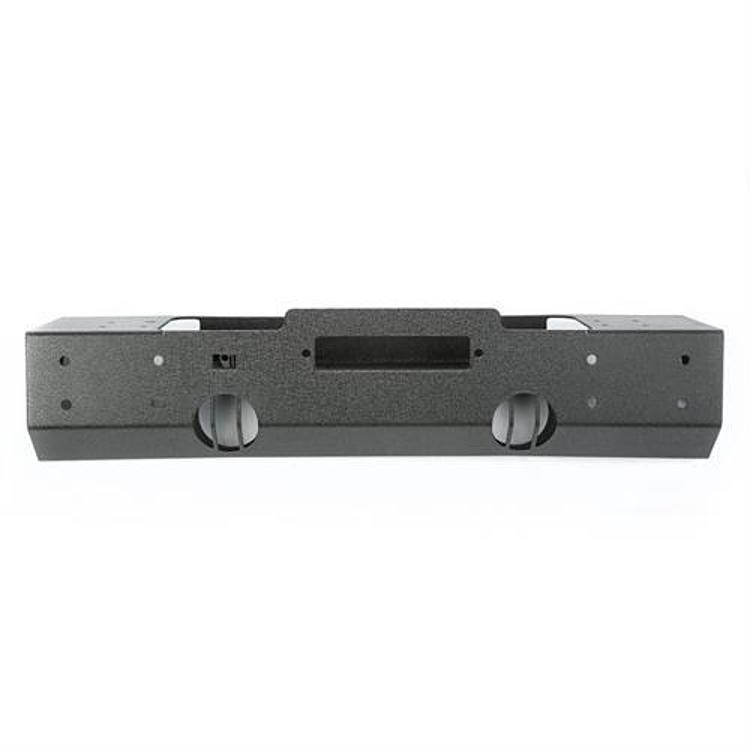

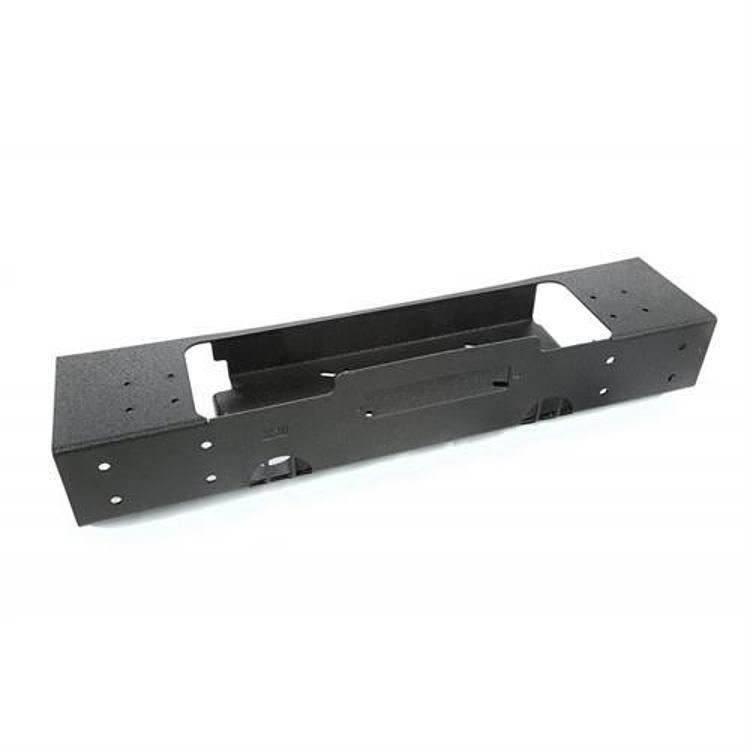

XHD base center section with winch mount.
Not included: Bumper ends, hoop over-rider, D-rings and light mounts are separate.
