Overview

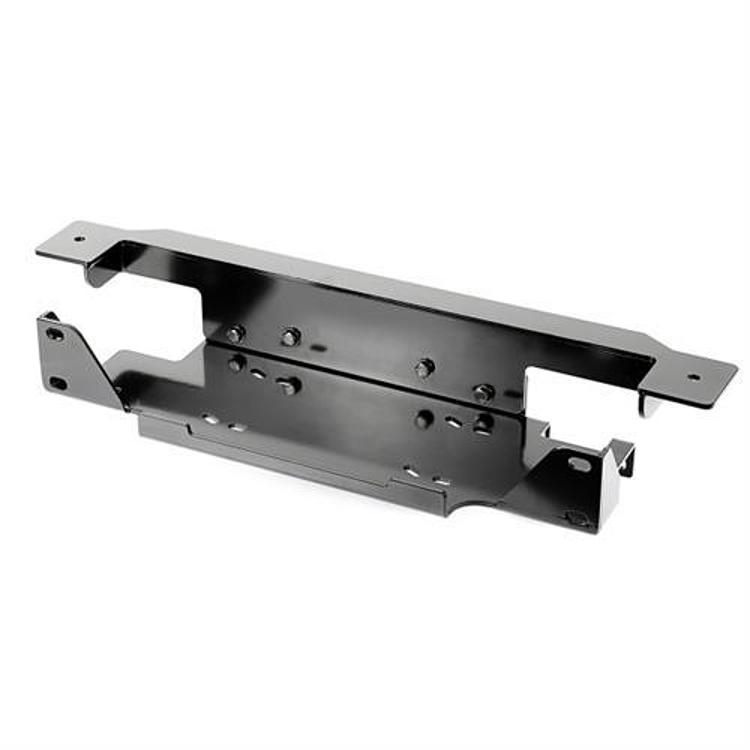

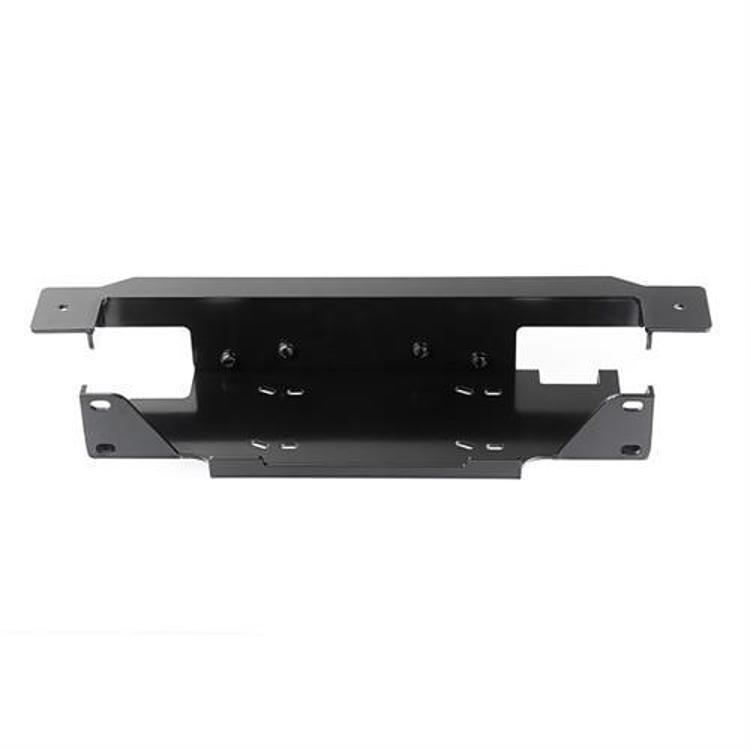

The Rugged Ridge 11543.15 is a black steel winch plate for the factory steel front bumpers on the 2013-2018 Jeep Wrangler JK. Rugged Ridge names the 2013 Wrangler 10th Anniversary Rubicon, the 2014 Rubicon X and the 2015 Rubicon Hard Rock as models with those bumpers.
The two-piece design lets you mount a winch while hiding the vehicle’s frame for a sleeker look. The plate is heavily gusseted for strength and rigidity, and it uses class 10.9 hardware for secure mounting. Its black finish is both E-coated and powder coated for corrosion resistance.
Key features
- Two-piece steel winch plate
- Hides the frame behind the winch
- Heavily gusseted for strength
- E-coated and powder coated black finish
- Class 10.9 hardware included
- Fits the factory steel front bumper
Winch plate installation checks
A winch on a factory bumper puts load on bolts and brackets that were not designed for winching, so the mounting setup matters. Before installation, confirm the winch’s bolt pattern and that the plate’s mounting holes line up with the bumper. Use the class 10.9 hardware for every mounting point and avoid substituting lower grade bolts, since mismatched fasteners can loosen under load.
Winch cable routing deserves attention. Keep the fairlead clear of the bumper face and the plate edges, and check that the cable does not rub on the frame. Look over the mounts and hardware after each recovery and after the first trail runs. Since the plate hides the frame, check for cracks in the bumper around the plate edges during routine inspections. Winch controllers and battery cables should have clear routes that stay away from hot or moving parts.
- Torque class 10.9 bolts to the correct value
- Inspect bumper edges around the plate for cracks
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11543.15 |
| UPC | 804314267629 |
| Product type | Winch plate for factory front bumper |
| Finish | Black, E-coated and powder coated |
| Material | Steel |
| Hardware | Class 10.9 |
| Winch mount | Included |
| Light mounts | Not included |
| D-ring mount | Not included |
| Fit type | Direct fit |
Vehicle fitment
The 11543.15 fits the 2013-2018 Jeep Wrangler JK. It is designed for the factory steel front bumpers on the 2013 10th Anniversary Rubicon, 2014 Rubicon X and 2015 Rubicon Hard Rock.
It is made for the factory steel bumper, not for aftermarket bumpers. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The plate mounts to the factory steel front bumper using the class 10.9 hardware.
What’s included
Two-piece steel winch plate with class 10.9 hardware.
Not included: The winch is not included.
