Overview

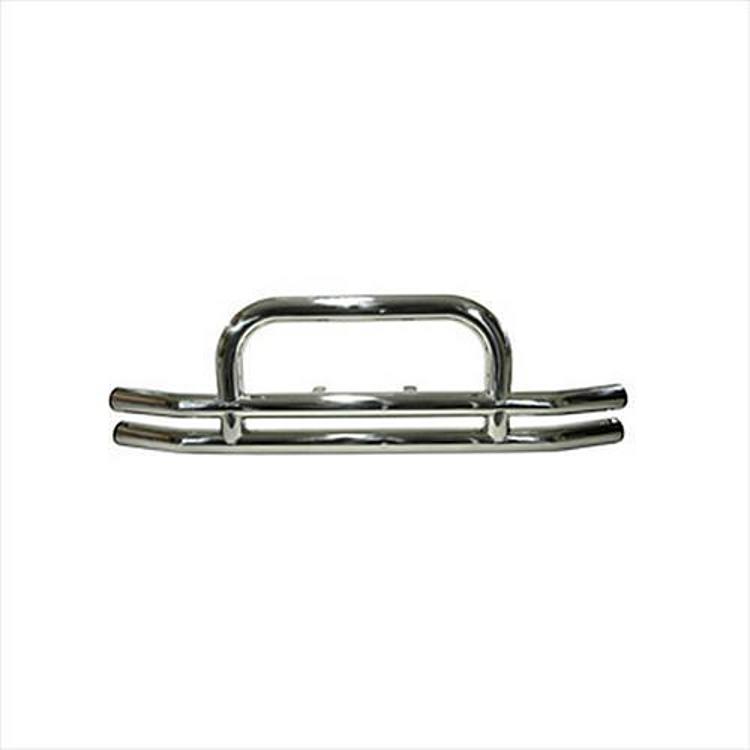

The Rugged Ridge 11520.01 is a 3 inch double tube front bumper with an over-rider hoop, made of polished 304 stainless steel. It fits Jeep CJ models, the Scrambler and Wranglers from 1987 through 2006.
Welded end caps seal the ends so moisture stays out of the tube. It bolts on with no drilling and has no mounts for a winch, lights or D-rings.
Key features
- 3 inch double tube design with over-rider hoop
- Polished 304 stainless steel
- Welded end caps seal the tube ends
- Bolt-on installation, no drilling
- Full width
Stainless tube bumper care
A stainless tube bumper stays cleaner than painted steel, but road salt, mud and trail grit still collect on the tube and welds. Rinsing after trail trips and winter driving keeps the finish looking fresh. The welded end caps keep moisture out of the tube, so the main care points are the surface, the bolts and the mounting points on the frame.
Check the mounting bolts after rough trail use, since a bumper that moves on its brackets can wear the holes and the surrounding metal. Look at the welds for hairline cracks, and at the bolt holes for elongation. Stainless polish can restore shine, but use it sparingly and wipe it off so it does not build up on the tube.
- Rinse salt and mud after trail trips
- Check bolts and brackets after rough use
- Inspect welds for hairline cracks
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11520.01 |
| UPC | 804314076818 |
| Product type | Double tube front bumper with hoop |
| Position | Front |
| Tube size | 3 inch |
| Finish | Stainless steel, polished |
| Material | 304 stainless steel |
| Width | Full |
| Light mounts | Not included |
| Winch mount | Not included |
| D-ring mount | Not included |
| Fit type | Direct fit |
Vehicle fitment
It fits the Willys CJ-3, CJ-5 and CJ-6 (1955–1958), the CJ3, CJ5 and CJ6, the 1976–1986 CJ7, the 1981–1985 Scrambler, the 1987–1995 Wrangler YJ, the 1997–2006 Wrangler TJ and the 2004–2006 Wrangler Unlimited LJ.
The 2007-2018 Wrangler JK is not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It is an easy bolt-on installation that needs no drilling.
What’s included
Double tube front bumper with over-rider hoop and welded end caps.
Not included: Winch mount, light mounts and D-ring mounts are not part of this bumper.
