Overview

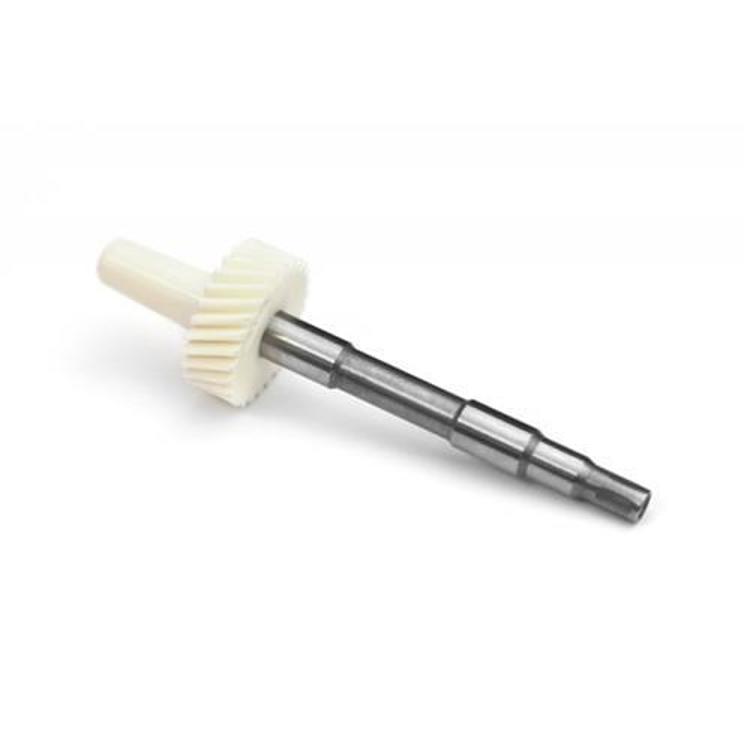

The Rugged Ridge 18760.34 is a 42 tooth long shaft speedometer gear for cable-driven speedometers. It is a direct OE replacement for 84-93 Jeep Cherokee, 55-86 CJ, 86-92 Comanche, 93 Grand Cherokee and 87-93 Wrangler vehicles.
Installation is a bolt-on job, and the speedometer must be the cable type for this gear to match.
Key features
- 42 tooth count on a long shaft
- Direct OE replacement speedometer gear
- Bolt-on installation described by the brand
- Cable speedometer applications
Cable speedometer checks
A speedometer gear sits in the speedometer drive, where it turns the cable or sensor that tells the gauge how fast the vehicle is moving. When the gear wears or the teeth strip, the needle can read low, jump or stop. Because the gear sets the signal the gauge expects, a different tooth count changes the reading, so the new gear should match the original.
Before removing the old gear, look at the cable end and the gear housing for wear, cracked teeth or a loose retainer. Long shaft gears sit deeper in the housing, so measure how far the old shaft extends before buying a replacement. Replace the cable too if it is stiff or kinked, since a binding cable can make a new gear read erratically.
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18760.34 |
| UPC | 804314254766 |
| Tooth count | 42 teeth |
| Shaft length | Long shaft |
| Speedometer type | Cable |
Vehicle fitment
Rugged Ridge lists 84-93 Jeep Cherokee, 55-86 CJ, 86-92 Comanche, 93 Grand Cherokee and 87-93 Wrangler with cable speedometers. Universal Fit appears on the product, but the years and cable type are the working limits.
This gear is made for cable speedometers. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the speedometer is cable-driven, then compare the shaft length with the gear you are replacing.
What’s included
The package contains the speedometer gear, part 18760.34, and nothing else.
