Overview

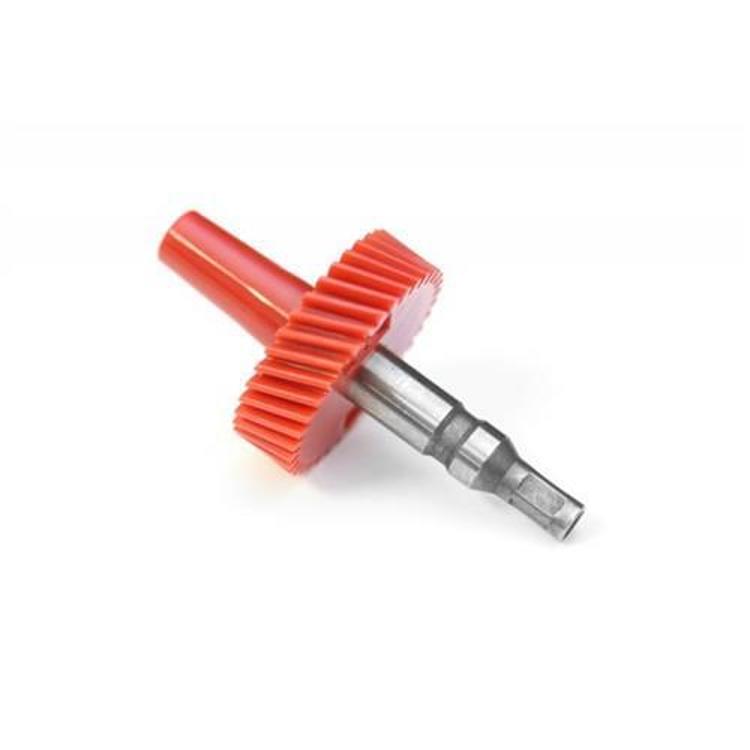

The Rugged Ridge 18760.31 is a 41 tooth short shaft speedometer gear for electrically driven speedometers on 93-01 Jeep Cherokee, 93-98 Grand Cherokee and 93-06 Wrangler vehicles. It is a direct replacement and needs no drilling.
Check your speedometer type before buying, since this gear is made for electric speedometers. Compare the shaft length with the gear you are replacing before ordering.
Key features
- 41 tooth count on a short shaft
- Direct replacement speedometer gear
- No drilling required, per the brand
- Electrically driven speedometer applications
Shaft length and fit checks
Shaft length decides how far the gear sits in the speedometer drive housing. A gear that sits too deep or too shallow can bind or fail to engage the sensor. Measure the old gear’s shaft before ordering, and set the new gear to the same depth during installation.
Installation without drilling keeps the vehicle body intact, but it still needs care. Clean mating surfaces, turn the gear by hand to check for smooth rotation, and reassemble with fresh lubricant if the old gear was dry. A short test drive will show whether the reading settles.
- Measure the old shaft before ordering
- Set the new gear to the same depth
- Turn the gear by hand to check smoothness
- Check the reading on a short drive
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18760.31 |
| UPC | 804314254735 |
| Tooth count | 41 teeth |
| Shaft length | Short shaft |
| Speedometer type | Electric |
| Drilling | No drilling required |
Vehicle fitment
Rugged Ridge lists 93-01 Jeep Cherokee, 93-98 Grand Cherokee and 93-06 Wrangler vehicles fitted with an electric speedometer. The Universal Fit label does not extend those limits.
Cable speedometer applications are not covered. Verify year, model and trim against your vehicle before ordering.
Installation notes
Rugged Ridge says no drilling is required. Compare the shaft length with your original gear before installing.
What’s included
The package is the speedometer gear, part 18760.31. Check the package contents against your installation before fitting.
