Overview

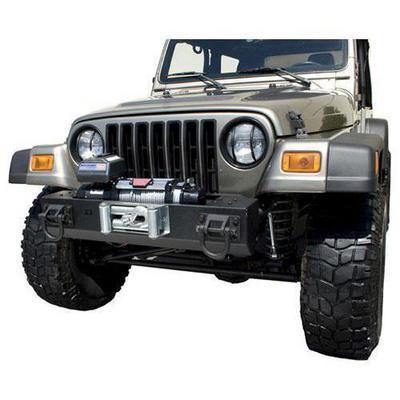

The Rugged Ridge Short Base Winch Mount Front Bumper Center Section, part number RUG11540.40, is the stubby center section of the XHD modular front bumper system. It is built from steel with a black powder coat and fits the 1976–1983 Jeep CJ5, 1976–1986 CJ7, 1981–1985 Scrambler, 1987–1995 Wrangler (YJ), 1997–2006 Wrangler (TJ) and 2004–2006 Wrangler (LJ).
The center section attaches to the frame with two enclosed D-ring mounting brackets. The four-bolt frame mount creates two heavy-duty pull points. Because the mounts sit close in on the frame rails, the bumper sits nearer the body, which raises the approach angle, and the narrow overall width leaves room for the front tires.
Key features
- Stubby short base center section for the XHD modular bumper system
- Winch mount compatible
- Two enclosed D-ring mounting brackets and a four-bolt frame mount
- Side filler plates close off the ends for a finished look
- Narrow overall width for front tire clearance
Frame clearance and the winch
A short base center section keeps the front end compact, which matters when picking a line through tight trails. Because the four-bolt frame mount pulls the bumper closer to the body, check that the winch housing, hood latch and radiator area still clear the bumper once everything is fitted. Measure winch depth against the mount before installing, since a deeper winch can meet the body or lights.
Pull-point loads go straight into the frame, so the frame bolts and D-ring brackets should be inspected regularly. Look for cracked welds, elongated bolt holes or loose nuts after heavy recoveries. Keep the black powder coat intact, and touch up chips to slow corrosion on exposed steel near the mounting points.
- Confirm winch depth clears the body and radiator
- Inspect D-ring brackets after heavy recoveries
- Re-check frame bolts on a regular schedule
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | RUG11540.40 |
| Position | Front |
| Width | Stubby |
| Material | Steel |
| Finish | Powder coat, black |
| Winch mount | Compatible |
| D-ring mounts | Included |
| Light mounts | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1976–1983 Jeep CJ5, the 1976–1986 CJ7, the 1981–1985 Scrambler, the 1987–1995 Wrangler (YJ), the 1997–2006 Wrangler (TJ) and the 2004–2006 Wrangler (LJ).
The list does not include the Wrangler JK or JL, the Gladiator, or any Wrangler model year after 2006. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
It bolts to the frame with the four-bolt frame mount and the two D-ring brackets. Because the mount brings the bumper closer to the body, check that the bumper clears the body and the factory fender openings when you fit it.
What’s included
The short base center section, two enclosed D-ring mounting brackets and side filler plates for the ends.
Not included: Light mounts are not included. The product is the center section of the modular system, so the stinger, the full bumper ends and any other sections are separate.
