Rubicon Express U-Bolt Kit for Ford 8.8 – RE1230

Rubicon Express

Shop Rubicon Express Axle U-Bolt Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

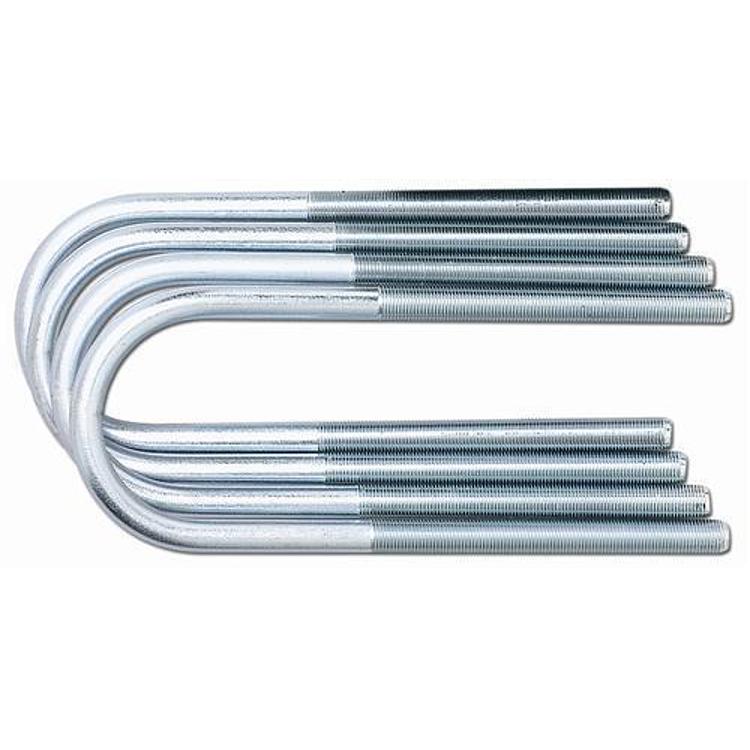

  • Rubicon Express RE1230 U-bolt kit for 3.25-inch axle tubes
  • Four U-bolts and nuts included
  • 1/2-inch rod, 3.25-inch ID, 9-inch length

Description

Overview

The Rubicon Express RE1230 is a U-bolt kit with four U-bolts and nuts. It is sized for axle tubes with a 3.25-inch diameter.

The U-bolts are 1/2-inch rod with a 3.25-inch inside diameter and a 9-inch length. The axle tube diameter is what the kit is sized to, so measure it before fitting.

Installing U-bolts on a solid axle

U-bolts clamp the spring pack to the axle, so the clamp force depends on even tightening. Start every nut by hand, then tighten them in a criss-cross pattern so the spring seat stays square under the axle tube. Uneven tightening can twist the pack and cause the U-bolts to load unevenly. Keep the spring pack centered on the axle before final tightening, since a shifted pack changes the clamp load.

Check that the U-bolt bends clear the axle tube and spring pack without rubbing. Look at the threads and nuts before installation, and replace any that are rounded or damaged. Expect some settling after the first drives, so recheck nut tightness after a short run and again after any hard off-road use.

Specifications

Brand Rubicon Express
Part number RE1230
UPC 614901437645
Size 3.25 inches by 8 inches
Included 4 U-bolts and nuts
Axle tube diameter 3.25 inches
Rod diameter 1/2 inch
Inside diameter 3.25 inches
Length 9 inches
Fitment Universal fit

Vehicle fitment

No vehicle is named. The title refers to the Ford 8.8 axle, which is an axle name, so confirm the axle tube size on your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering, and measure the axle tube diameter.

SKU: R/ERE1230 Category:

Specification

Shipping weight 5.40 lbs
Package dimensions 9.00 × 5.30 × 3.30 in
brands

Questions & Answers

What axle does the RE1230 fit?

The kit is made for the Ford 8.8 axle, and it is sized for axle tubes with a 3.25-inch diameter. Measure your axle tube before ordering to confirm it matches.

How many U-bolts come with the RE1230?

The kit includes four U-bolts and nuts. The rods are 1/2 inch in diameter and 9 inches long, with a 3.25-inch inside diameter.

Is the RE1230 universal fit?

Yes, it is universal fit, but the kit is sized to a 3.25-inch axle tube. Confirm the tube diameter on your vehicle before ordering.

How often should U-bolts be rechecked?

Check them after the first few drives on a new install, then at regular service intervals and after hard trail use. Look for loose nuts, bent U-bolts and a spring pack that has shifted on the axle.
