Rubicon Express Leaf Spring Center Pins 5/16 Inch /Pair – RE1482

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

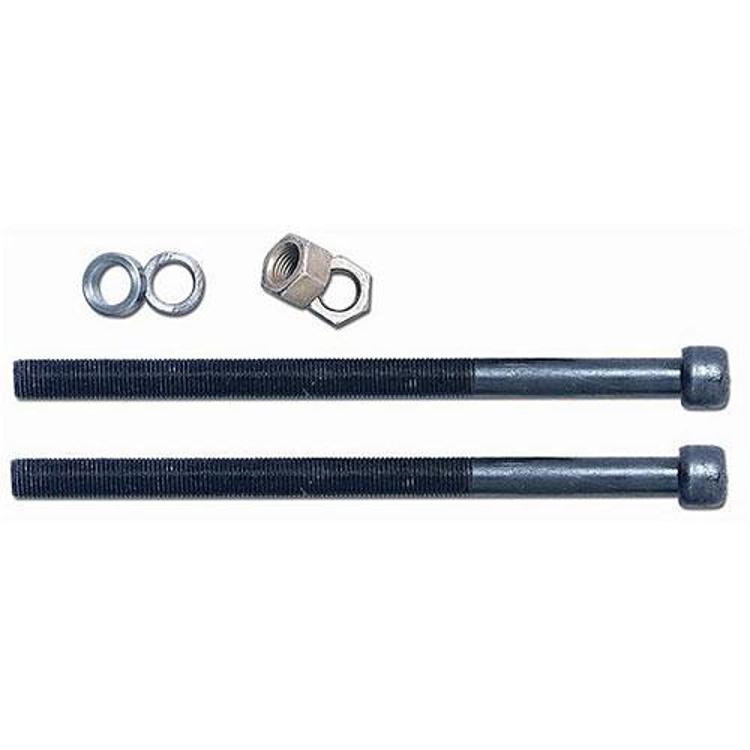

  • Rubicon Express RE1482 leaf spring center pins, 5/16 inch, sold as a pair
  • Pairs come with nuts for leaf spring applications
  • Pins are longer than needed and are cut down after installation
  • Universal design for leaf spring applications

Description

Overview

The Rubicon Express RE1482 is a pair of 5/16 inch leaf spring center pins with nuts, made for leaf spring applications. Rubicon Express says to choose the pin diameter for your application before ordering.

The pins are longer than needed, and Rubicon Express says they are meant to be cut down after installation. The pair comes with nuts.

Key features

  • 5/16 inch pin diameter
  • Sold as a pair, with nuts
  • Pin length can be cut down to fit after installation
  • Designed for leaf spring applications
  • It has a universal design for leaf spring applications.

Before cutting pins to length

Center pins locate the leaf spring pack on the axle perch and keep the leaves from shifting side to side under load. Because the pin is the point where the pack is held in place, the fit matters as much as the length. Test the pin in the spring eye and perch before any cutting, and confirm the diameter is correct for the holes you already have.

Mark the cut line with the pin installed and the axle at its normal ride height. A cutoff wheel or hacksaw works well, and a file or deburring tool should remove sharp edges so the nut seats cleanly. Leave enough thread for the nut to engage fully. Once the pins are trimmed, tighten the nuts evenly and re-check them after the first few drives.

  • Inspect old pins for bending, flat spots or elongated holes
  • Replace worn perch seats along with the pins if they show wear
  • Re-check nut torque after the first few trail runs

Specifications

Brand Rubicon Express
Part number RE1482
UPC 614901438451
Pin diameter 5/16 inch
Application Leaf spring
Quantity Pair, with nuts
Pin length Longer than needed, to be cut to fit

Vehicle fitment

Choose the pin diameter to suit your spring setup rather than selecting by model year. Check fit against your vehicle’s year, model and trim before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the pins are longer than needed, cut them down to length after installation. Confirm that the diameter fits your spring and perch holes before cutting.

What’s included

A pair of center pins with nuts.

SKU: R/ERE1482 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 6.00 × 4.00 × 4.00 in
brands

Questions & Answers

What diameter are the RE1482 center pins?

They are 5/16 inch in diameter. Rubicon Express says to choose the pin diameter for your application, so confirm the size suits your springs before ordering.

Do the RE1482 center pins come with nuts?

Yes. The pins are sold as a pair with nuts. Since the pins are longer than needed, they will need to be cut down after installation.

Do the RE1482 pins need to be cut?

The pin length is longer than needed, so the pins are cut down after installation. Plan on trimming them to fit your spring pack.

How can you tell a center pin is worn?

Look for bent pins, a spring that sits off center on the perch, or shiny wear marks where the pin meets the spring. Worn pins can let the pack shift under load, so replace them and re-check the nuts after installation.
