Overview
The Rubicon Express 2602 is a heavy duty Y-link steering kit that replaces the factory tie rod and drag link with a direct bolt-on upgrade. It fits the Jeep Wrangler YJ and TJ, Cherokee XJ, Comanche MJ and Grand Cherokee ZJ.
The kit is built from 1-3/8-inch 4130 chromoly, with 7/8-inch Moog Problem Solver tie rod ends. The Y-link design is intended to reduce bump steer and avoid suspension bind during articulation. The drag link adjuster is set while the kit is on the vehicle.
Key features
- 1-3/8-inch 4130 chromoly construction
- 7/8-inch Moog Problem Solver tie rod ends
- Direct bolt-on installation
- Adjustable while on the vehicle
- Steering stabilizer mount included
- Powder coat finish for corrosion resistance
Before you buy
A steering kit changes how the front wheels connect to the steering box, so it affects every turn and every trail crossing. Before ordering, look at what the kit replaces and what it leaves in place, such as the steering box, pitman arm and steering stabilizer. Many owners replace the tie rod ends, sleeves and boots on the same job, since worn parts can handle the new geometry poorly.
After installation, check the toe setting and steering alignment, then recheck the drag link adjuster and clamp bolts after the first few drives. Inspect the ball joints and boots at regular service intervals, especially after rough trail use, because a torn boot lets grit into the joint and speeds up wear. Tighter steering after a Y-link install is normal, but a loose feel is not.
- Check the steering box and pitman arm for wear
- Inspect boots and grease fittings at each service
- Re-torque bolts after the first few trail runs
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | 2602 |
| UPC | 614901272338 |
| Tube material | 1-3/8-inch 4130 chromoly |
| Tie rod ends | 7/8-inch Moog Problem Solver |
| Finish | Powder coat |
| Stabilizer mount | Included |
Vehicle fitment
The kit fits the 1987 to 2006 Jeep Wrangler YJ and TJ, the 1984 to 2001 Cherokee XJ, the 1986 to 1992 Comanche MJ and the 1993 to 1998 Grand Cherokee ZJ.
Each generation has its own year range, so check the range for your model before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is a direct bolt-on that replaces the factory tie rod and drag link, and the adjuster is set on the vehicle. After installation, check the steering alignment and the toe setting.

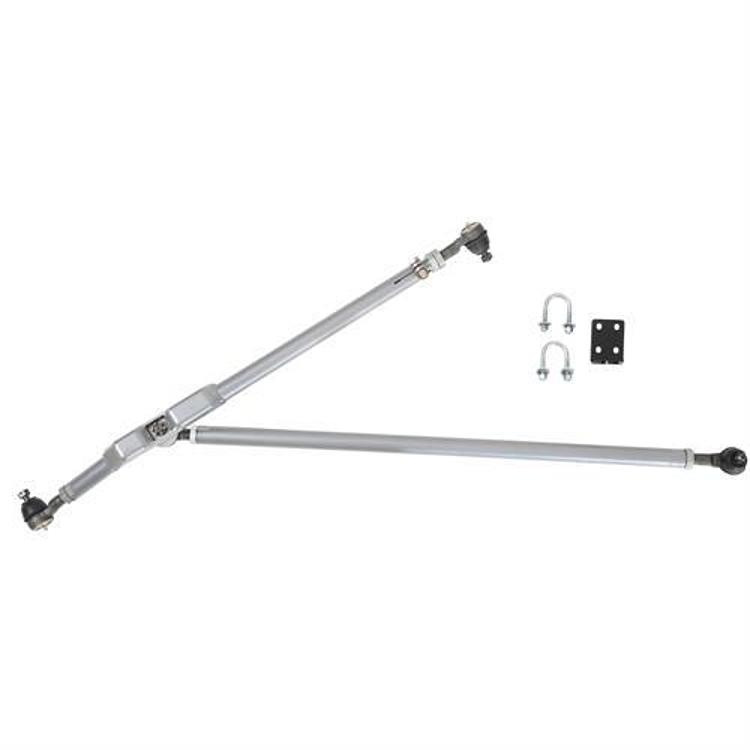

What’s included

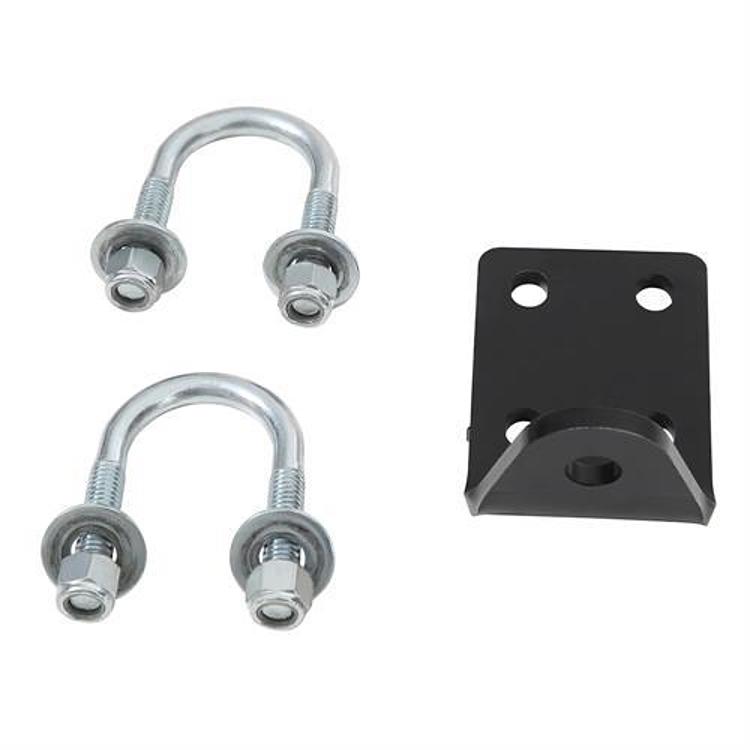

The Y-link steering kit with 1-3/8-inch chromoly components, Moog tie rod ends and the steering stabilizer mount.
