Rubicon Express Extreme-Duty Long Arm Rear Tri-Link Suspension Upgrade Kit – RE7531

Rubicon Express

Shop Jeep Wrangler TJ Long Arm Upgrade on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Extreme-Duty long arm tri-link upgrade for TJ owners
  • Requires an existing Super-Flex short arm system
  • Chromoly long arms and PT-Meg Super-Ride bushings
  • Three-piece belly pan for transfer case and transmission access
  • Bolt-on for Dana 35 and Dana 44 rear ends

Description

Overview

The Rubicon Express RE7531 is an Extreme-Duty Long Arm Rear Tri-Link upgrade for Jeep Wrangler TJ owners who already run a Super-Flex short arm suspension. It is designed to improve on-road handling with a close-to-stock ride and to perform on demanding trails.

The tri-link layout removes the rear track bar, which allows true up and down wheel travel and adds anti-squat for steep climbs. The kit is bolt-on for factory Dana 35 and Dana 44 rear ends and includes front and rear control arms made from 4130 chromoly with a .250 wall.

Key features

  • Chromoly Extreme-Duty long arms
  • PT-Meg Super-Ride bushings
  • Three-piece belly pan
  • Rear stainless steel brake lines
  • Builder Ball misalignment joint with up to 32 degrees of misalignment
  • Eliminates the rear track bar

Tri-link maintenance and setup

A tri-link layout controls the axle with arms rather than a track bar, so the axle position and steering stability depend on the arms and their joints. Keeping the bushings, joints and brake lines in good shape helps the axle stay where it belongs under load. Because the geometry changes with travel, the setup is best checked after any change to lift or tires.

Stainless steel brake lines should be routed clear of moving parts and the axle through full travel. Check for kinks, rub points and fitting leaks after the install and again after a few trail sessions. Keep the belly pan secured, since it protects the transfer case and transmission from debris.

  • Check brake lines for rub points after install
  • Inspect the belly pan fasteners on a regular basis
  • Confirm axle alignment after lift or tire changes

Specifications

Brand Rubicon Express
Part number RE7531
UPC 614901442106
Suspension type Long arm tri-link
Rear axle Dana 35 or Dana 44
Control arm tubing 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees

Vehicle fitment

It fits the Jeep Wrangler TJ in the 1997 to 2006 range, for owners who already run a Super-Flex short arm system.

It is for the TJ only, so later Wranglers and the LJ are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The three-piece belly pan is part of the kit and must be fitted for transfer case and transmission access. Lift height depends on the system being upgraded, so confirm the current setup first, then check alignment and driveline angles after the work is finished.

The kit includes rear stainless steel brake lines. The Builder Ball allows up to 32 degrees of misalignment and sits in a 3-inch OD housing. Lift is set by the existing short arm system being upgraded.

Fitment to the rear is for factory Dana 35 and Dana 44 axles. Lift height depends on the system being upgraded, so check the package contents against the parts you need before the install.

What’s included

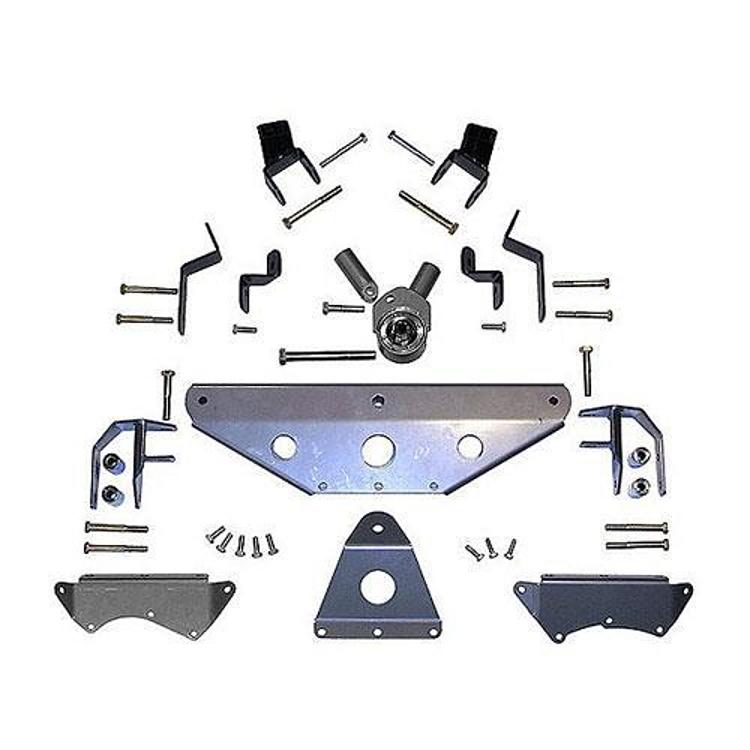

Front and rear chromoly control arms, PT-Meg Super-Ride bushings, the three-piece belly pan, rear stainless steel brake lines and the Builder Ball misalignment joint.

SKU: R/ERE7531 Category:

Specification

Shipping weight 292.35 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7531 fit a 2001 Jeep Wrangler TJ?

Yes. It is for the Jeep Wrangler TJ in the 1997 to 2006 range, which covers a 2001 TJ. Confirm your vehicle's trim and that you already have the Super-Flex short arm system before ordering.

Does this upgrade remove the rear track bar?

Yes. The tri-link layout eliminates the rear track bar, allowing true up and down wheel travel and adding anti-squat for steep climbs on the trail.

Which axles does it bolt onto?

It is bolt-on for factory Dana 35 and Dana 44 rear ends. Confirm your rear axle before ordering, since the kit is designed around those two axle types.

Is a belly pan needed with this upgrade?

The three-piece belly pan is part of the kit and is needed for transfer case and transmission access, so install it as part of the upgrade. Check clearance around the pan after installation.

How do I know the brake lines are routed correctly?

Route the stainless steel lines clear of moving parts and the axle. Check for kinks and rub points after the arm is installed and the suspension has cycled through its travel.
