Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link – No Shocks – RE7524

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7524 4.5 inch Extreme-Duty long arm lift kit with rear Tri-Link, no shocks
  • Listed fit: 2004–2006 Jeep Wrangler LJ Unlimited
  • Chromoly long arms, Builder Ball and adjustable control arms with Super-Flex spherical ball joints
  • Lift height range 3 to 4.99 inches; tuned lift springs

Description

Overview

The Rubicon Express RE7524 is a 4.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link for the 2004–2006 Jeep Wrangler LJ Unlimited. The lift height range is 3 to 4.99 inches, and shocks are not included.

The kit replaces the suspension with longer control arms, carrying the long arm approach used on the TJ over to the Wrangler Unlimited. The design improves lifted geometry and adds stability, with less torque roll and better trail traction than a short arm system.

The rear Tri-Link replaces the rear track bar and lets the axle travel straight up and down. It adds anti-squat on steep climbs and improves on-road tracking.

Key features

  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link in place of the rear track bar
  • Builder Ball misalignment joint, rated for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • New PT-Meg Super-Ride bushings for on and off-road performance
  • Tuned lift springs
  • Three-piece belly pan for transfer case and transmission access

Shock selection for LJ owners

This kit ships without shocks, so the shock choice falls to the buyer. Wrangler Unlimited models carry a longer wheelbase and heavier body, so shocks rated for the load and the new arm angles help keep the ride controlled. Choose shocks sized for the lifted geometry rather than matching the old stock length.

Long arm installs change how the axle moves at full droop and full bump, so the bump stops and brake hoses deserve a look before the first drive. Check the driveshaft angle, since the new arms alter its position relative to the transfer case. Keep the three-piece belly pan in mind when routing lines and checking clearance around the transfer case and transmission. A short test drive on a familiar road helps catch any new noises early.

Specifications

Brand Rubicon Express
Part number RE7524
UPC 614901442076
Lift height range 3 to 4.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Shocks included No
Fitment Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ), including the Unlimited and Unlimited Rubicon models.

Fit covers the Unlimited models only. Make sure your body style and trim match before buying.

Installation notes

Long arm conversions change alignment and driveline angles, so have both checked after installation. The kit bolts on to factory Dana 35 and Dana 44 rear ends.

What’s included

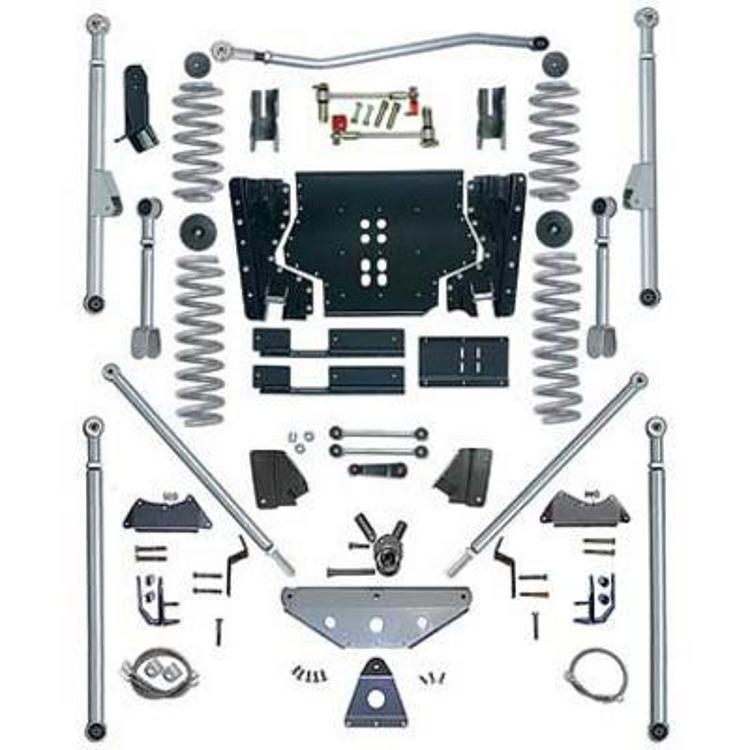

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs and a three-piece belly pan.

Not included: shocks.

SKU: R/ERE7524 Category:

Specification

Shipping weight 406.65 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7524 fit a 2006 Jeep Wrangler Unlimited?

Yes. It fits 2004 to 2006 Wrangler LJ Unlimited and Unlimited Rubicon models, so a 2006 Unlimited is covered. Check your trim against this before ordering.

Does the RE7524 include shocks?

No. The kit is sold without shocks, so you will need your current shocks or a separate set for the 4.5 inch lift.

Is the RE7524 for the two-door Wrangler?

No. The kit fits the Unlimited models, so a standard two-door LJ is not covered. Check your body style before buying.

Should the bump stops be checked during a long arm install?

Yes. Check the bump stops and brake hose routing after the new control arms are fitted, since arm angles change how the axle moves at full droop. Recheck the driveshaft angle as well.
