Overview

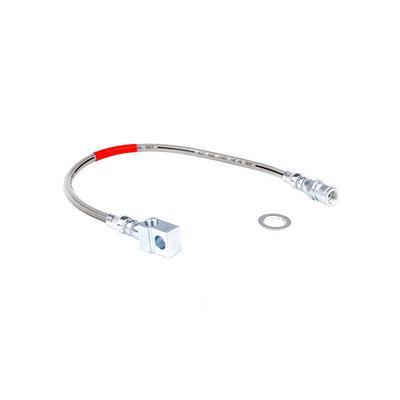

The Rough Country 89335S is an 18.25 inch extended rear stainless steel brake line for straight-axle Chevrolet and GMC trucks, Blazers, Suburbans and Jimmys, recommended for 4 to 6 inches of suspension lift.
Rough Country designed the line for owners who want to replace worn or decaying factory rubber brake lines with extra length for a lifted application. The braided stainless steel exterior keeps rocks, mud and debris from damaging the line, and hollow fasteners at both ends provide a leak-free flow path. Rough Country says its DOT approved extended line kits give the extra length needed for lifted applications.
Key features
- Rear brake line, 18.25 inches long
- DOT approved
- Braided stainless steel exterior that protects against off-road debris
- Teflon inner layer kept from expanding, even under 4,000 psi
- Pressure tested to 4,000 psi
- High-quality hollow fasteners at both ends
- Hardware included
- Firmer brake pedal feel
Lifted rear brake lines
Extended rear lines replace the factory rubber run when a lift stretches the distance between the axle and the frame. The extra length has to be routed without tension, since a line pulled tight can crack its fittings as the axle moves. Slack is also a concern, so the line should be clipped away from the springs, shocks and any moving component, with room for the axle to cycle.
Braided stainless lines resist abrasion better than rubber, but the sleeve can still fray when it rubs against a bracket. Inspect the fittings for seepage and the braid for wear after the first few drives, and recheck the clips after trail use. Bleed the rear brakes after installation and test the pedal in a safe area before heading out. Keep brake fluid fresh and sealed.
Specifications
| Brand | Rough Country |
|---|---|
| Part number | 89335S |
| Type | Extended braided stainless steel brake line |
| Position | Rear |
| Length | 18.25 inches |
| Material | Stainless steel |
| Pressure test | 4,000 psi |
| Recommended lift | 4 inches to 6 inches |
| Axle type | Straight axle models only |
| Fitment type | Direct fit |
| Standard | DOT approved |
Vehicle fitment
The 89335S fits straight-axle Chevrolet and GMC models, including 1971–1986 K10 and K20 pickups and Suburbans, 1975–1986 K5 Blazers, 1983–1991 S10 Blazers, 1987–1991 V-series Suburbans, and GMC Jimmy, S15 Jimmy and K1500 to K2500 trucks. Years vary by model, from 1971 to 1991.
It is for straight-axle models only. With less than 4 inches of lift, the extra length may leave slack that needs routing away from pinch areas. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Rough Country recommends this line for models with 4 inches to 6 inches of suspension lift. On vehicles with less than 4 inches of lift, the extra length can leave slack that has to be kept clear of pinch areas. The kit includes hardware.
What’s included
The extended rear brake line and hardware. Brake fluid and bleeding supplies are not included.
