RockJock Universal Antirock Kit – CE-9902-18

RockJock 4x4

Shop RockJock 4X4 Sway Bar Assemblies on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock universal Antirock sway bar kit with a 45-inch torsion bar and 18-inch steel arms
  • Weld-in tube and threaded links, cut to length for your own build
  • Fabrication required, not a bolt-on kit
  • Part number CE-9902-18

Description

Overview

The RockJock CE-9902-18 is a universal Antirock sway bar kit for custom rigs and rock buggies. It has a 45-inch torsion bar and 18-inch fabricated steel arms. These kits are intended for builders making their own rigs, and they require fabrication for installation, so they are not bolt-on kits.

Vertical links use a 14-inch threaded rod with 1/2-20 thread that can be cut to length. The kit includes 1/2-inch heim joint rod ends, jam nuts and tabs to weld to the axle tube. A universal weld-in DOM tube, 1.75-inch by .095 wall, is supplied and must be cut to suit the torsion bar length. Delrin bushings support the bar inside the tube. The bar diameter is .800 for the 45-inch torsion bar.

Key features

  • 45-inch torsion bar with a .800 diameter
  • 18-inch fabricated steel arms
  • 14-inch threaded rod for vertical links, cut to length
  • Heim joint rod ends, jam nuts and axle tabs supplied
  • 1.75-inch DOM weld-in tube with Delrin bushings

Planning a weld-in build

Weld-in sway bar systems give the builder control over arm position, bar placement and link geometry, which is why they suit custom rigs. The axle tube and frame must be prepared before welding, and the tabs should be fitted and checked for alignment before the final weld. Measure twice, because a tube cut too short cannot be lengthened without new material.

Delrin bushings reduce friction inside the tube but still wear over time, so check them whenever the bar is removed for service. Cut-to-length links need clean threads and secure jam nuts, and heim joints should be greased or inspected for play. Plan for a grinder, welder and drilling tools before starting, and inspect the welds once the rig has been driven over rough terrain.

  • Dry fit the tabs before welding
  • Clean threads before cutting the rod
  • Grease heim joints on a regular schedule
  • Inspect welds after the first rough run

Specifications

Brand RockJock 4×4
Part number CE-9902-18
Product type Universal Antirock sway bar kit
Torsion bar 45 inches, .800 diameter
Arms 18-inch fabricated steel
Vertical links 14-inch threaded rod, 1/2-20 thread, cut to length
Tube 1.75-inch DOM, .095 wall, weld-in
Bushings Delrin
Installation Fabrication required, not bolt-on
Fitment type Universal fit

Vehicle fitment

No vehicle is named for this kit. It is a universal fit, and the parts are cut and welded to suit a custom build, so no truck is tied to the kit.

Because the kit is a vehicle-sized suspension part that must be fabricated, universal fit does not confirm that it suits any particular truck. Confirm the application with RockJock before fitting.

Installation notes

The tube must be cut to length to work with the torsion bar, and the tabs are welded to the axle tube. These kits are not bolt-on.

What’s included

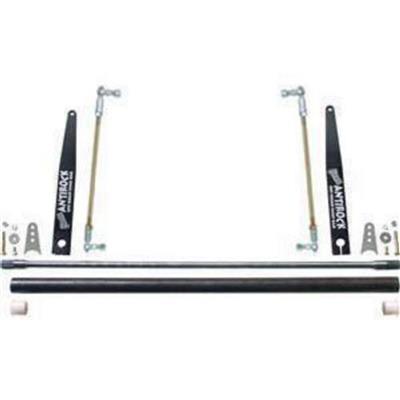

The kit includes the 45-inch torsion bar, 18-inch arms, the 14-inch threaded rod, heim joint rod ends, jam nuts, axle tabs, the weld-in DOM tube and Delrin bushings.

Questions & Answers

Is this kit a bolt-on install?

No. RockJock says these universal kits require fabricating for installation and are not bolt-on. The tube must be cut and the tabs welded to the axle tube.

How long is the torsion bar in this kit?

The torsion bar is 45 inches long with a .800 diameter. The weld-in tube is cut to suit that length.

Which vehicles does the CE-9902-18 fit?

No vehicle is named for this universal kit, which is built for custom rigs and rock buggies. Confirm fit for your build before fitting it to any truck.

Can the tube be cut to any length?

No. Cut the tube so it matches the torsion bar length and leaves room for the bushings and mounts. Dry fit the parts first, mark the cut carefully, and keep the bar centered so it rotates freely inside the tube.
