Rock Krawler Krawler Joint

Rock Krawler

Shop Rock Krawler Heim Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler RK03527 Pro Krawler Joint with 7/8 Inches – 14 right hand shank
  • 14 mm bore
  • Chromoly housing and billet 52100 steel ball
  • Universal fit with no vehicle named.

Description

Overview

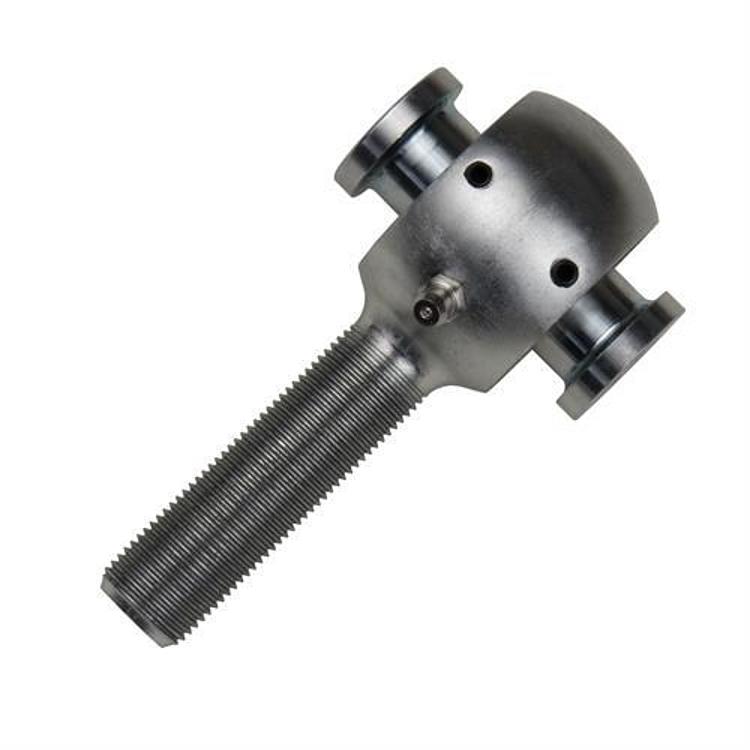

The Rock Krawler RK03527 is a Pro Krawler Joint with a 7/8 Inches – 14 right hand shank and a 14 mm bore. It offers up to +/-30 degrees of misalignment and is universal fit, so it is not tied to a specific vehicle.

The housing is chromoly, heat treated and zinc plated. The billet 52100 steel ball has a hard chrome plating, and the raceway is built to handle wear and high frequency vibration. The joint is made to tight tolerances.

Key features

  • 7/8 Inches – 14 right hand shank
  • 14 mm bore
  • Chromoly housing, heat treated and zinc plated
  • Billet 52100 steel ball with hard chrome plating
  • Articulation of up to +/-30 degrees, a 60 degree total per side

Before you buy

A rod end joint carries load and movement at the same time, so its job depends on how the arm and the mount work together. Before fitting, measure the existing joint and mounting point so the new one sits square and clears nearby brackets at full articulation. Check that the threaded tube has enough thread engagement and that the jam nut can be tightened against it.

Joints with a steel ball and a chromoly housing are usually chosen for trail use where repeated flex and impacts are expected. Inspect the boot or seal area and the ball for grit, pitting or play after each season of hard use, and regrease where the design allows. Replace the joint when play becomes noticeable, since a worn ball can change alignment across the whole suspension.

Specifications

Brand Rock Krawler
Part number RK03527
UPC 700007719411
Shank 7/8 Inches – 14
Bore 14 mm
Thread direction Right Hand
Housing Chromoly, heat treated, zinc plated
Ball Billet 52100 steel, hard chrome plated
Misalignment Up to +/-30 degrees
Fitment Universal Fit

Vehicle fitment

This joint is universal fit and is not matched to a vehicle, year or chassis code. Its 7/8 Inches – 14 shank and 14 mm bore must match your arm or link. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 14 mm bore is metric while the shank is a 7/8 Inches – 14 thread, so confirm both sizes against your mounting point and threaded tube before fitting.

What’s included

One Pro Krawler Joint, right hand thread. No hardware is listed.

SKU: RKSRK03527 Category:

Specification

Shipping weight 1.60 lbs
Package dimensions 5.50 × 4.30 × 2.40 in
brands

Questions & Answers

What shank and bore does the RK03527 have?

It has a 7/8 Inches - 14 right hand shank and a 14 mm bore. The bore is metric while the shank is an inch thread, so check both against your mounting point before fitting.

Is the RK03527 universal fit?

Yes, it is universal fit. No vehicle, year or chassis code is tied to it, so it is not matched to one application. Confirm the shank and bore against your arm or link before fitting.

How much misalignment does it allow?

It provides up to +/-30 degrees of misalignment, which is a 60 degree total per side. Use that range as the reference when planning your articulation angle.

How often should a Krawler joint be inspected?

Inspect it after every trail trip and again before each season. Look for play in the ball, cracks in the housing, and grit around the ball. Tighten the jam nut and check the threads for damage, and replace the joint if movement increases.
