Rock Krawler Krawler Joint

Rock Krawler

$60.54In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Krawler Pro Krawler Joint with 1 inch shank and right hand thread
  • Chromoly housing, zinc plated; hard chrome plated billet 52100 steel ball
  • Up to +/-30 degrees of misalignment, 60 degrees total per side
  • Universal fit with no vehicle named.

Description

Overview

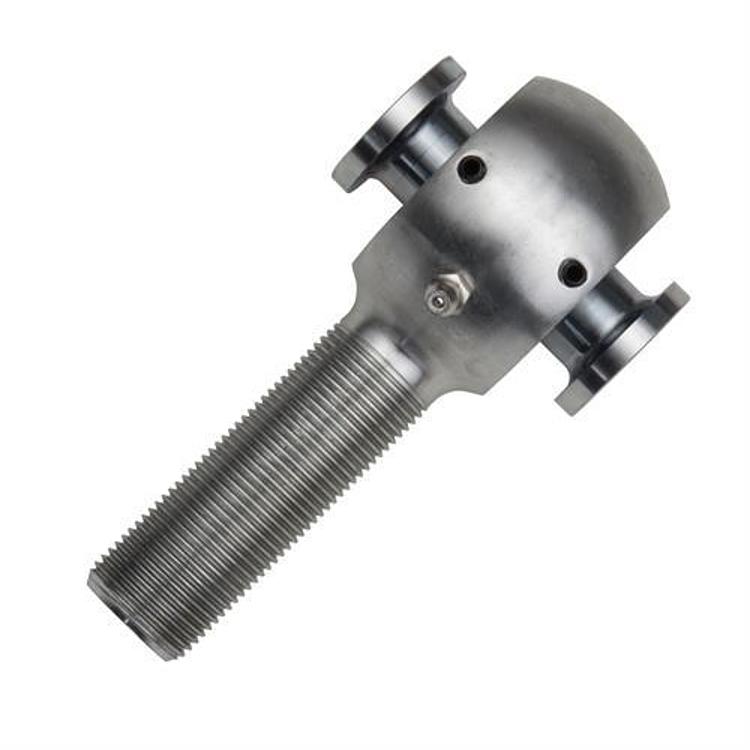

The Rock Krawler RK02219 is a Pro Krawler Joint with a 1 inch shank and right hand thread, made for off-road suspension builds that need up to +/-30 degrees of misalignment. It is a universal fit joint, so check the shank and bore against your arm or link.

The housing is chromoly, heat treated and zinc plated for strength and corrosion resistance. The inner ball is hard chrome plated billet 52100 steel. An inner raceway resists wear and isolates high frequency vibration.

Key features

  • Chromoly housing, heat treated then zinc plated
  • Hard chrome plated billet 52100 steel ball
  • Inner raceway for wear resistance and high frequency vibration isolation
  • Up to +/-30 degrees of misalignment, 60 degrees total per side
  • Made to tight tolerances for consistent fit.
  • Right hand thread

Choosing a joint for articulation

Articulation is the main reason to choose a joint like this over a standard bushing. A heim-style joint lets the link pivot through a wide angle, which keeps the suspension working as the axle moves over uneven ground. Plan the angle before buying by checking how far the arm will travel at full droop and full compression.

Joints in this range are often replaced in pairs with the other suspension links, since matched wear is common across a linkage. Check the housing for cracks and the ball for play at each service, and keep the joint clean so grit does not reach the raceway.

  • Plan articulation at full droop and compression
  • Replace joints in pairs when wear is matched
  • Inspect housings for cracks at each service

Specifications

Brand Rock Krawler
Part number RK02219
UPC 70000512135
Shank 1 Inch
Bore 0.5625
Thread direction Right Hand
Housing Chromoly, heat treated, zinc plated
Ball Hard chrome plated billet 52100 steel
Misalignment Up to +/-30 degrees (60 degrees total per side)
Fitment Universal Fit

Vehicle fitment

It is a universal fit joint, with no vehicle, make or chassis code tied to it. Use the 1 inch shank and 0.5625 bore to confirm it suits your link before fitting.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One Pro Krawler Joint, right hand thread. No hardware or accessories are included.

SKU: RKSRK02219 Category:

Specification

Shipping weight 2.40 lbs
Package dimensions 10.00 × 3.00 × 3.00 in
brands

Questions & Answers

Will the RK02219 fit my Jeep?

It is a universal fit joint and no vehicle is named, so it is not matched to any particular vehicle. Check the 1 inch shank and the 0.5625 bore against your arm or link before fitting.

How much misalignment does the Pro Krawler Joint provide?

Up to +/-30 degrees, which Rock Krawler describes as a total of 60 degrees of misalignment per side. The body and clevis mounting width ratio is the design feature behind that range.

Is the RK02219 the left hand version?

No. This is the right hand thread model. The left hand version is part RK02219L, a separate part number with the same shank, bore and misalignment range.

Do heim joints need a boot or dust cover?

Many rod ends run without a boot, so dirt and water can reach the ball. Clean and inspect the joint after off-road use, and re-grease it if a grease fitting is present. Use a boot only where the design allows one.
