Overview

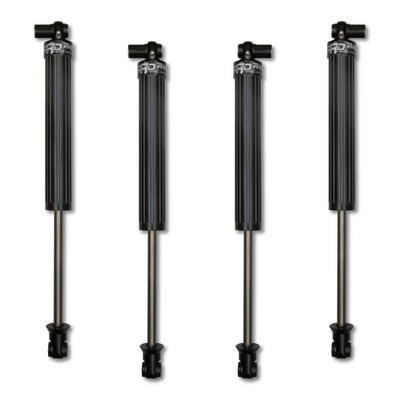

The RRD02309 is a 2.25 RRD shock package for a 4.5 inch lift on 2018 to 2026 Jeep Wrangler JL trucks. It is a direct fit for the 2018 to 2026 JL trims covered below.
The shock body is fluted aluminum, which keeps weight down while maintaining strength. The fluting adds surface area to help the shock shed heat. The 2.25 inch aluminum bodies are designed to match the strength of steel 2.25 inch bodies.
The bodies have a military grade hard anodized coating, which Rock Krawler says protects against corrosion. Dual DU bearings support a 3/4-inch Nitrotec steel shaft. The shaft is bare rather than chrome plated, which the company says avoids the pitting and flaking that can damage the seals. A billet aluminum valve circuit with digressive valving controls the damping, and redundant sealing is used to keep the shock oil in place.
The shock oil is formulated for fade-free damping and smooth rebounds, with a high viscosity index and good shear stability. A custom Teflon valve circuit wear band reduces body wear, and the package is lighter than comparable steel 2.25 inch shocks while cooling faster for fade resistance.
Key features
- Fluted aluminum 2.25 inch shock body
- Military grade hard anodized coating on the body
- Dual DU bearings for the shaft
- 3/4-inch Nitrotec steel shaft, bare rather than chrome plated
- Billet aluminum valve circuit with digressive valving
- Redundant sealing and a custom Teflon valve circuit wear band
Matching a 4.5 inch lift
A 4.5 inch lift changes the length a shock must cover, so the shock’s stroke and mount positions need to suit the new suspension height. Measure the current lift and the original shock length before fitting, and confirm the shock’s valving suits the terrain you drive. A 2.25 inch body gives the shock more room for oil and a larger piston, which helps damping hold up on repeated hard hits.
Heat and oil movement are the main long-term concerns with a shock like this. Keep the body clean, check the bearings and the shaft for scoring, and look for oil film on the shaft after trail use. Shock service typically involves the seals and bearings, so keep spare seals on hand for long trips.
- Measure the lift height and original shock length
- Check the shaft for scoring and oil film
- Keep the bearings and seals serviced
Specifications
| Brand | Rock Krawler |
|---|---|
| Part number | RKSRRD02309 |
| Shock series | RRD 2.25 |
| Body | Fluted aluminum, 2.25 inch |
| Shaft | 3/4-inch Nitrotec steel, bare |
| Valving | Billet aluminum valve circuit, digressive |
| Lift | 4.5 inch |
| Fitment type | Direct fit |
| Vehicle | Jeep Wrangler JL, 2018 to 2026 |
Vehicle fitment
The package covers the 2018 to 2026 Jeep Wrangler JL, including the 2-door Rubicon, Sport, Sport S, Freedom, Islander, Willys and 80th Anniversary trims, and the 4-door Unlimited versions of those trims. It also includes the Moab, High Altitude, Sahara, Willys Sport and Rubicon 392 trims.
The list covers only the 2018 to 2026 JL, and earlier Wrangler generations are not included. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package is a direct fit. Check the package contents, including shocks, hardware and quantity, against your installation before fitting.
