Rock Hard 4X4 Freedom Series Body Mount Tire Carrier – RH-5050

Rock Hard 4x4 Parts

Shop Jeep Wrangler JK Tire Carriers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Hard 4×4 Parts RH-5050 Freedom Series body mount tire carrier for 07-Current Jeep Wrangler JK, 2 and 4 Door
  • Replaces tailgate hinges and supports up to a 37 inch spare tire
  • Bolt-on install with no cutting, drilling or welding

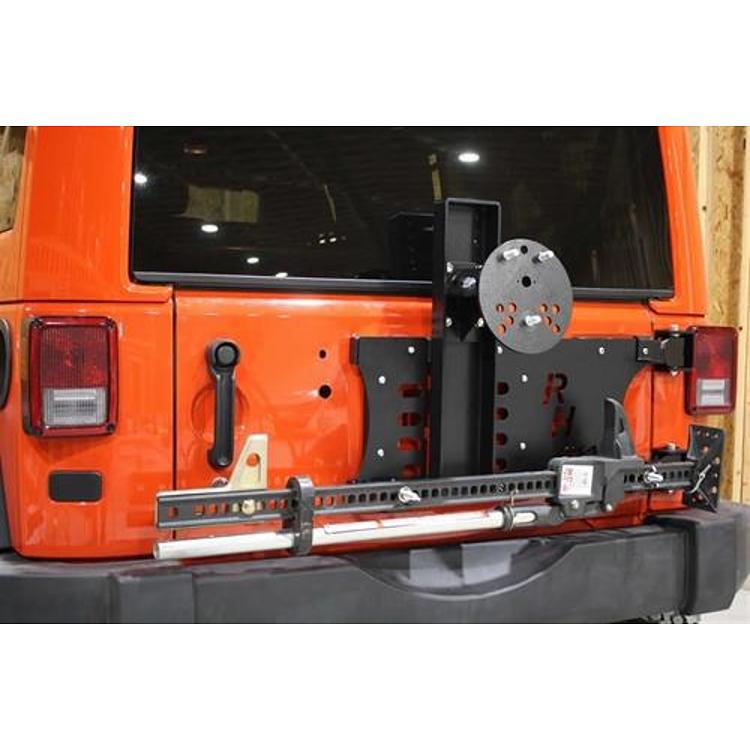

  • Hi-Lift jack mount and CB antenna mount included
  • Tank mount and cargo basket options; black powder coat finish

Description

Overview

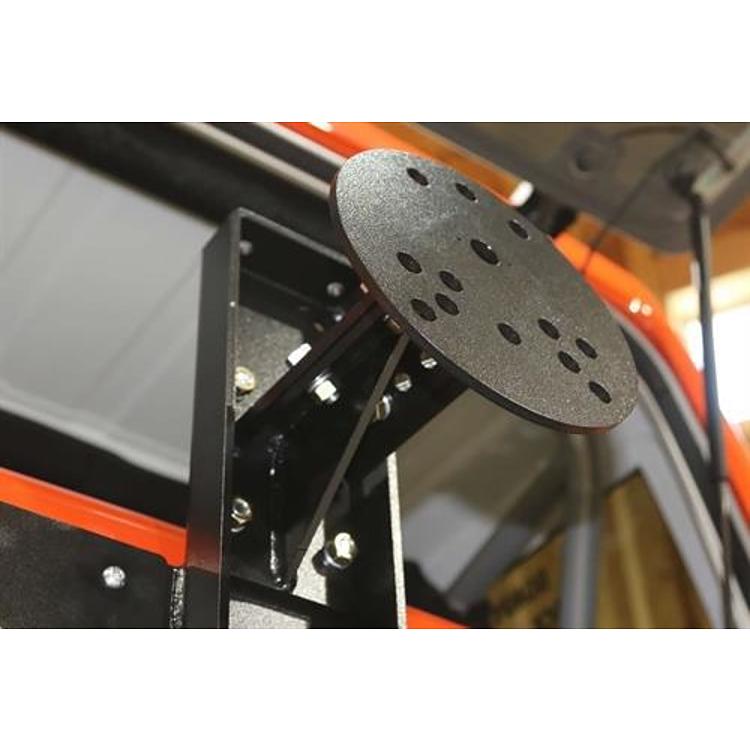

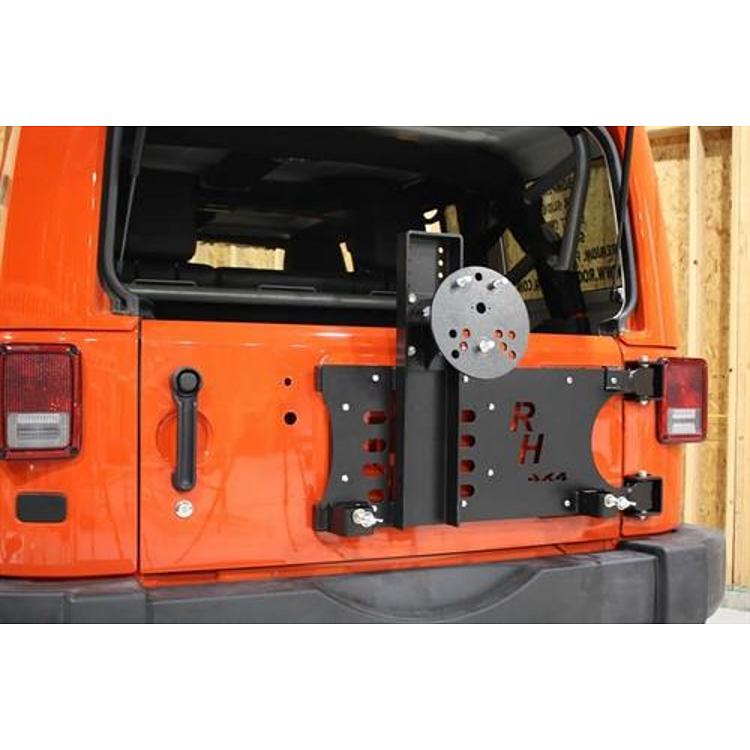

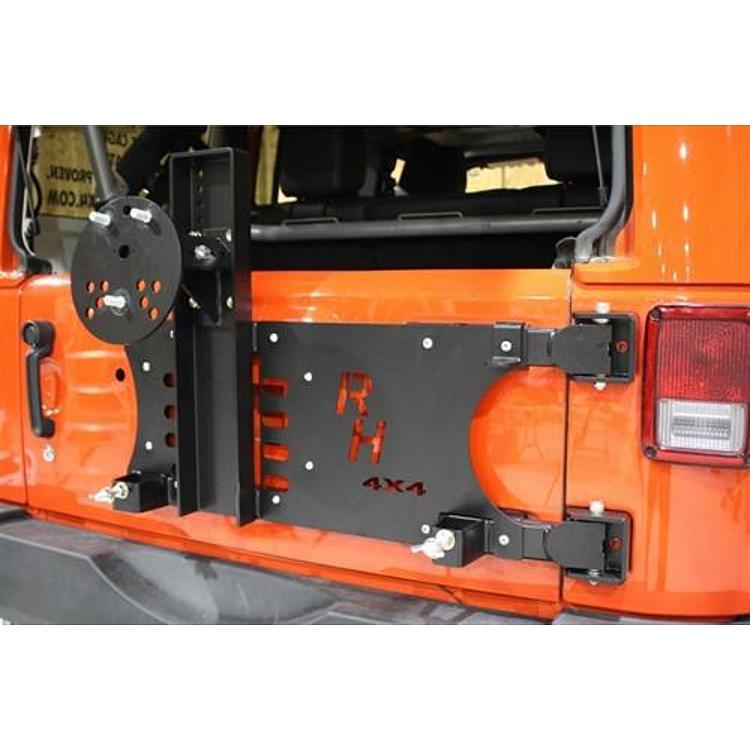

The Rock Hard 4×4 Parts RH-5050 is a Freedom Series body mount tire carrier for 07-Current Jeep Wrangler JK models, 2 and 4 Door. It replaces the limited hinges on the tailgate with a complete tire carrier, so you can run larger than factory tires without adding a bumper-mounted carrier.

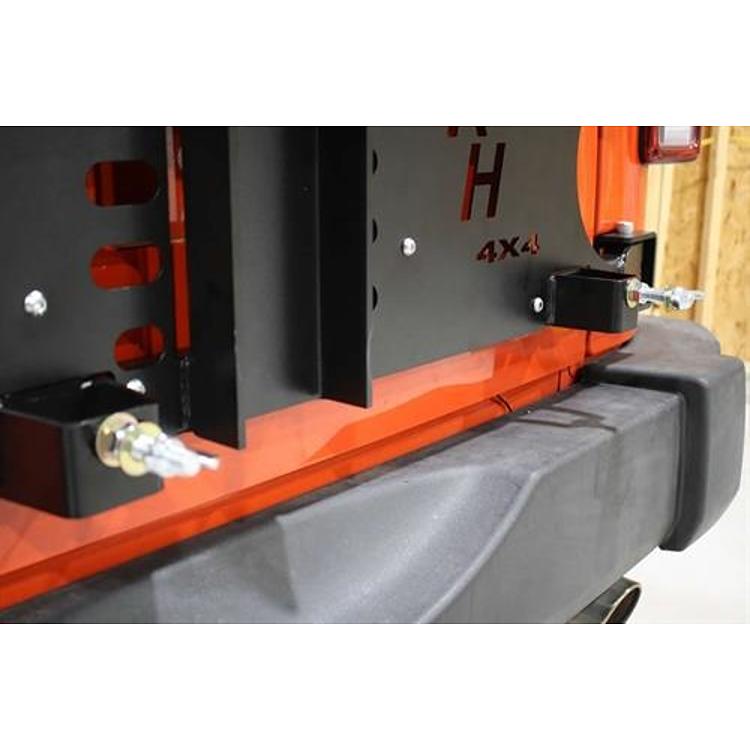

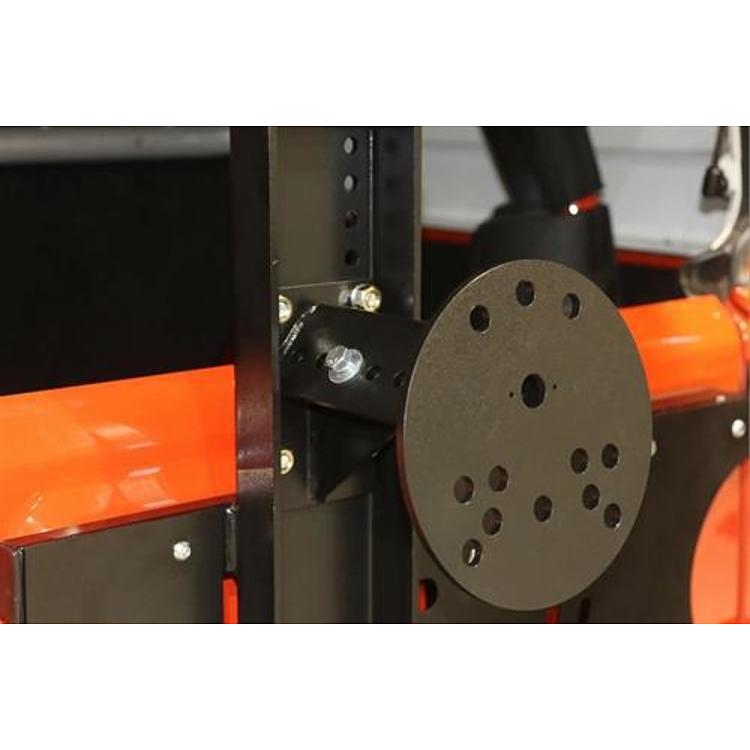

The carrier supports a spare tire up to 37 inch and mounts in place of the tailgate hinges with bolts, requiring no cutting, drilling or welding. The tailgate opens and closes as it does from the factory, operated by the factory handle. Bronze oil lite bushings, 1/2 inch in diameter, sit in 1/4 inch thick steel hinge side mounting brackets secured with 1/2 inch bolts. It is designed to work with aftermarket rear bumpers and factory bumpers.

Key features

  • Replaces the factory tailgate hinges with a complete, extreme duty tire carrier.

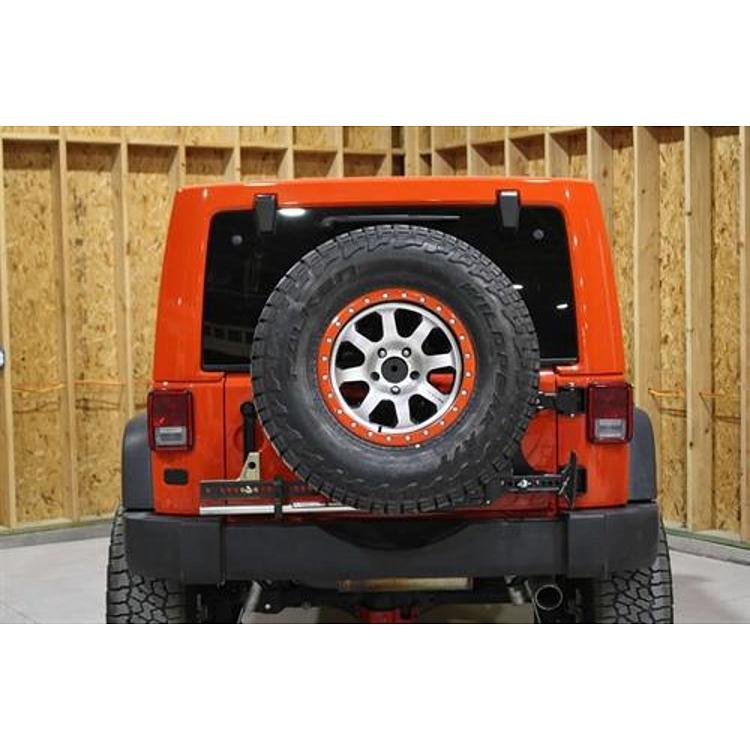

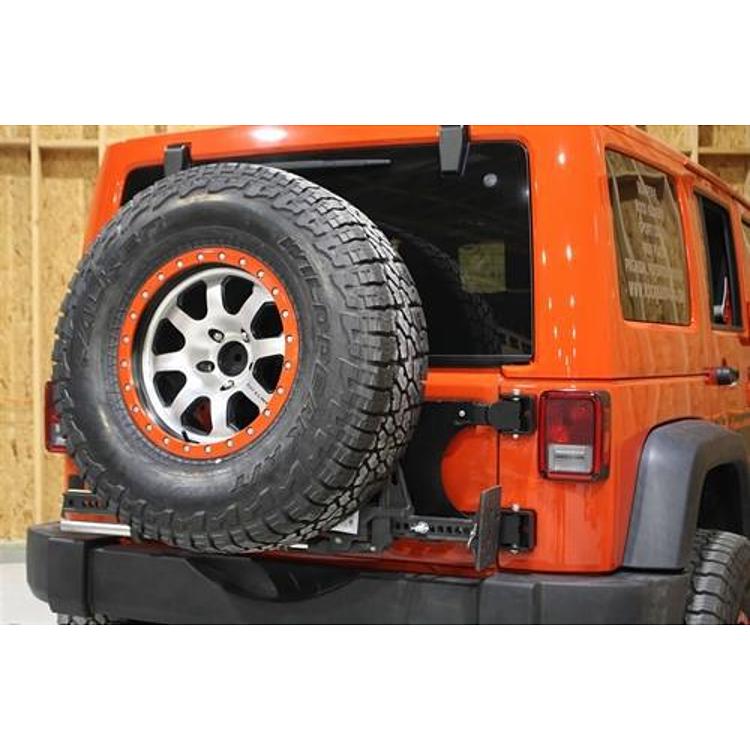

  • Supports up to a 37 inch spare tire.
  • 100% bolt-on installation with zero cutting, drilling or welding.
  • Tailgate operates as factory, using the factory handle.
  • Heavy duty bronze oil lite bushings, 1/2 inch diameter.

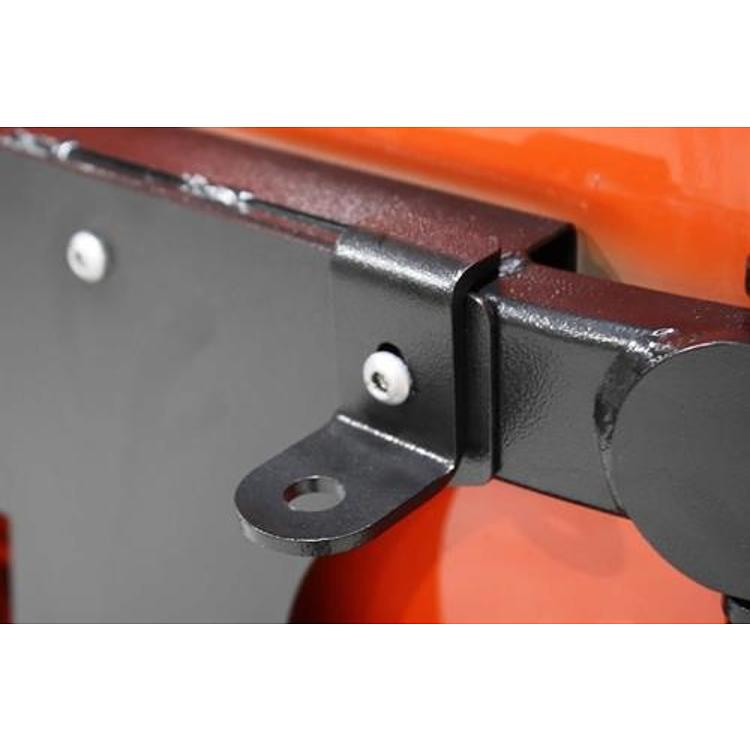

  • 1/4 inch thick steel hinge side mounting brackets secured with 1/2 inch bolts.

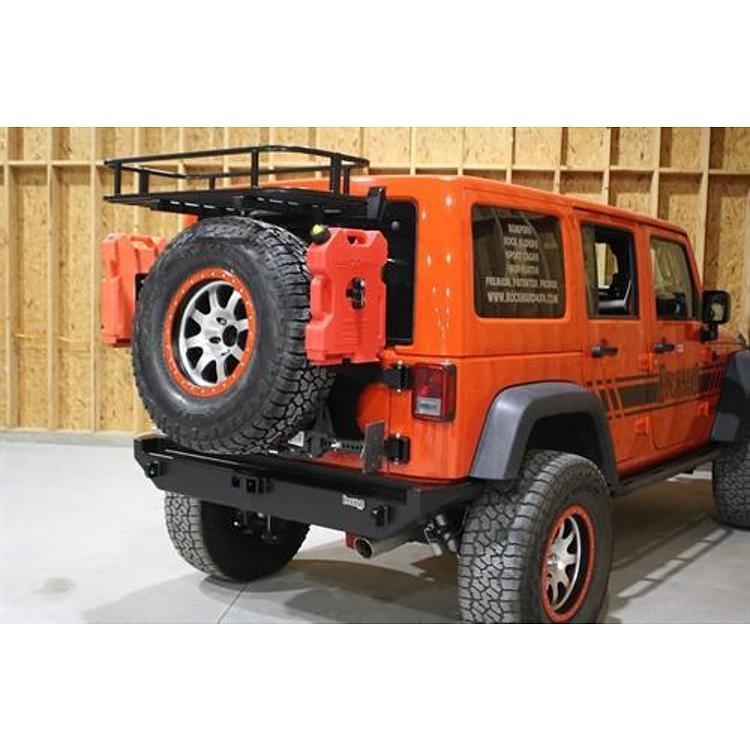

  • Tank mount and cargo basket options.

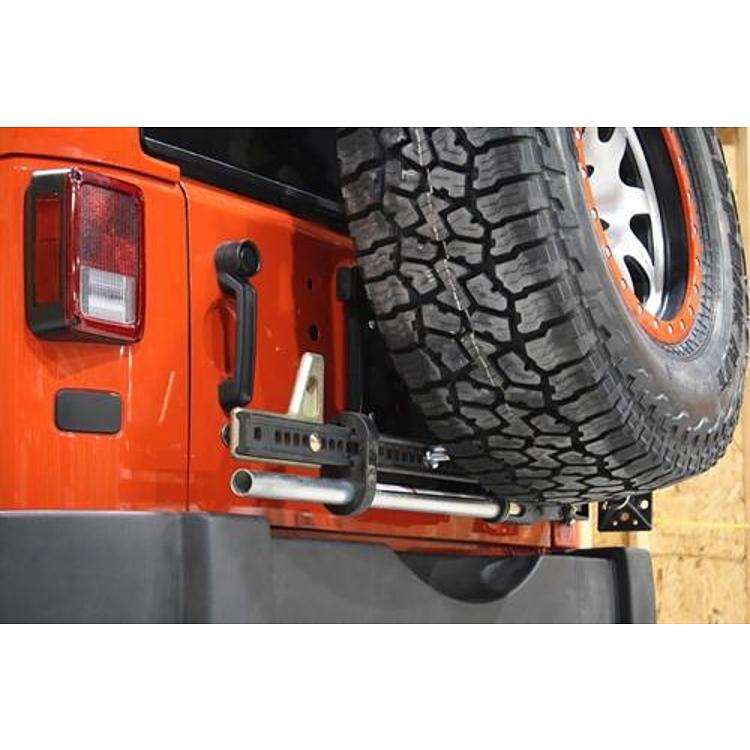

  • Hi-Lift jack mount and CB antenna mount included.
  • Black powder coat finish.

Before you buy

A body mount carrier takes the place of the tailgate hinges, so the full load of the spare and its carrier moves onto the hinge side of the vehicle. Consider how often you plan to carry a full-size tire, since rear weight affects handling and the hinge side brackets take repeated stress. Measure the spare you intend to use and keep it within the carrier’s capacity.

Accessories such as a tank or cargo basket are separate choices, and each adds weight and changes how the tailgate swings. Good bushings and clean hinge pivots keep the gate smooth over time. Keep the tailgate latch adjusted so it closes firmly, and plan periodic checks of the bolts and bushings.

  • Check hinge pivots for play regularly
  • Keep bushings lubricated
  • Recheck tire pressure on the spare before a trip

Specifications

Brand Rock Hard 4×4 Parts
Part number RH-5050
UPC 700008540961
Series Freedom Series
Mount type Body mount, replaces tailgate hinges
Tire capacity Supports up to a 37 inch spare tire
Bushings 1/2 inch diameter bronze oil lite
Hinge side brackets 1/4 inch thick steel
Bolts 1/2 inch
Finish Black powder coat
Warranty Lifetime Warranty
Made in USA

Vehicle fitment

It fits Jeep Wrangler JK models in 2 and 4 door body styles, from 2007 onward.

Wrangler TJ, YJ, LJ and JL models fall outside this fitment. Check your year, model and trim before ordering.

Installation notes

The carrier bolts on as a body mount, so no cutting, drilling or welding is needed. The tailgate operates like the factory unit, using the factory handle to open and shut the carrier. Because the carrier and spare tire load the hinge side, check the bolts and bushings after the first few drives.

What’s included

The features list includes the Hi-Lift jack mount and CB antenna mount, plus the carrier with its bronze bushings and hinge side brackets.

Not included: the spare tire and wheel, and the tank mount and cargo basket, which are mentioned only as options.

SKU: RFPRH-5050 Category:

Specification

Shipping weight 50.00 lbs
Package dimensions 35.00 × 25.00 × 12.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RH-5050 fit a Jeep Wrangler JK?

Yes. It fits 2 and 4 door Jeep Wrangler JK models from 2007 onward. Check your year, model and trim against that before buying.

Does it need drilling or welding?

No. It is a bolt-on install with no cutting, drilling or welding. It replaces the limited tailgate hinges, and the tailgate still opens with the factory handle.

How big a spare tire does it carry?

It supports up to a 37 inch spare tire. Bronze oil lite bushings and 1/2 inch bolts secure the carrier to 1/4 inch thick steel hinge side mounting brackets.

Will it work with an aftermarket rear bumper?

It is a body mount carrier, designed to work with aftermarket rear bumpers and factory bumpers. A Hi-Lift jack mount and CB antenna mount are included.

How do I tell if the bushings need replacing?

Look for play or squeaking when the tailgate is opened and closed, and for visible wear on the bushing surfaces. A tailgate that sags or shifts under load also points to worn bushings. Replace worn bushings before they damage the hinge brackets.
