Rock Hard 4X4 Parts Patriot Series Rear Bumper with Tire Carrier – RH-7050

Rock Hard 4x4 Parts

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rock Hard 4×4 Parts RH-7050 Patriot Series rear bumper with tire carrier
  • Fits the 1999–2004 Jeep Grand Cherokee (WJ)
  • Holds a tire up to 38 inch on a swing-out carrier
  • Integrated class 2 hitch receiver and Hi-Lift jack mount
  • Dual stage latch, rattle free operation and black powder coat
  • Lifetime warranty

Description

Overview

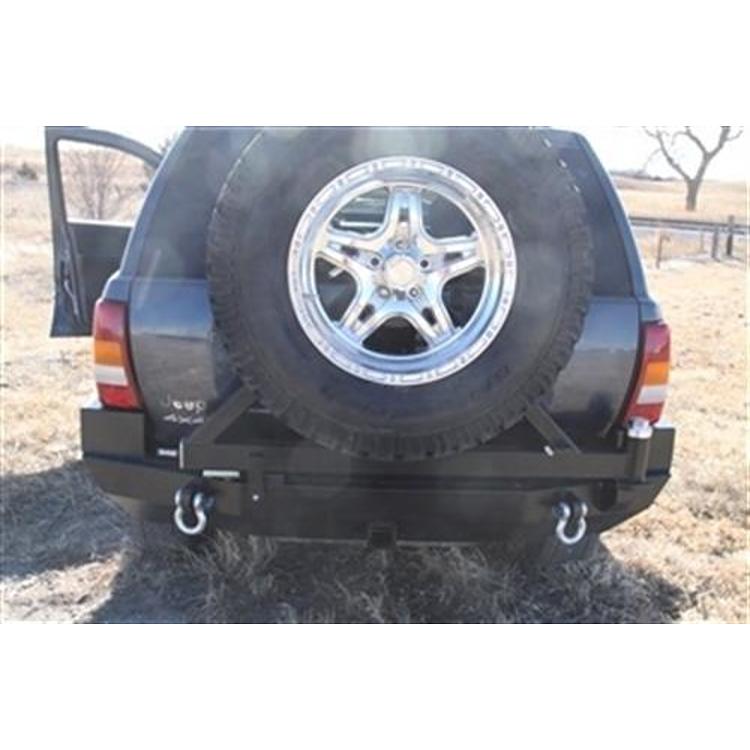

The Rock Hard 4×4 Parts RH-7050 is a Patriot Series rear bumper with tire carrier for the 1999–2004 Jeep Grand Cherokee (WJ). It combines a rear bumper with a swing-out tire carrier that holds a tire up to 38 inch, an integrated class 2 hitch receiver and an integrated Hi-Lift jack mount, so one unit handles towing and spare tire carrying.

The bumper is built from 3/16 inch x 2 inch x 4 inch thick metal tubing with 1/4 inch plate ends and finished in black powder coat. It has a dual stage latch and rattle free operation. It is made in the USA with a lifetime warranty, and all necessary hardware is provided for installation.

Key features

  • Integrated class 2 hitch receiver.
  • Swing-out tire carrier that holds up to a 38 inch tire.
  • Integrated Hi-Lift jack mount with horizontal mount and padlock provision.
  • Two 5/8 inch x 1/2 inch CNC machined D-ring shackle mounts with welded tabs.
  • CB antenna mount.
  • Dual stage latch and rattle free operation.
  • Black powder coat finish.
  • 3/16 inch x 2 inch x 4 inch thick metal tubing with 1/4 inch plate ends.

Towing with a bumper receiver

A hitch receiver built into a rear bumper puts the towing load on the bumper mounting and the frame, so the attachment matters as much as the receiver size. Before towing, confirm the rating for your vehicle and trailer, and use a hitch pin and clip that fit the receiver. Keep the load level, with tongue weight within what the vehicle allows.

A carrier mounted on the same bumper adds weight and leverage to the same structure. When a spare is mounted, the combined load on the latch and mounts increases, so check the latch, bolts and welds after rough use. Keep the receiver clean and free of rust so the pin slides in easily.

  • Inspect the latch before each trip
  • Tighten bolts and check welds after rough trails
  • Use a correctly rated hitch pin and clip

Specifications

Brand Rock Hard 4×4 Parts
Part number RH-7050
UPC 70000774093
Series Patriot Series
Mount location Bumper mount
Tubing 3/16 inch x 2 inch x 4 inch thick metal tubing
Plate ends 1/4 inch
Tire capacity Up to 38 inch tire
Hitch receiver Integrated class 2
Jack mount Integrated Hi-Lift, horizontal, with padlock provision
D-ring shackle mounts Two, 5/8 inch x 1/2 inch CNC machined, welded tabs
Latch Dual stage
Finish Black powder coat
Warranty Lifetime warranty
Made in USA

Vehicle fitment

It fits the 1999–2004 Jeep Grand Cherokee (WJ) in Laredo, Limited, Overland, Special Edition and Sport trims.

Earlier Grand Cherokee (ZJ) and Wrangler models fall outside this fitment. Check your year, model and trim before ordering.

Installation notes

All necessary hardware is provided for installation. Confirm the receiver’s towing limits for your vehicle before towing with it. With a spare tire of up to 38 inch mounted at the rear, check the carrier’s latch and bolts after the first drives.

What’s included

The bumper includes the integrated class 2 hitch receiver, the integrated Hi-Lift jack mount, the CB antenna mount, the two D-ring shackle mounts and all necessary hardware for installation.

Not included: the spare tire and wheel and the Hi-Lift jack itself.

SKU: RFPRH-7050 Category:

Specification

Shipping weight 275.00 lbs
Package dimensions 76.00 × 36.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the RH-7050 fit a Jeep Wrangler?

No. It fits the 1999–2004 Jeep Grand Cherokee (WJ) in Laredo, Limited, Overland, Special Edition and Sport trims. Check your trim before ordering.

Does it include a hitch receiver?

Yes. The bumper has an integrated class 2 hitch receiver, along with an integrated Hi-Lift jack mount and a CB antenna mount. Confirm the receiver's towing limits for your vehicle before towing.

How big a tire does the carrier hold?

It holds a tire up to 38 inch. The bumper is built from 3/16 inch x 2 inch x 4 inch thick metal tubing with 1/4 inch plate ends, and all necessary hardware is provided for installation.

Is there a warranty?

Yes, the bumper carries a lifetime warranty. Keep your proof of purchase in case you need to make a claim.

Can I tow a trailer with the bumper receiver?

Confirm the receiver's towing limit for your vehicle before towing. Use a correctly rated hitch pin and clip, keep the load level, and check the latch and bolts after heavy use. Hitch loads and carried tire weight both affect the bumper.
