Overview

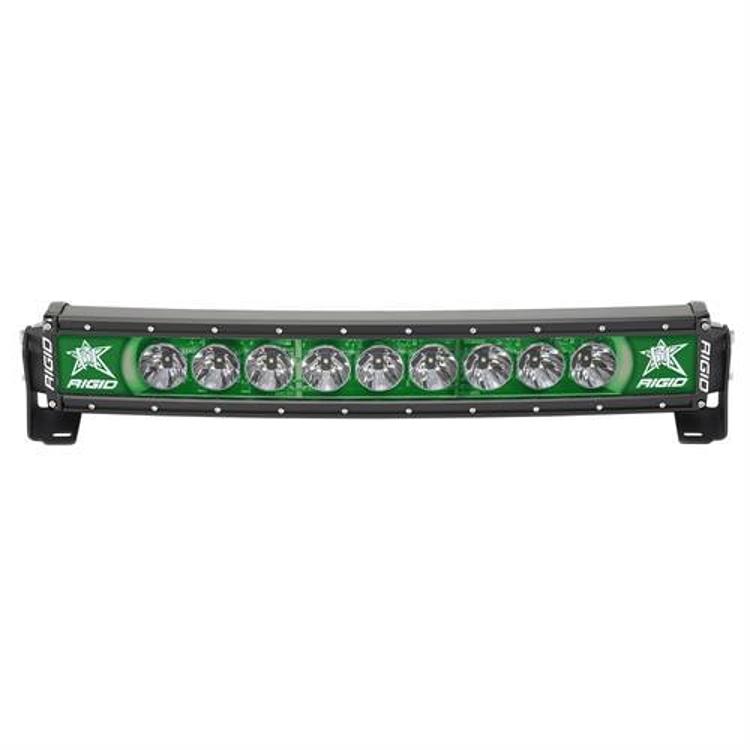

Green back-lighting sets the Rigid Industries Radiance Curve Plus 20 inch light bar, part number 32003, apart within its line. It is an LED bar that brings Rigid’s E-Series styling and construction to a range the brand presents as more attainable for off-road and auxiliary lighting.
The housing is high-grade aluminum alloy, matching the E-Series. Broad Spot optics aim light forward and combine spot and flood beam patterns, while a black exposed printed circuit board is visible inside. Rigid credits its LED updates with up to 4,752 raw lumens on the 10 size of this range. Back-lighting options are white, amber, red, blue and green, and this bar is the green model. Lengths run from 20 to 54 inches.
Key features
- Green back-lighting, with white, amber, red and blue alternatives
- Broad Spot optics that combine a spot and flood pattern
- Forward-projecting, optimized optics
- Rigid cites up to 4,752 raw lumens on the 10 size after LED updates
- Black exposed printed circuit board
- High-grade aluminum alloy housing like the E-Series
- Multi-Trigger Harness and two backlit LED rocker switches, red and blue
Care and inspection
Light bars work in harsh conditions, so a regular check keeps them performing. Wipe the lens after muddy runs, since road film and dust reduce the light the LEDs put out. Check the bracket bolts and the bar housing for cracks after rough trails.
Look at the wiring at the bar end and at the switch end. Connectors should be snug and free of corrosion, and any cable that rubs against metal needs a loom or a new route. Keep spare fuses on hand that match the circuit rating, and replace a blown fuse only after the cause is found. A bar that flickers or dims after a rough trip often points to a loose connection rather than a failed LED.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 32003 |
| UPC | 849774016318 |
| Product line | Radiance Curve Plus |
| Length | 20 inch |
| Back-light color | Green |
| Bulb type | LED |
| Optics | Broad Spot |
| Housing | High-grade aluminum alloy |
| Circuit board | Black, exposed printed |
| Available lengths | 20 to 54 inches |
| Lumen rating | Up to 4,752 raw lumens (10 size) |
| Fitment | Universal fit |
Vehicle fitment
This bar is universal fit, so no particular year, make or model applies. Measure the mounting location and confirm the 20 inch length suits it before deciding where the bar goes.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Each of the two rocker switches controls its own circuit. Wire the bar through a fused relay and review local road-use rules for auxiliary lights before installing it on a street-driven vehicle.
What’s included
Supplied with the bar are the Multi-Trigger Harness and a red and blue pair of backlit LED rocker switches. Look over the box for mounting hardware before starting.
