Overview

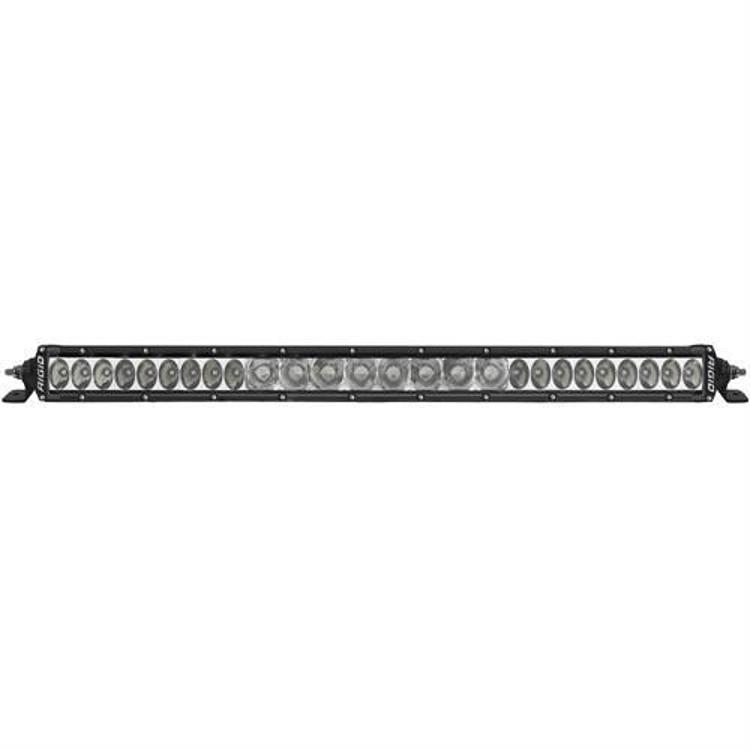

The Rigid Industries SR-Series Pro 20 Inch Light Bar in a spot/drive combo, part number 921314, is a single row LED light bar. Rigid rates it at 132 watts, with 22 LEDs, a 9.43 amp draw and 17424 raw lumens. It is a universal light bar with no vehicle named for it.
The bar is sleek and low profile, under 2 inches tall, and it gives up to 111% more raw lumens than earlier versions. It uses patented Specter optics with a beam distance of 553 m. The housing is extruded aluminum with a black powder coated finish.
Spot and drive combo optics give a focused beam for distance and a wider driving pattern for the close area. The instant on and off feature has no warm-up time. The bar is designed, engineered and assembled in the USA to project light far while drawing little power. Its 20 inch length suits tighter mounting spots.
Key features
- Spot/drive combo beam
- Single row of 22 LEDs
- Under 2 inches tall
- Patented Specter optics
- Instant on and off with no warm up
- Durable polycarbonate lens and extruded aluminum housing
Choosing a mounting spot
Light bar placement affects how well the bar works on and off the road. A front bumper, roof rack or grille mount each changes the angle of the beam, so the spot chosen should give a clear view of the area ahead without the housing blocking the view of other drivers. Spot and drive combo bars are often mounted low and centered, so the focused center reaches farther while the wider drive pattern lights the sides of the trail.
Before drilling, check that the surface is solid and that wiring can run from the bar to the switch without rubbing on moving parts. Light bars take wind and vibration, so bolts and brackets should be re-checked after the first few trail runs. A fuse and relay protect the vehicle’s electrical system, and a bracket rated for the bar’s weight keeps the housing aimed where it was set.
- Check the bracket rating against the bar’s weight
- Keep wiring clear of moving suspension parts
- Re-torque mounting bolts after the first trail runs
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 921314 |
| UPC | 849774031656 |
| Series | SR-Series Pro 20 inch light bar |
| Size | 20 inch |
| Beam pattern | Spot/drive combo |
| Watts | 132 |
| Amp draw | 9.43 |
| LEDs | 22 |
| Raw lumens | 17424 |
| Beam distance | 553 m |
| Lifespan | 50,000+ hours |
| Lens | Clear, durable polycarbonate |
| Finish | Black |
Vehicle fitment
This universal light bar is not built for a specific vehicle, year or model. The 20 inch size is the smallest SR-Series Pro bar, which suits tighter spots, but the mounting surface must still have room for it.
Confirm your vehicle’s year, model and trim before ordering any bracket.
Installation notes
At 9.43 amps, the bar should be fused and run through a relay with a switch. Check local road-use rules for light bars before using the bar on public roads.
What’s included
One 20 inch SR-Series Pro spot/drive combo light bar in black.
