Overview

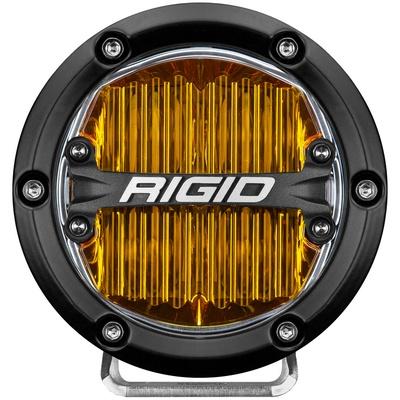

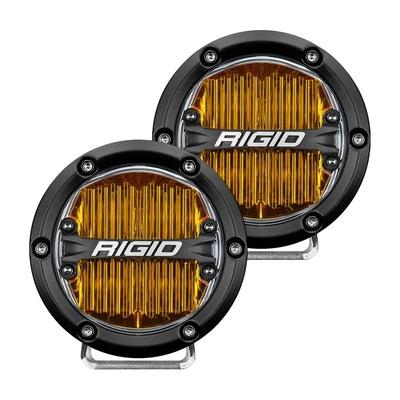

The Rigid Industries 360-Series PRO SAE Fog Light Kit (Yellow), part number 36121, uses selective yellow LEDs in an SAE and DOT compliant 360-Series light. Rigid built the yellow for dust, fog and other low-visibility conditions, and the lights are legal for use on the street.
Selective yellow light is designed to be easier on the eye than white or blue light, which reduces glare and improves contrast. The lights draw 2 amps and are rated for up to 50,000 useful hours. Yellow light also enhances definition, which helps drivers read the road in fog, rain and dust.
Key features
- Selective yellow light for low-visibility driving
- SAE J583 compliant and DOT compliant for street use
- Long range, high intensity beam
- Draws 2 amps
- Up to 50,000 useful hours
- Part of the 360-Series family
Yellow light on the road
Yellow fog lights are used for a specific job: cutting through dust, fog and spray where white light scatters back toward the driver. They do not replace headlights, and they work best in conditions where visibility is poor. Keep them aimed low so the pattern lights the surface in front of the vehicle without reaching oncoming traffic.
Yellow lenses shift the color of the beam, so the lights look different from white fog lamps in daylight. Many drivers pair them with a matching light bar or pod set for a uniform look, though mixed color should be avoided where local rules limit it. Check the lens for chips and haze after gravel roads, since a damaged lens changes both output and color.
A low draw of 2 amps keeps the wiring load light, but the relay and fuse still need to be sized correctly for the harness. Route the wires away from heat and moving suspension parts, and use a grommet where they pass through the body.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 36121 |
| Series | 360-Series |
| Light color | Yellow |
| Beam pattern | SAE |
| Amps | 2 |
| Useful life | Up to 50,000 hours |
| Compliance | SAE J583, DOT |
Vehicle fitment
Universal fit. These are street legal fog lights for any vehicle, so the mounting location and the wiring are what decide the fit.
Check the mounting location and the wiring before installing, since the lights are universal fit and their placement decides the fit.
Installation notes
Use a relay and a switch that match the 2-amp draw. Aim the yellow lights low for fog and rain use, because even street legal lights can cause glare for oncoming drivers if they are set too high.
What’s included
The 360-Series PRO SAE selective yellow fog light kit.
