Overview

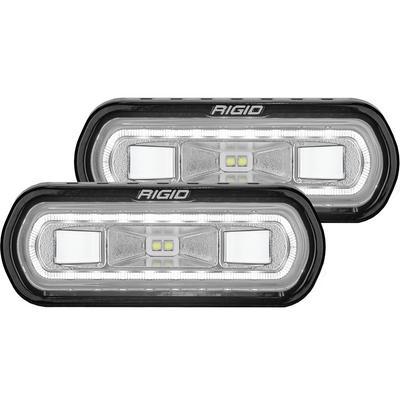

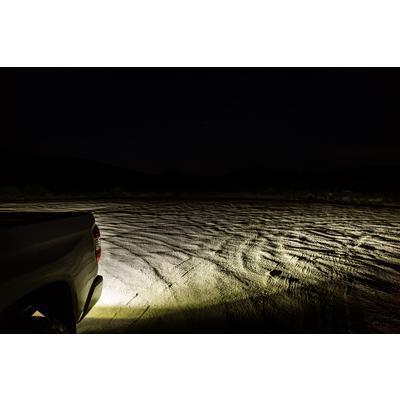

The Rigid Industries SR-L Series Surface Mount LED Spreader Light with white halo, part number 53120, is a surface mounted area light. It gives a broad 120-degree beam to light wide areas around a vehicle, and the white halo provides accent backlighting for a custom look.
The light is rated at 14 watts and 1452 lumens. Its maximum voltage is 36 and its amp draw is 1. The lux reading is 8.40 at 10 m, with beam distances of 57.90 at 0.25 lux and 29 at 1 lux, showing how the light falls off with distance.
Choose a surface mount when the panel behind the light is too shallow for a flush opening, since the housing sits on the face of the panel.
Rigid offers the halo as red, blue, amber or white, and this is the white version.
Key features
- Surface mount design
- White halo backlight
- 120-degree horizontal beam
- Spread beam pattern
- Impact resistant polycarbonate lens over a high-grade aluminum housing
Surface mount placement tips
A surface mount suits panels that are too shallow for a flush opening, or spots where cutting is not practical. Because the housing sits on the panel face, it needs clear space for the body and a straight mounting surface so the light does not rock when the vehicle flexes. Choose a spot where the spread beam covers the work area without being blocked by bars, racks or body edges.
Flying leads need careful routing. Keep joints inside sealed connectors, secure cable runs every few inches, and avoid sharp edges that could cut insulation. Heat, water spray and vibration are the main causes of failed connections, so inspect the leads whenever you clean or service the vehicle.
- Check the panel depth before drilling
- Use a fused supply with a switch
- Seal every joint against spray
- Re-tighten mounting fasteners after rough trails
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 53120 |
| Series | SR-L Series Spreader, surface mount |
| Halo color | White |
| Mounting location | Surface |
| Bulb type | LED |
| Watts | 14 |
| Lumens | 1452 |
| Horizontal beam angle | 120 degrees |
| Beam pattern | Spread |
| Lux at 10 m | 8.40 |
| Beam distance at 0.25 lux | 57.90 |
| Beam distance at 1 lux | 29 |
| Voltage max | 36 volts |
| Amp draw | 1 amp |
| Quantity | Single light |
Vehicle fitment
This is a universal accessory light, and no vehicle, year or model is named for it. Pick a surface and position that give the light a clear view and room for the leads, since the surface mount is what sets its fit.
Confirm your vehicle’s year, model and trim before ordering any bracket or harness.
Installation notes
Keep wire joints inside the connectors or sealed against spray and water. Connect the flying leads to a fused supply, or use Rigid’s wiring harness, part 40300, bought separately, for a plug-in connection. Check local rules for accent and area lighting before using the light on public roads.
What’s included
One SR-L Series surface mount spreader light with white halo and flying leads.
Not included: the RIGID wiring harness, part 40300.
