Overview

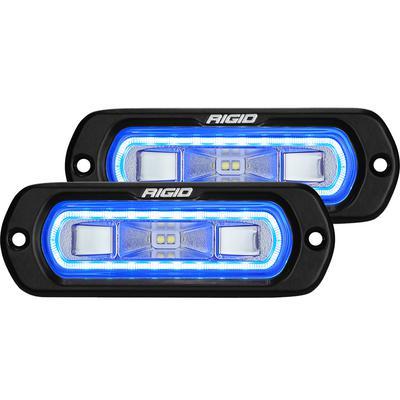

Part number 53221 is the Rigid Industries SR-L Series Flush Mount LED Spreader Light with blue halo. It is a scene light that spreads light across a broad 120-degree horizontal pattern, and the halo backlight adds blue accent lighting to the vehicle.
Rigid rates this light at 14 watts and 1452 lumens, with an amp draw of 1 and a maximum voltage of 36. The lux and beam distance figures are 8.40 at 10 m, 57.90 at 0.25 lux and 29 at 1 lux, which give a sense of how far the light reaches.
Halo backlighting sits behind the lens and glows as an accent, so it is mainly a styling feature separate from the main lighting.
The light is sold as a single unit, so a matched pair needs two.
Key features
- Broad 120-degree beam
- Blue halo backlight
- Flush mount design
- High-grade aluminum housing and impact resistant polycarbonate lens
- Flying leads wiring
Halo lighting and mounting
Halo backlighting is a styling feature that sits behind the lens, so it adds accent light without changing the main beam. A blue halo can look striking on a dark vehicle, but it may suit some setups better than others. Think about where it will be seen from, and whether the accent will be used in traffic or only at camp.
A flush mount needs a clean, level opening and a route for the leads that is free of heat and moving parts. Measure the space behind the surface before cutting, and use sealant around the housing to keep water out. If the lights are used off road, inspect the seal and the wires after each trip, and reconnect any connectors that have worked loose. Fuse the circuit at the power supply so a fault does not overload the vehicle’s wiring.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 53221 |
| Series | SR-L Series Spreader, flush mount |
| Halo color | Blue |
| Mounting location | Flush |
| Bulb type | LED |
| Watts | 14 |
| Lumens | 1452 |
| Horizontal beam angle | 120 degrees |
| Lux at 10 m | 8.40 |
| Beam distance at 0.25 lux | 57.90 |
| Beam distance at 1 lux | 29 |
| Voltage max | 36 volts |
| Amp draw | 1 amp |
| Quantity | Single light |
Vehicle fitment
No vehicle, year or model is tied to this universal scene light. Because the flush mount sits in the surface it is fixed to, pick a spot where it sits flush and the leads can reach.
Confirm your vehicle’s year, model and trim before ordering any bracket or harness.
Installation notes
The flying leads can be wired straight into the electrical system, or the RIGID wiring harness, part 40300, can be bought to make the connection. Keep the leads from being pinched when the panel is fitted, fuse the circuit at the power supply and check local rules for halo lighting before road use.
What’s included
One SR-L Series flush mount spreader light with blue halo and flying leads.
Not included: the RIGID wiring harness, part 40300.
