Overview

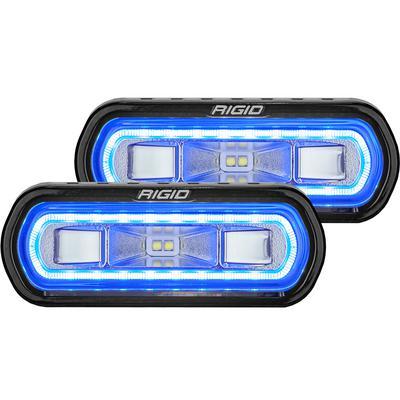

The SR-L Series surface mount spreader light with blue halo, part number 53121, is an area light that mounts on the surface of a vehicle instead of flush in it. Its 120-degree beam lights the wide area around a vehicle, and the blue halo adds accent backlighting.
The light is rated at 14 watts and 1452 lumens, with a maximum voltage of 36 and an amp draw of 1. It reads 8.40 lux at 10 m, with beam distances of 57.90 at 0.25 lux and 29 at 1 lux.
A surface mount stands proud of the panel, so it sits on top of the body rather than inside it. That makes it easier to place where a flush light will not fit.
Key features
- Surface mount design
- 120-degree horizontal beam
- Blue halo backlight
- High-grade aluminum housing
- Impact resistant polycarbonate lens
Surface mount placement
A surface mount is useful where the panel is too shallow for a flush opening. Because the housing stands off the surface, it can catch wind, branches and debris, so position it where it will be protected. Choose a spot with a clear view of the ground and enough space for the housing and cable exit.
Keep the leads away from hot exhaust components and moving suspension, and secure them with clips so they do not swing or rub. A blue halo gives an accent that suits both camp and trail setups. After rough trips, check the mounting hardware and the lens for cracks, and re-seal any connections that have been exposed to water. Clean the lens with a soft cloth to keep the beam clear.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 53121 |
| Series | SR-L Series Spreader, surface mount |
| Halo color | Blue |
| Mounting location | Surface |
| Bulb type | LED |
| Watts | 14 |
| Lumens | 1452 |
| Horizontal beam angle | 120 degrees |
| Beam pattern | Spread |
| Lux at 10 m | 8.40 |
| Beam distance at 0.25 lux | 57.90 |
| Beam distance at 1 lux | 29 |
| Voltage max | 36 volts |
| Amp draw | 1 amp |
| Quantity | Single light |
Vehicle fitment
No vehicle, year or model is tied to this universal scene light. A surface mount sits on top of the panel it is fixed to, so pick a spot with room for the housing and a clear route for the leads.
Confirm your vehicle’s year, model and trim before ordering any bracket or harness.
Installation notes
Keep the leads clear of hot exhaust parts and moving suspension when routing them. The leads can be wired straight into the electrical system, or Rigid’s wiring harness, part 40300, can be bought separately for a plug-in connection. Fuse the power at the power supply and check local rules for halo and area lighting before road use.
What’s included
One SR-L Series surface mount spreader light with blue halo and flying leads.
Not included: the RIGID wiring harness, part 40300.
