Overview
The KC HiLites Cyclone V2 LED 6-Light Rock Light Kit, part number 91041, has six Cyclone lights with amber lenses. It is a universal lighting kit, built as an undercarriage light for off-road use. Each light is rated at 5 watts and 600 lumens and uses a flood pattern.
The Cyclone V2 is a multi-functional, compact auxiliary LED light. It was first designed for off-road racers as an interior dome light and later developed into an all-purpose rock crawling light. Each light measures about 2.2 inch in diameter and 0.53 inch high, which makes it well suited to underbody lighting at night.
Key features
- Six Cyclone V2 LED lights with amber lenses
- Flood beam pattern
- Compact 2.2 inch diameter and 0.53 inch height
- Premium fuse block with ground post and switch
- Six deluxe wiring harnesses in 16 foot, 11 foot and 8 foot lengths

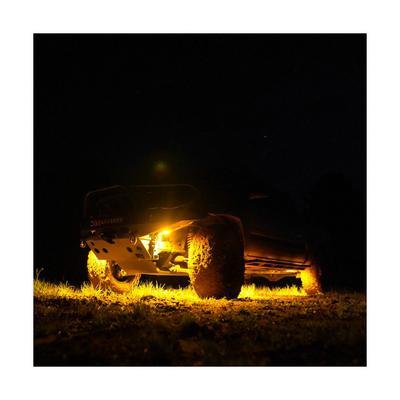

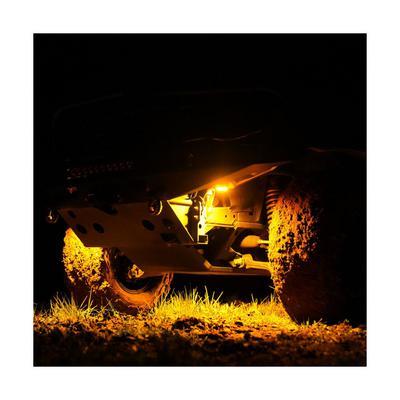

Underbody lighting on the trail
Rock lights mount under the frame, rocker panels and body edges, where they put light on tires, rocks and ledges during slow crawls at night. Placement matters more than brightness. A light aimed at the ground near the tire gives a clearer view of the line ahead than one mounted high and pointed outward. Lights in this position also catch low branches and stumps, so mounting spots should be checked after the first few trail runs.
Amber lenses reduce glare in fog and dust, which is one reason many crawlers pick them. Keep wiring away from moving suspension parts and exhaust heat, and use loom or split conduit where leads cross the frame. Check connections for corrosion after water crossings and mud runs, since a loose ground is a common cause of dim or flickering lights.
- Route leads away from axles and steering links
- Use a fused supply sized to the accessory circuit
- Inspect ground connections after water crossings
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 91041 |
| Lights | Cyclone V2 LED, six lights |
| Lens color | Amber |
| Watts | 5 |
| Lumens | 600 |
| Amp draw | 0.42 |
| Beam pattern | Flood |
| Light diameter | 2.2 inch |
| Light height | 0.53 inch |
| Wiring harnesses | 2 x 16 ft, 2 x 11 ft, 2 x 8 ft |
Vehicle fitment
This is a universal kit with no vehicle, year or model listed. The universal mounts and their hardware go onto the underside of the vehicle, so the mounting spots are what decide fit on your truck or Jeep.
Measure the spot for each light against the 2.2 inch diameter and 0.53 inch height before drilling or fixing anything. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The included premium fuse block with ground post and switch is the core of the wiring, so mount it where the harness lengths reach. Keep the 0.42 amp draw on a fused circuit and check local rules on underbody lighting before driving with the lights on.

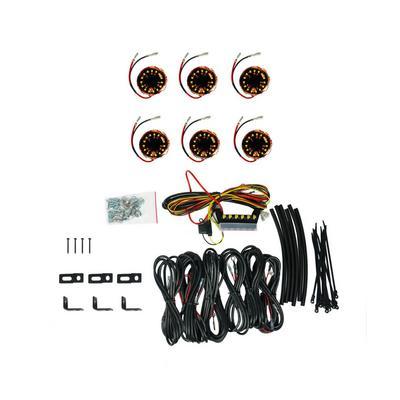

What’s included
Six Cyclone lights, a premium fuse block with a ground post and switch, six deluxe wiring harnesses, universal mounts and installation hardware.
