Overview

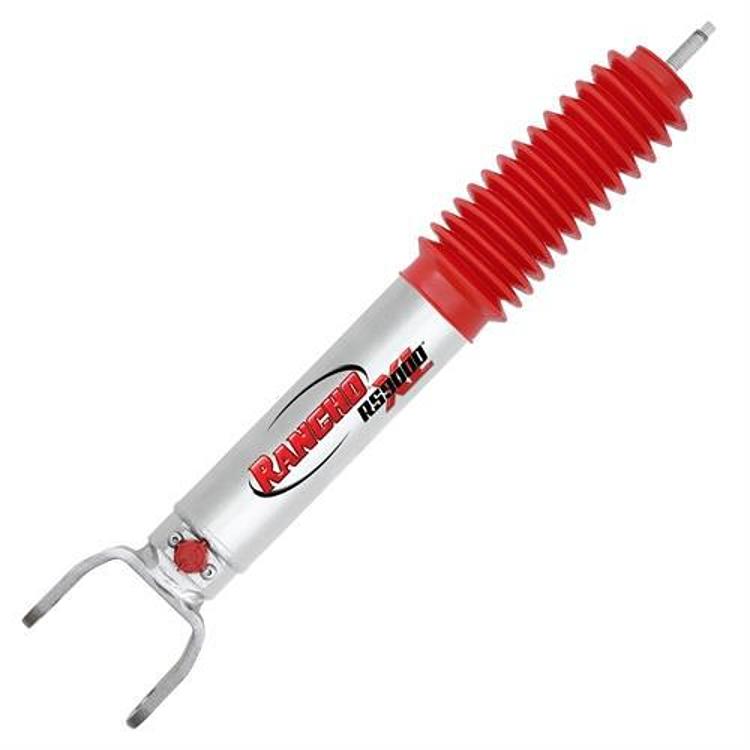

The Rancho RS999309 is a front RS9000XL Series shock absorber for the 2006-2009 Hummer H3 in Alpha, Base, Championship Series and X trims. It is a nitrogen gas charged shock with a 2.75-in. (70mm) body and an 18mm Nitro Carb rod, and it is rated for a 4 in. lift.
It has a 9-position myRide tuning system, red polyurethane bushings and a liquid metallic finish. A protective boot comes with the shock.
Key features
- 9-position myRide tuning
- Nitrogen gas charged
- 2.75-in. (70mm) body diameter
- 18mm Nitro Carb rod
- Liquid metallic finish
- Protective boot included
Front shock setup and steering
The front shocks work with the steering and the front axle to keep tires in contact with the ground. When a front shock fades, the truck may wander on the highway, dive under braking or feel loose over sharp bumps. Matching both front shocks keeps the steering feel even from side to side.
Front and rear shocks are tuned as a pair. Stiffer front damping can slow nosedive, while a softer front setting may feel more comfortable on daily drives. Consider how the rear shocks are set before making large changes at the front, and adjust in small steps.
Inspect front shocks for leaks, cracked boots and worn mounts. Tie rods, ball joints and wheel bearings should be checked whenever a front shock is replaced, since loose parts can mimic shock wear. Wheel alignment may need a check after front suspension work.
- Replace front shocks in pairs
- Keep the protective boot clean and undamaged
- Inspect ball joints and tie rods during a swap
- Recheck alignment after front work
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999309 |
| UPC | 10039703093092 |
| Shock series | RS9000XL Series |
| Position | Front |
| Body diameter | 2.75-in. (70mm) |
| Rod | 18mm Nitro Carb |
| Bushings | Polyurethane (attributes); red urethane (description) |
| Finish | Liquid metallic |
| Tuning | 9-position manual/remote myRide |
| Charge | Nitrogen gas charged |
| Lift height | w/4 in. Lift |
| Fitment type | Direct Fit |
| Warranty | Limited lifetime |
Vehicle fitment
It is a direct fit for the 2006-2009 Hummer H3 in Alpha, Base, Championship Series and X trims.
Hummer H3 model years 2010 and later and other Hummer models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The protective boot is included with this shock. No other items are mentioned for the package.
