Overview

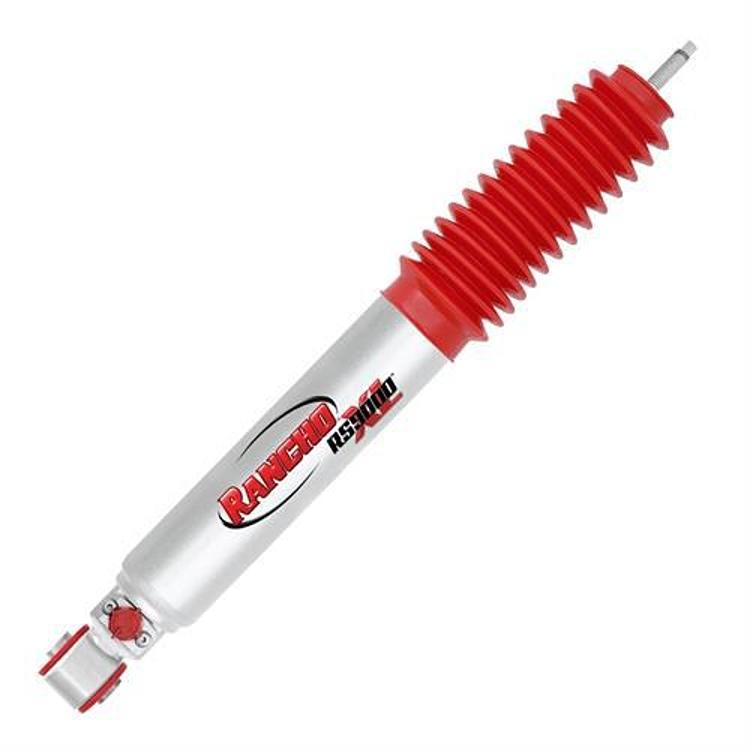

The Rancho RS999283 is a front RS9000XL Series shock absorber rated for a 4 in. lift on the 2002–2005 Dodge Ram 1500 in the Laramie, SLT and ST trims. It is a nitrogen gas charged design with a 2.75-in. (70mm) body and an 18mm chrome rod.
The myRide system adds nine tuning positions that can be adjusted manually or by remote. Red urethane bushings, a liquid metallic finish and a protective boot round out the unit, which the fitment data marks as direct fit.
Key features
- Rated for a 4 in. lift on matching Ram 1500 trucks
- Front position with direct-fit mounting
- Nine myRide positions, manual or remote
- Nitrogen gas charged 2.75-in. (70mm) body
- 18mm chrome rod
- Red urethane bushings
- Protective boot included
Lift rating and front setup
A front shock works with the steering and suspension geometry, so its lift rating matters. When a truck has a lift, the shock is extended further, and a unit matched to that height keeps travel and damping predictable. Measure your current front height and compare it with the rating before ordering, since an unmatched shock can bottom out or feel stiff.
Front components wear together. Upper mounts, bushings and steering linkage affect how a new shock feels, so inspect them when the old shock comes off. Replacing front shocks in pairs keeps steering and braking balanced, and tire wear is a useful check for alignment after the job.
- Measure front height on both sides
- Inspect upper mounts for cracks
- Check steering play after installation
- Recheck bolts after the first few drives
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS999283 |
| UPC | 10039703092835 |
| Shock series | RS9000XL |
| Position | Front |
| Fitment type | Direct fit |
| Lift rating | 4 in. lift |
| Body diameter | 2.75 in. (70mm) |
| Rod diameter | 18mm chrome |
| Tuning | 9-position manual/remote (myRide) |
| Gas charge | Nitrogen, gas charged |
| Finish | Liquid metallic |
| Bushings | Red urethane |
| Boot | Protective boot included |
Vehicle fitment
It is a front shock with a 4 in. lift rating for the 2002–2005 Dodge Ram 1500 in Laramie, SLT and ST trims.
Other Ram 1500 trims from these years, along with Ram 2500 and 3500 trucks, fall outside this fitment. Check your year, model and trim against your truck before ordering.
What’s included
The protective boot comes with the shock. Compare the parts you received with your installation steps before starting.
